Product category: Emerson DeltaV™ S-series Electronic Marshalling System

Product status: New and Original

Tariff code: 85371091

Product description:

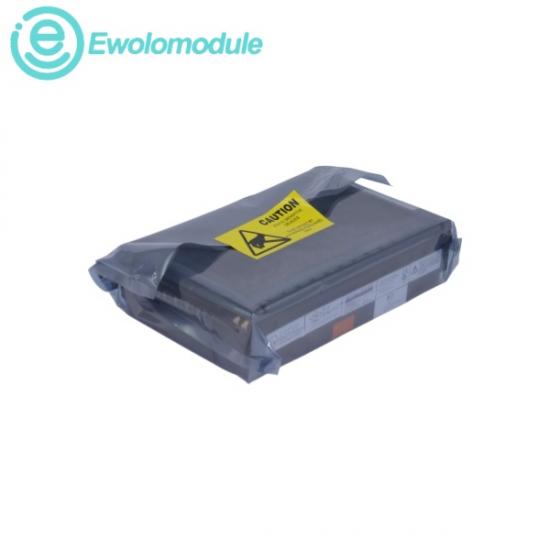

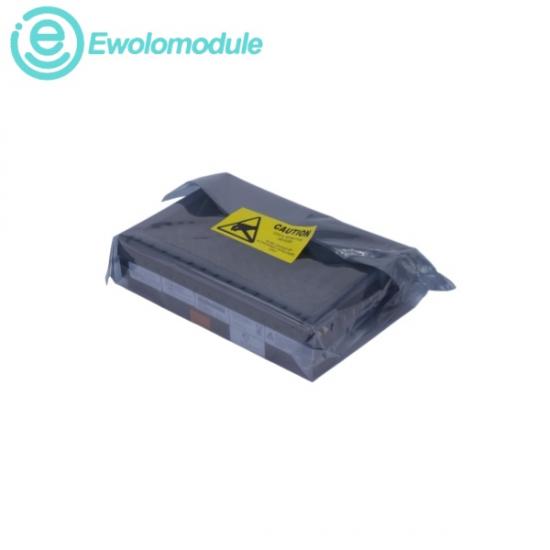

Emerson KL4201X1-BA1 CHARM Baseplate

The Emerson KL4201X1-BA1 is a 12-slot CHARM baseplate for DeltaV Electronic Marshalling. This rugged, conformal-coated Emerson KL4201X1-BA1 platform safely distributes 24VDC field power and 6.3VDC bus power within hazardous automated environments.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

✦ Basic Product Information

The Emerson KL4201X1-BA1 is a ruggedized, modular baseplate designed to act as the primary mechanical and electrical mounting platform for Characterized I/O Modules (CHARMs) within the DeltaV process automation ecosystem. Operating as a core pillar of Electronic Marshalling, this hardware eliminates traditional, complex cross-wiring by enabling single-channel I/O granularity and a fully flexible layout. The baseplate features integrated internal power buses and communication paths that securely bridge the individual field-level modules directly to a centralized CHARM I/O Card (CIOC).

ü CHARM Bus Power Rating: Operates at 6.3 V DC with a maximum continuous current of 4 A

ü Field Circuit Power Rating: Operates at 24 V DC with a maximum continuous current of 10 A

ü Main Input Voltage Range: Acceptable power supply window spans from 18 to 32 V DC

ü Maximum Power Consumption: Rated at up to 50 W under full multi-slot operation

ü Backplane Isolation Capacity: Features a high-voltage dielectric isolation barrier rated at 1500V AC

ü Ambient Operating Temperature: Broad industrial window certified from -40 °C to +70 °C (-40 °F to +158 °F)

ü Storage Temperature Range: Tolerates warehouse or passive enclosure environments from -40 °C to +85 °C

ü Relative Environmental Humidity: Approved for 5% to 95% non-condensing continuous placement

✦ Field Applications

(1) Electronic Marshalling Cabinets: Replaces massive traditional field wiring cabinets in oil, gas, and chemical refineries, allowing engineers to connect any field wire (analog, digital, RTD) to any slot without physical cabinet rewiring.

(2) Distributed Field Junction Boxes: Installed directly in remote outdoor areas or processing units adjacent to machinery, lowering hardware costs by reducing the length of multi-core home-run cabling.

(3) Hazardous ATEX Zone 2 Environments: Deployed safely in areas with potential gaseous or vapor risks (such as petrochemical storage facilities or offshore platforms) due to its specialized non-sparking electrical design.

(4) Mass Flow Metering and Substation Automation: Mounted alongside flow lines and liquid transfer matrices to consolidate discrete instrumentation loops back to the main DeltaV controllers.
