Product Overview

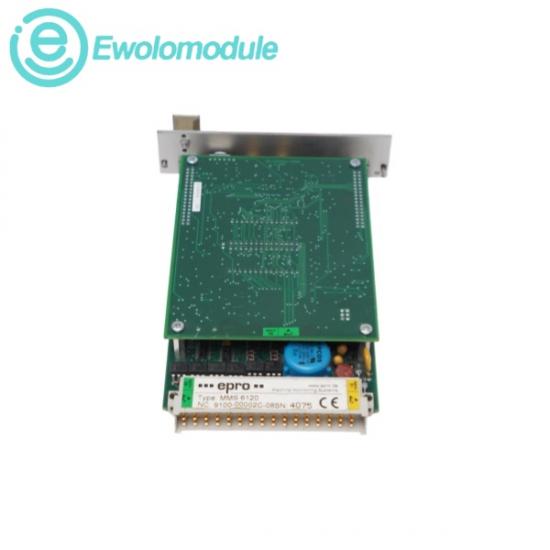

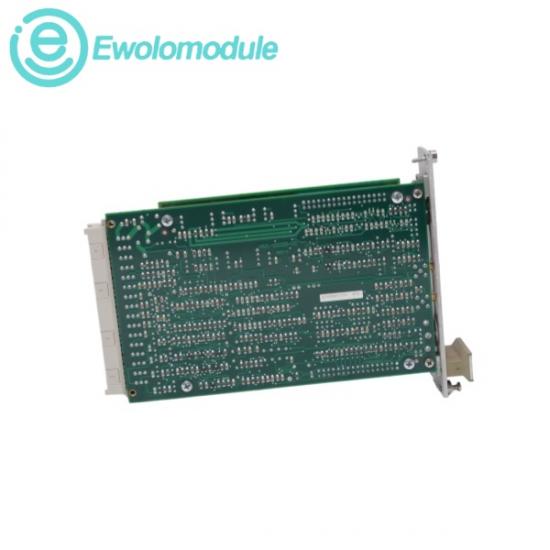

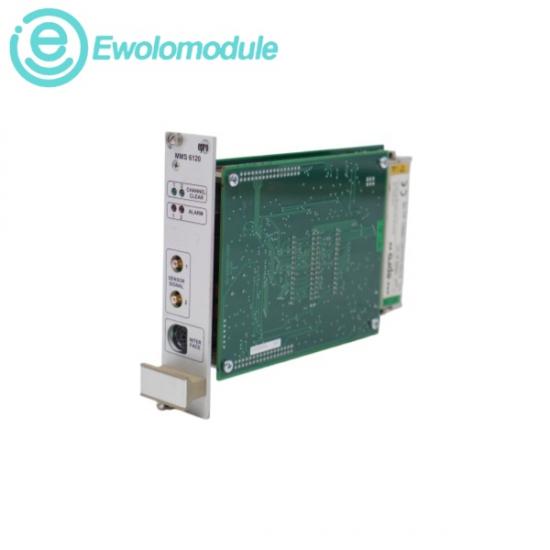

The EPRO MMS6120 is an industrial-grade, microprocessor-based dual-channel monitoring module engineered to evaluate the absolute bearing housing vibration of critical rotating assets. Operating as an autonomous, hot-swappable card within the centralized MMS 6000 rack architecture, it directly interfaces with electrodynamic velocity transducers to convert continuous physical casing deflections into micro-precision electronic telemetry.

(1) Supply Voltage Limits: Redundant input bus rated for 18V to 31.2V DC

(2) Current & Power Footprint: Draws a maximum current of 250 mA at 24V DC

(3) Frequency Response Range: Standard signal scanning spans from 10 Hz to 1,000 Hz

(4) Buffered Current Outputs: Dual independent, isolated 0–8 mA analog outputs

(5) Operating Ambient Temperature: Engineered to withstand severe runtime environments ranging from 0°C to +65°C

(6) Storage Temperature Limits: Rugged transport baseline spanning from -30°C to +85°C

Industrial Applications

ü Turbomachinery Casing Diagnostics: Deployed as a primary safety boundary to track absolute structural casing vibrations on heavy industrial steam, gas, and hydro turbines.

ü Rotary Asset Protection Lines: Implemented directly into large-scale plant air compressors, massive ventilation fans, centrifugal pumps, and heavy industrial gearboxes.

ü Power and Petrochemical Facilities: Integrated within high-availability plant networks where real-time API 670-compliant vibration alerts prevent multi-million-dollar machine failures.

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
