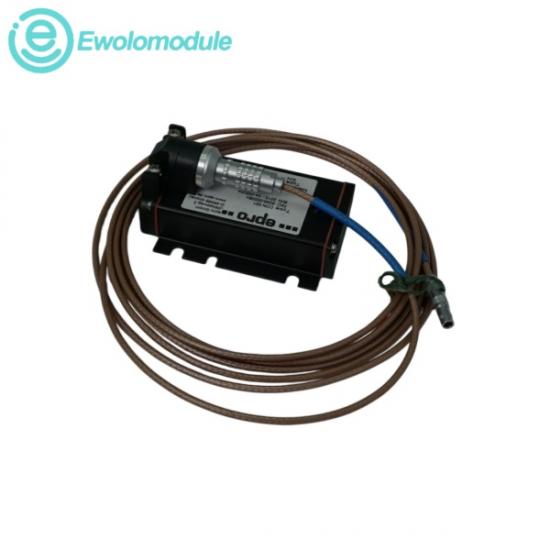

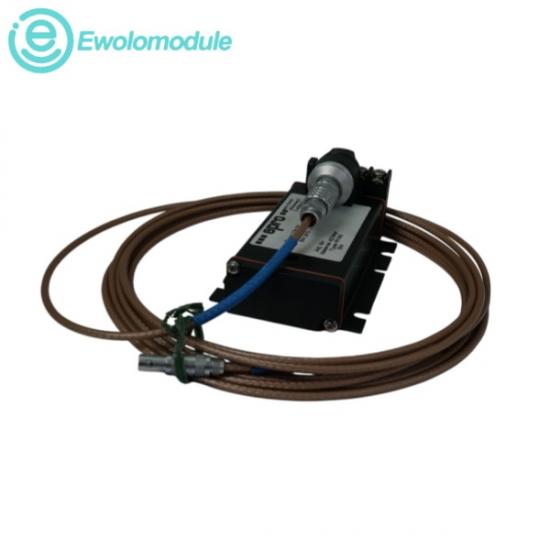

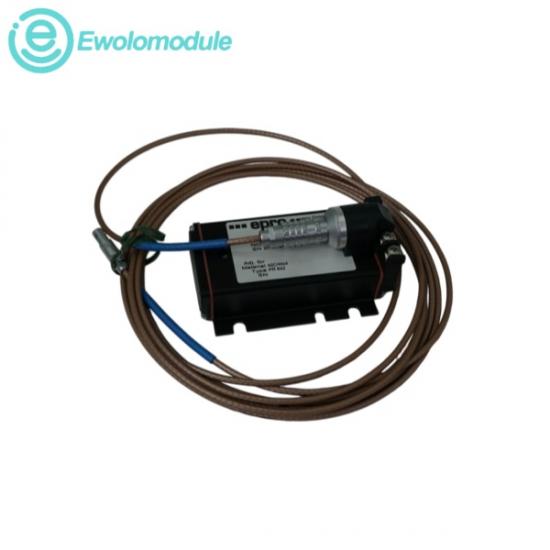

The EPRO PR642 CON021 is a high-precision, non-contact industrial measurement system designed to track relative mechanical movement. The PR642x proximity probe generates a high-frequency electromagnetic field directed at a moving conductive rotor shaft. As the shaft shifts or vibrates, it modulates the magnetic eddy currents, causing impedance changes that the connected CON021 Signal Converter interprets. The converter standardizes these raw voltage fluctuations into a calibrated, highly accurate analog output.

System Dynamic Frequency Response (-3 dB):

0 to 20,000 Hz

Converter Signal Rise Time:

< 15 µs

Nominal Supply Input Voltage Range:

-23 VDC to -32 VDC

Calibrated Voltage Output Range (Option A):

-4 VDC to -20 VDC

Alternative Calibrated Output Range (Option B):

-2 VDC to -18 VDC

Converter Ambient Operating Temperature:

-30°C to +100°C (-22°F to +212°F)

Industrial Applications

Typical Scenarios

Radial Shaft Vibration Tracking:

Monitors continuous shaft orbit movement inside oil-filmed sleeve bearings to identify rotor imbalance or mechanical loosening.

Rotational Speed & Key Phase Referencing:

Targets timing notches or tooth wheels on a rotor to calculate highly stable phase angles and machine RPM.

High-Value Power Generation Assets:

Implemented on main utility steam turbines, industrial gas turbines, and hydro-electric generator assemblies to coordinate emergency safety trips.

Heavy Petrochemical Infrastructure:

Installed on critical multi-stage compressors, high-pressure process pumps, and ventilation fans to support continuous machine protection.
