Quick Details

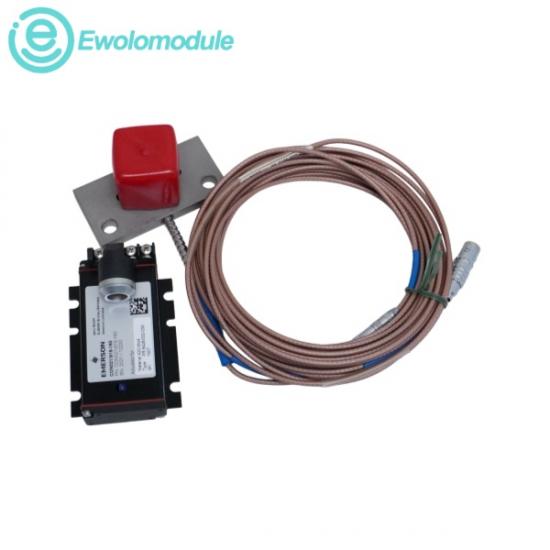

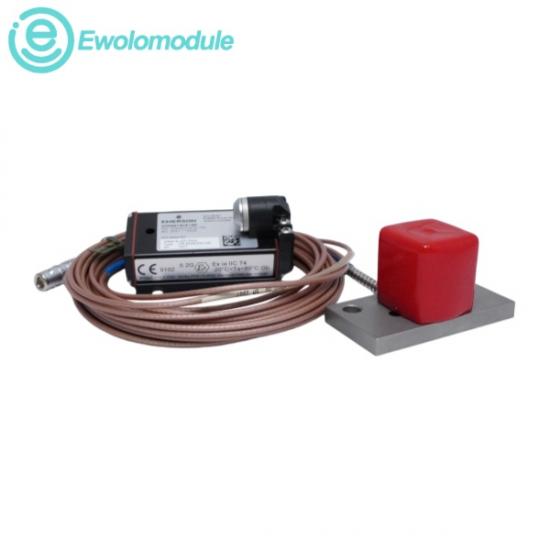

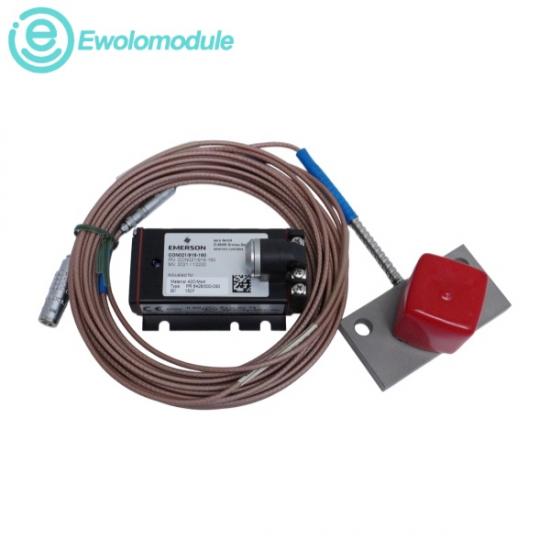

The EPRO PR6426/000-030 CON021 Eddy Current Sensor System is an integrated, high-precision industrial measurement solution configured to capture mechanical displacement without physical contact. It consists of a large-format 32mm electromagnetic eddy current probe head and a rugged CON021 analog signal converter. By emitting high-frequency magnetic fields against target rotating surfaces, the sensor detects microscopic variations in shaft positioning. The CON021 terminal module normalizes these raw impedance fluctuations into precise analog signals, providing real-time telemetry directly to distributed monitoring systems.

l Probe Diameter: Large-format 32 mm heavy-duty sensor face.

l Measuring Range: Generous static measuring envelope of ±4.0 mm.

l Frequency Range: Dynamically responsive up to 0 to 20,000 Hz.

l Rise Time: Extremely low signal propagation latency of less than 15 µs.

l Operating Supply Voltage: Typically powered via a continuous industrial window of -24 VDC.

l Current Draw: Low standby loop current operational layout, typically within 10 mA to 30 mA.

l Operating Temperature (PR6426 Probe): Highly resilient across hazardous, high-heat locations from -35°C to 175°C.

l Operating Temperature (CON021 Converter): Rated for protective equipment cabinets from -30°C to 100°C.

Product Applications

l Large Turbomachinery Monitoring: Specifically optimized to track radial vibration, absolute axial displacement, and rotor expansion on massive steam, gas, and hydro turbines.

l Thrust Bearing Protection: Constantly audits absolute shaft position clearances on heavy industrial compressors, massive cooling fans, and high-capacity pumps to prevent catastrophic mechanical failure.

l Rotor Eccentricity Verification: Monitors structural shaft bowing or warp parameters during low-speed turbine startup phases (barring gear speed operations).

l Speed and Phase Referencing: Detects notches, keyways, or pulse wheels on huge shafts to establish machine timing, exact phase orientation, and RPM calculations.

Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
