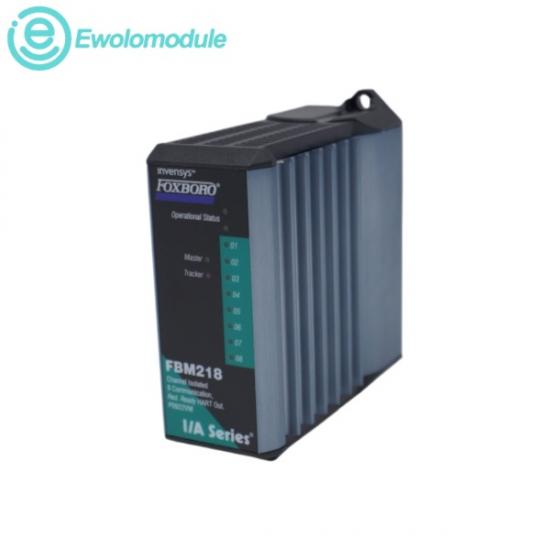

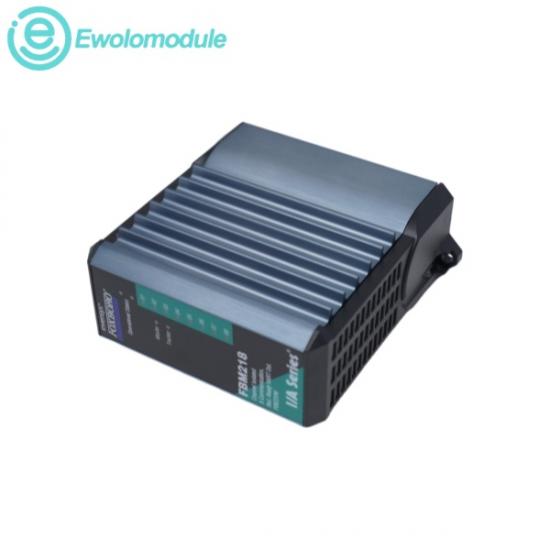

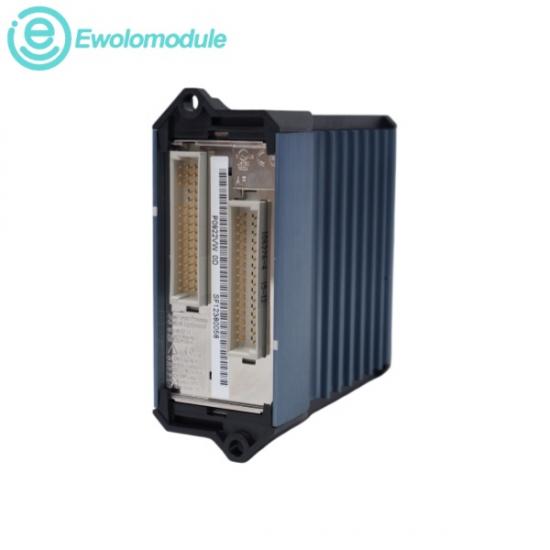

The Foxboro FBM218 is an 8-channel, isolated analogue output interface card built for high-integrity distributed control infrastructures. Acting as an intelligent field device host, the module outputs 8 distinct 4 to 20 mA signals, simultaneously superimposing a high-speed digital Frequency Shift Keying signal to execute bi-directional HART communication data packages. A pair of these modules integrates into a specialized baseplate to deliver Fieldbus Module level redundancy, functioning in an active Master-Tracker configuration.

Number of Signal Channels:

8 individual, channel-to-channel isolated output lines

Supported Input Signals / Analog Loop:

Standard 4 to 20 mA analog output signals

Internal Module Communication Speed:

Synchronized over a redundant 2 Mbps HDLC fieldbus connection

Galvanic Protection Rating:

Optical and transformer isolation up to 600 VAC for 1 minute

Ambient Operating Temperature:

-20°C to +70°C (-4°F to +158°F) continuous module rating

Relative Operating Humidity:

5% to 95% (Non-condensing environment state)

Industrial Applications

Typical Scenarios

Dosing Pumps & Actuators:

Regulates continuous additive injection loops while gathering run-time hours and diagnosis alerts from field slave instrumentation.

Control Valve Positioners:

Direct connection to pneumatic and electro-hydraulic smart valve positioners, driving physical valve travel stems while querying internal seal deterioration metrics via the HART link.

Power Generation & Utility Infrastructure:

Installed inside gas and steam turbine enclosures, balancing boiler feed pump regulations, and routing fuel actuator feedback data to central control screens.

Pulp, Paper, & Pharmaceutical Mills:

Coordinates raw batch flow regulations, line tension controls, and automated multi-product mixing recipes with zero trace data loss.
