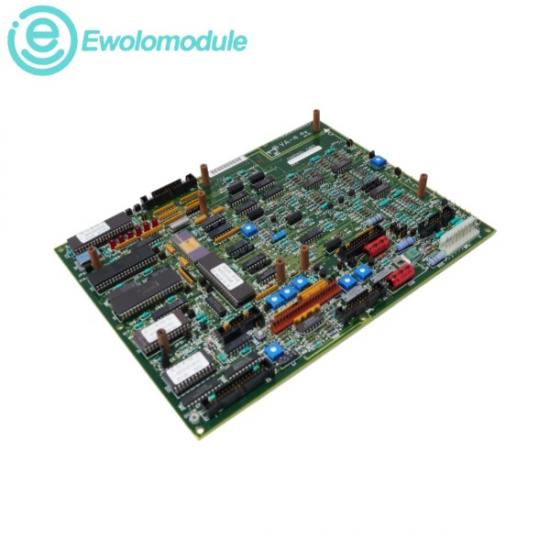

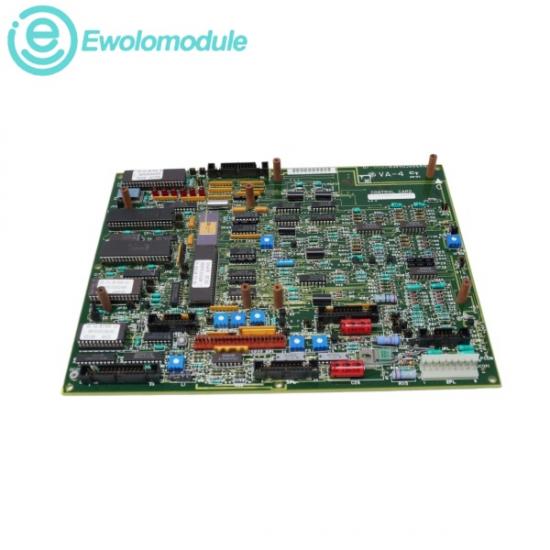

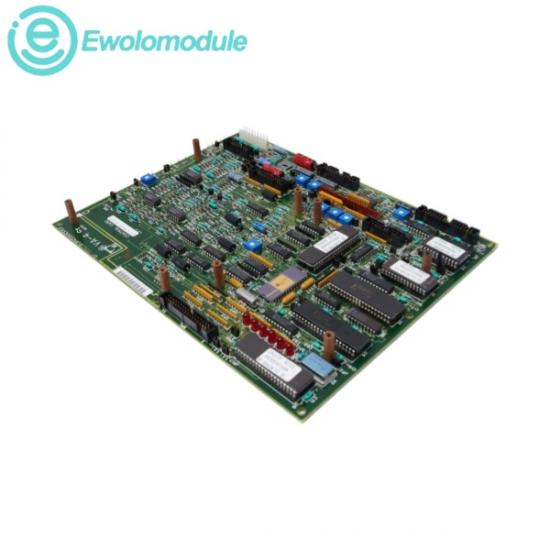

The GE 531X300CCHBDM3 is a large printed circuit board that functions as a specialized control board for industrial drive systems. Operating as the core regulator board within the VA-4 automation architecture, it acts as a high-speed command processor that reads real-time motor diagnostic variables, computes system control loops, and issues gating triggers to silicon-controlled rectifiers (SCRs) to ensure smooth torque generation and dynamic speed velocity optimization. It is engineered with robust materials to withstand harsh industrial conditions, ensuring long-term reliability and minimal maintenance requirements.

² Logic Supply Voltage: Receives standard +5V DC, +15V DC, and -15V DC lines

² Operating Temperature Range: Standard cabinet environmental limits from 0°C to +50°C (+32°F to +122°F)

² Storage Temperature Index: -40°C to +70°C (-40°F to +158°F)

² Relative Operational Humidity: 5% to 95% non-condensing moisture index

(1) DC300 Drive Logic Execution: Serves as the central computing unit regulating processing commands and logic equations inside specialized General Electric drive chassis.

(2) Industrial Motor Velocity Control: Regulates multi-phase electrical excitation loops to optimize real-time performance variables across massive steel rolling mills and printing presses.

(3) System Diagnostic Monitoring: Continuously cross-references runtime parameters to trigger automated protective faults using its integrated status indicator interface.
