Product Overview

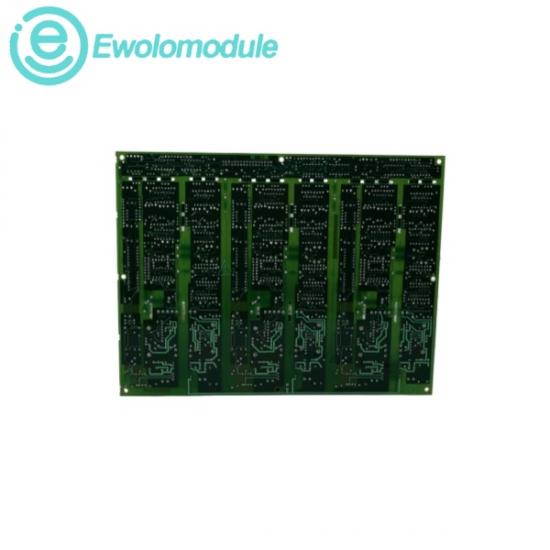

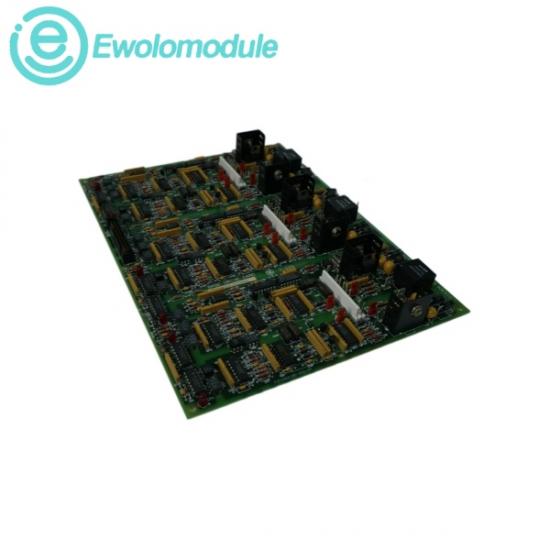

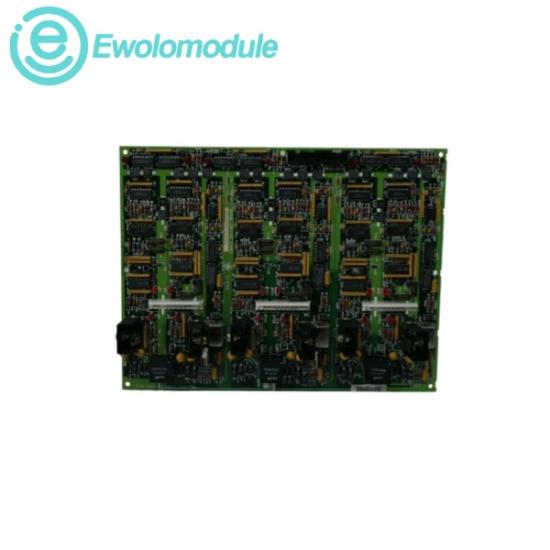

The GE 531X304IBDANG1 F31X304IBDAMG1 is a component-dense industrial base drive circuit board engineered to manage core gating functions in power conversion drives. Designed as a crucial component for legacy motor drive panels, this board features six built-in heatsinks, high-power transistors, and six top-edge red LED status indicators to monitor signal processing.

u Logic Supply Voltage: 24V DC (nominal input rail)

u Control Outputs: 0 to 10V DC analog output signaling

u Connectivity Ports: Three 8-pin vertical header blocks and one 2-pin interface edge connector

u Thermal Dissipation: Active management via 6 integrated metal heatsinks

u Operating Temperature: 0°C to 55°C (32°F to 131°F standard factory environment)

Product Applications

² SCR and Thyristor Gate Firing Control: Directly regulates the precise firing angles of silicon-controlled rectifiers (SCRs) and thyristor bridges. It translates low-voltage logic pulses from the main CPU into high-energy current pulses needed to safely trigger heavy power electronics in 3-phase systems.

² Heavy-Duty Industrial Motor Speed Regulation: Deployed in high-horsepower motor management applications, including large paper mill winders, steel mill rolling tables, and industrial extrusion lines. It ensures smooth torque control, consistent acceleration profiles, and dynamic braking execution under variable loads.

² Pulse Width Modulation (PWM) Signal Conditioning: Provides signal isolation, amplification, and structural filtering for PWM switching sequences. It prevents high-frequency electrical noise and voltage spikes generated by the motor from feeding back into and damaging sensitive PLC logic circuits.
