Introduce

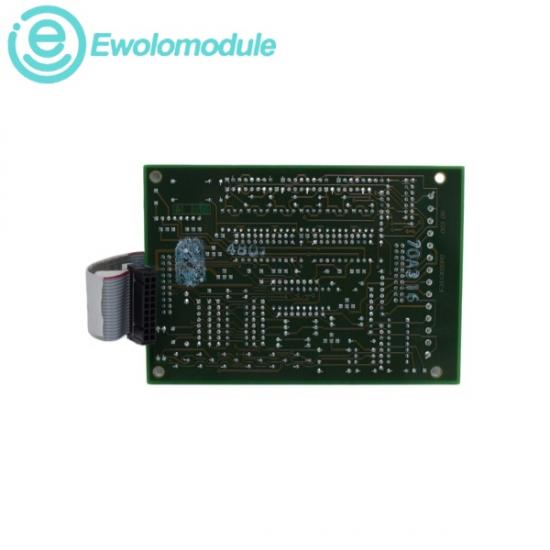

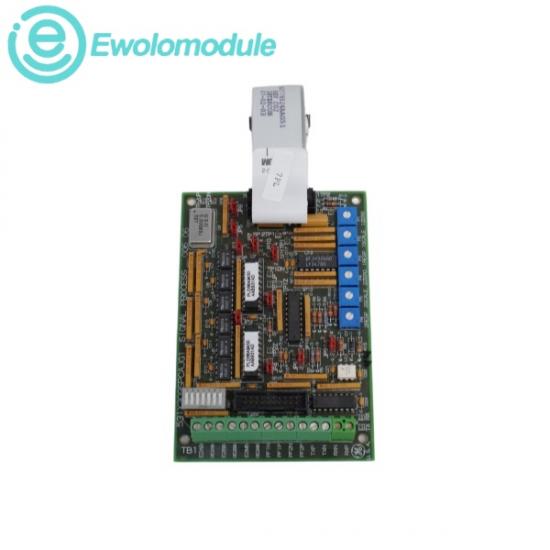

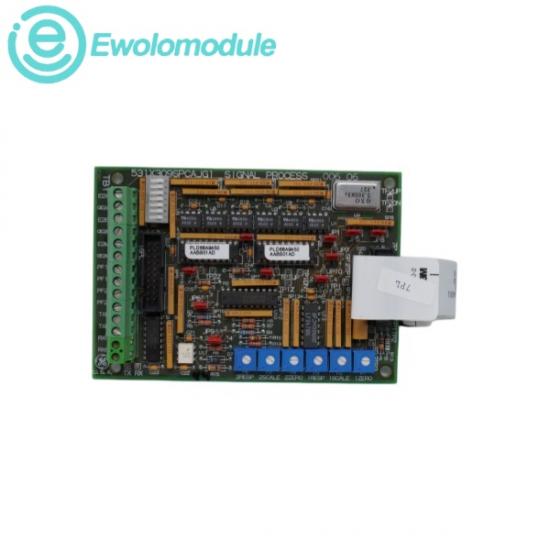

The GE 531X309SPCAJG1 Signal Process Board is a specialized microprocessor support card engineered to bridge external field hardware with central drive controllers. Typically mounted directly onto an SDCC Drive Control Card, this board functions as an analytical translator. It captures fluctuating analog signals—such as system voltages, tachometer speeds, and current references—and cleanses them through high-speed digital filtering networks. By executing real-time scaling and analog-to-digital conversions, it delivers highly accurate data packets directly to the central motor control processor. This setup prevents systemic electronic noise and signal drift from disrupting heavy manufacturing, turbine tracking, or material processing operations.

(1) Analog Input Channels: 8 channels supporting ±10V or 4-20mA field signals

(2) Analog Output Channels: 6 channels running ±10V actuator signals

(3) Digital I/O Layout: 4 channels of 24V DC Inputs; 4 channels of 24V DC Outputs

(4) Analog-to-Digital (ADC) Resolution: 12-bit conversion depth

(5) Onboard Sensor Circuit Support: 2 independent hardware Encoder/Tachometer feedback loops

(6) Serial Communication Port: Integrated RS-422 high-speed serial bus interface

(7) Operating Temperature Envelope: -10°C to +60°C

(6) Relay Output Voltage Ratings: Rated to safely cycle contacts handling 125V AC, 110V DC, and 30V DC loops

(7) Substrate Build & Material: Flame-retardant FR-4 glass-epoxy multi-layer printed circuit board (PCB) with heavy-gauge copper traces
