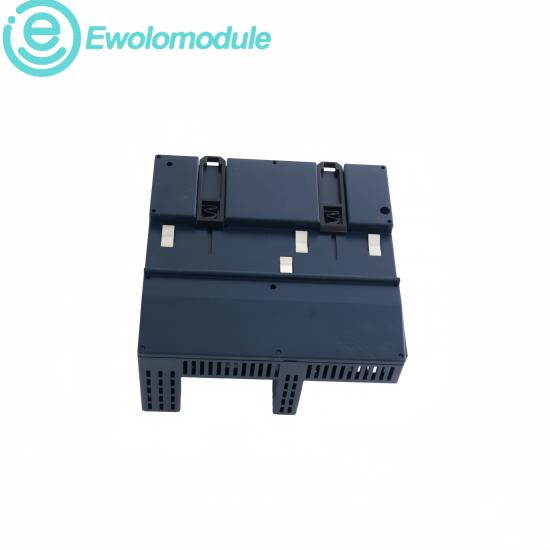

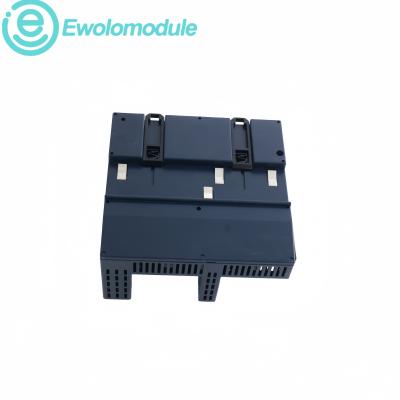

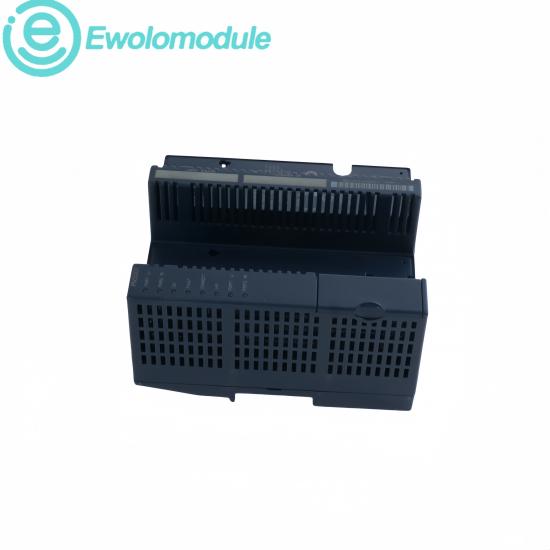

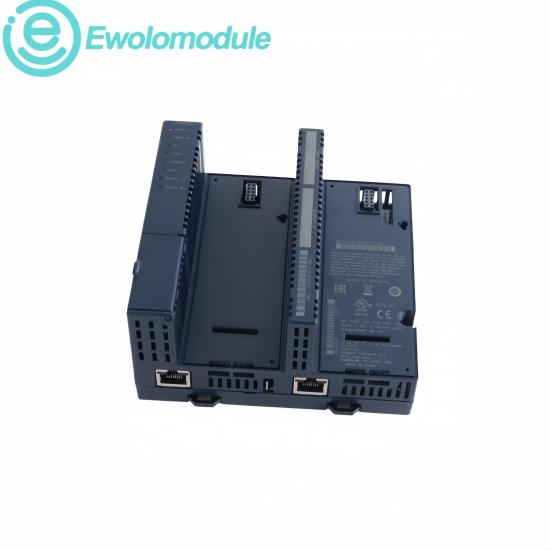

Remote I/O network interface for VersaMax stations

Connects a remote VersaMax I/O station to a PROFINET I/O controller for deterministic plant-floor data exchange.

CONDITIONNew Original

WARRANTYOne year

DIRECT CALL+86 17359287459

EMAILsales9@apterpower.com

Explore other GE products →

02DIAGNOSTICS & DEPLOYMENT

PROTECTION / INSTALLATION

Diagnostics & Protection

Use the module status indicators, PROFINET controller diagnostics and the 32 input-status / 32 output-control bits to isolate network, configuration and station faults.

Before replacement, de-energize the station, preserve the assigned device name and IP settings, and inspect the Ethernet shielding, connectors and power-supply condition.

Installation & Upgrades

Mount the scanner at the left end of the VersaMax station and connect no more than eight supported I/O modules. Keep copper links within the documented 100 m segment limit.

Confirm RX3i controller, PROFINET controller and PAC Machine Edition compatibility before loading firmware. Preserve the original station order and validate I/O mapping after recommissioning.

Technical data

Protocol	PROFINET IO v2.2 Class A	Network ports	2 × RJ45, 10/100 Mbps
Station capacity	Up to 8 VersaMax I/O modules	Maximum link	100 m copper segment
I/O capacity	1440 bytes input + 1440 bytes output	Update interval	1 ms to 512 ms, configurable
Diagnostics	32 status bits + 32 control bits	Power demand	3 W from the station supply
Topology	Line, star or daisy-chain	Operating range	0°C to 60°C

Verify hardware revision, controller firmware and installed station configuration against the project documentation before commissioning.

03BRAND & APPLICATIONS

SYSTEM CONTEXT

Brand characteristics		Application fields
Industrial continuity	VersaMax architecture supports compact distributed I/O stations used in long-life automation systems.	Machine automation	Remote I/O for assembly, packaging and material-handling equipment.
Deterministic networking	PROFINET communication provides repeatable cyclic exchange between the controller and remote I/O.	Water & utilities	Distributed signal collection for pumps, treatment skids and infrastructure systems.
Modular expansion	A consistent module family lets stations combine discrete, analog and specialty functions.	Process support	Local I/O stations serving auxiliary units and balance-of-plant equipment.
Lifecycle discipline	Documented firmware, station order and device identity support controlled maintenance.	Modernization	Migration projects that retain installed VersaMax field wiring and modules.

Product references

GE Fanuc / Emerson
IC693CPU374	IC695CPE310	IC695CPE330	IC695PNC001	IC695ETM001
IC695PSD040	IC200PWR001	IC200MDL640	IC200MDL750	IC200ALG260
IC200ALG328	IC200CHS002	IC200EBI001	IC200GBI001	IC200BEM002
IC200BEM003	IC200PNS002	IC694MDL240	IC694MDL740	IC694ALG223
Bachmann
DI232	DO232	AI204	AO202	CM202
M1	MPC240	MX207	FM211	FS221
CNT204/R	NT255	FS212	DIO216	PATI216
PTAI216	BS210	BS212	AIO288/1	ME203

04SERVICE & POLICY

QUOTATION SUPPORT

Quote	Disclaimer
IDENTIFYProvide IC200PNS001, the installed VersaMax station layout, controller reference and required quantity.	INDEPENDENT SUPPLYThis website is not affiliated with, endorsed by, or authorized by any of the listed manufacturers or trademarks. Ewolomodule is not an authorized distributor, dealer, or representative of the products displayed on this website.
VERIFYConfirm the hardware revision, firmware release, PROFINET device name, IP settings and current I/O-module order.	TRADEMARK OWNERSHIPAll product names, trademarks, brands, and logos used on this website are the property of their respective owners.
QUOTE & DELIVERYState the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation.	IDENTIFICATION PURPOSEThe description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder.
