PRODUCT DETAILS

GE FANUC · SERIES 90-70 ANALOG OUTPUT

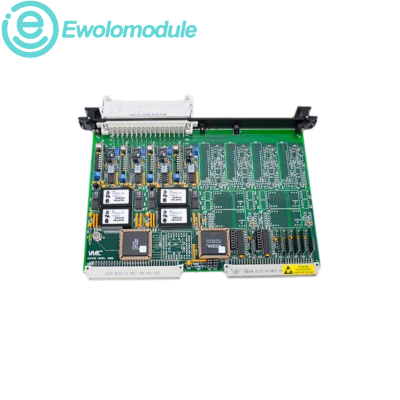

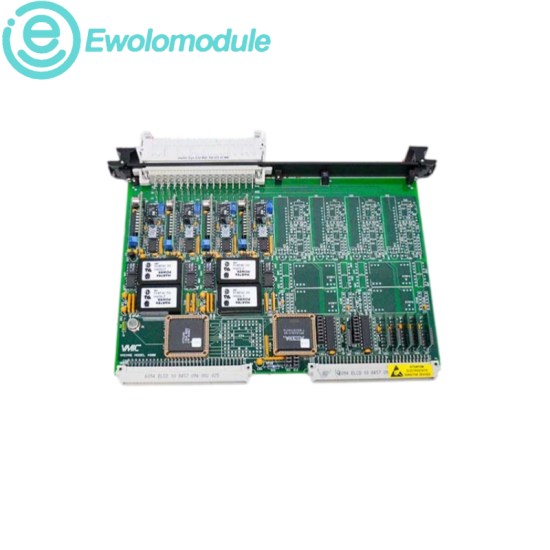

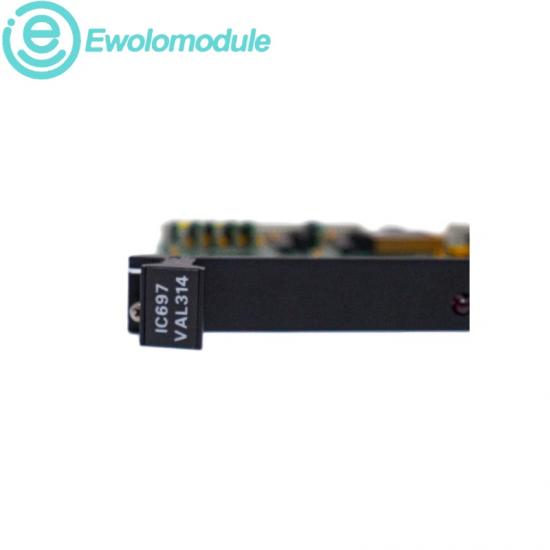

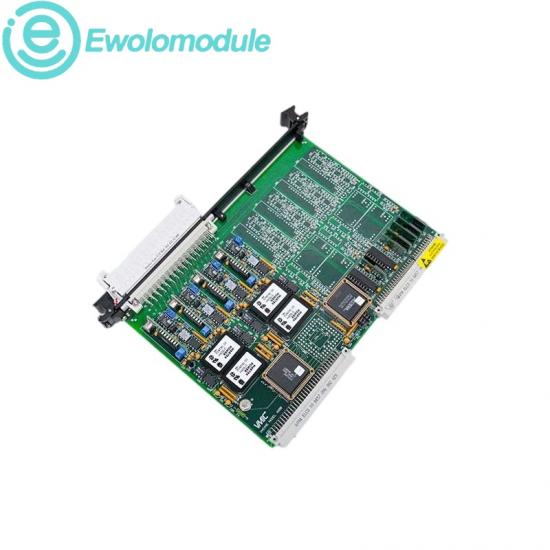

GE Fanuc IC697VAL314 Series 90-70 4-Channel Isolated Analog Output Board

A four-channel isolated analog output board for accurate current-loop control in VMEbus-based industrial systems.

SERIES Series 90-70	CONDITION New Original
MODULE CLASS Analog output	AVAILABILITY In stock
CONTROL ROLE Isolated current-loop signal generation

SPECIFICATIONS

Email : sales9@apterpower.com

ISOLATED ANALOG CONTROL

Four independent output channels for demanding control loops

The board combines 12-bit conversion, galvanic isolation and selectable current ranges in a 6U VMEbus form factor.

Official technical data

Product type	Isolated analog output board	Output channels	4
Resolution	12 bit	Current ranges	4–20 mA / 0–20 mA / 5–25 mA
Isolation	1500 V RMS channel-to-channel and backplane	Form factor	6U VMEbus board
Bus requirement	5 V DC, 6.5 A max.	Address space	A16 or A24
Output accuracy	0.08%	Platform	Series 90-70 / VMEbus

Safety & Compliance

De-energize the rack and field loops before handling the board. Verify current-range jumpers, external loop supply polarity and channel wiring, then maintain the documented 1500 V isolation clearances during installation.

Performance & Efficiency

Twelve-bit conversion and individually isolated channels provide stable current-loop control with reduced ground-loop interference. Program-controlled output connection supports orderly commissioning and fault isolation.

BRAND & APPLICATIONS

Email : sales9@apterpower.com

Brand characteristics

GE Fanuc Series 90-70 components use a modular VMEbus architecture with catalog-defined I/O functions and documented service procedures.

VMEbus platform

Industrial 6U board format supports structured rack integration.

Isolated channels

Channel separation helps protect signal integrity in noisy cabinets.

Lifecycle support

Stable catalog identities simplify legacy-system maintenance.

Application fields

IC697VAL314 supplies isolated current commands where a Series 90-70 or compatible VMEbus system must drive industrial analog devices.

Process control

Current-loop commands for valves, actuators and controllers.

Test systems

Isolated analog stimulus for automatic test equipment.

Retrofit service

Replacement support for installed Series 90-70 racks.
