Quick Details

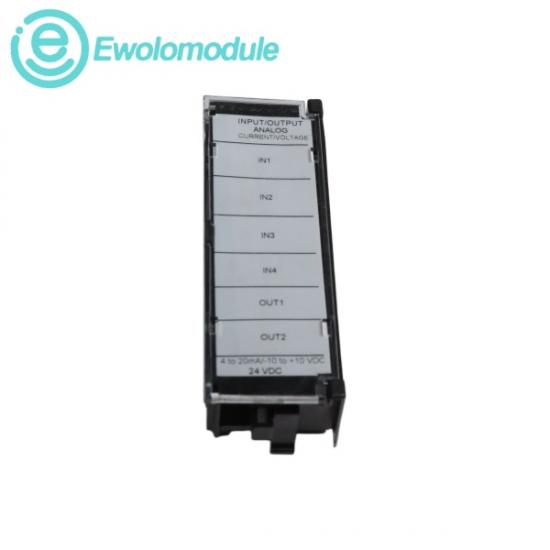

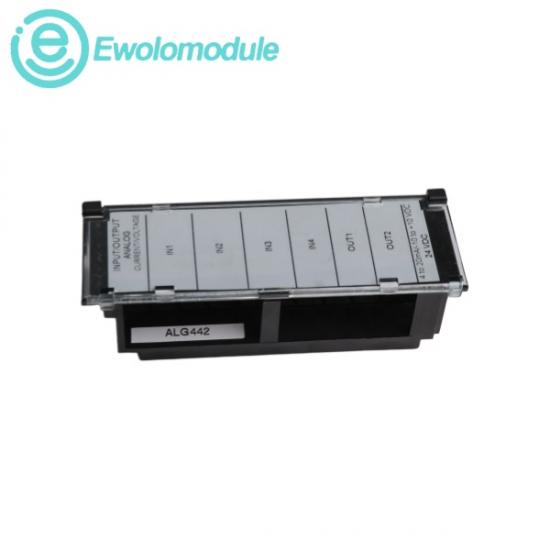

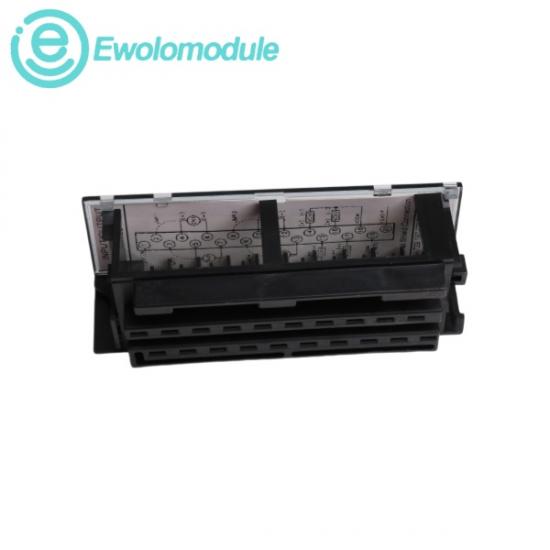

The GE IC693ALG442 is a combined analog input/output module that provides four differential input channels and two single-ended output channels. Each independently software-configurable via Machine Edition for various unipolar and bipolar operational signal ranges. The module can be installed in any I/O slot with a serial connector in either a Series 90-30 or RX3i system. It features field-upgradable firmware in RX3i racks, configurable output behavior on power loss (Hold Last State or reset to low range), and ramp mode operation.

ü External Power Supply Range: Requires 20 to 30V DC external power supply

ü Internal Backplane Current Draw: Consumes 95 mA from the internal +5V DC backplane supply

ü External Power Current Draw: Consumes 150 mA from the external +24V DC field supply

ü Isolation Rating: Continuous 250V AC (optical field-to-backplane isolation) and 1500V AC

ü Operating Temperature: Supports standard continuous operations from 0°C to 60°C (32°F to 140°F)

ü Storage Temperature: Safe environmental storage window from -40°C to 85°C (-40°F to 185°F)

Product Applications

u Mixed Analog Signal Interfacing: Deployed in automation systems requiring simultaneous collection of voltage sensor values and regulation of current loops on a single hardware card.

u Industrial Variable Drive Coordination: Used to transmit analog command signals to adjust speed parameters on variable frequency drives (VFDs) while monitoring actual feedback.

u Real-time Process Monitoring: Applied in heavy processing plants to track and regulate analog physical variables like pressure transmitters, flow meters, and fluid level signals.

Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
