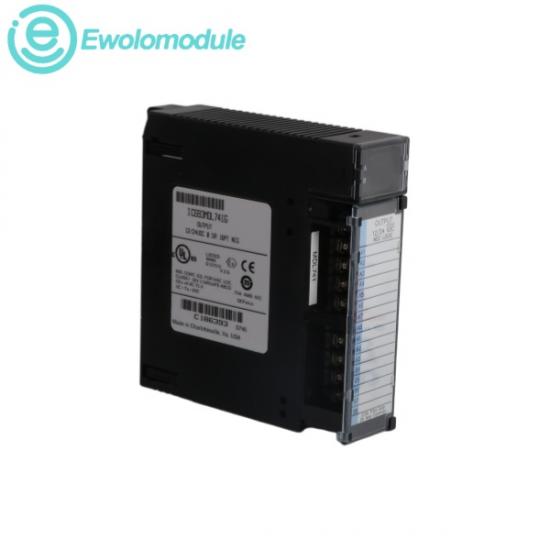

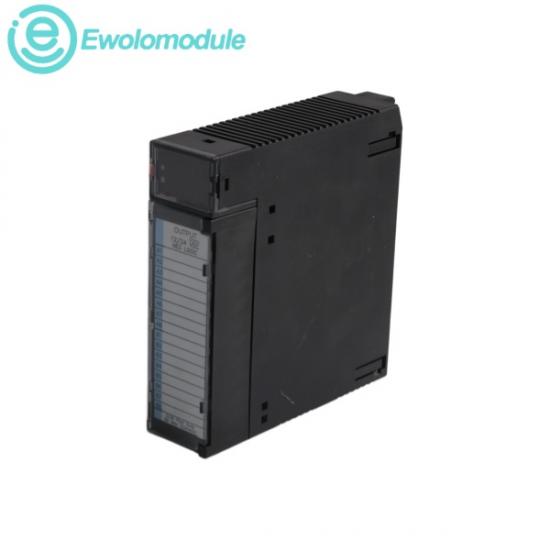

The GE IC693MDL741 is a 16-point discrete output module for the Series 90-30 PLC system. It is a 12/24 Volt DC negative logic output module that sinks current from the loads to the user common or negative power bus. The module provides 16 output points in two isolated groups of eight, with each group having a common power output terminal. It is compatible with a wide range of user-supplied load devices, such as motor starters, solenoids, and indicators. The module features LED indicators at the top for each point's ON/OFF status and can be installed in any I/O slot of a 5 or 10-slot baseplate.

Channel Mapping:

Features 16 points total

Current Capability:

Delivers a maximum of 0.5 Amps per point and a maximum threshold of 2 Amps per common

Backplane Power Draw:

Consumes 110 mA from the internal 5-volt backplane bus

Voltage Drop & Leakage:

Exhibits a maximum on-state voltage drop of 0.5 Volts and a maximum off-state leakage current of 1 mA

Isolation Integrity:

Rated for 1500 Volts isolation between the field side and logic side, and 500 Volts between internal groups

Ambient Temperature Profile:

From 0 °C to 60 °C (32 °F to 140 °F)

Sinking Load Actuation:

Directly switches low-side industrial loads such as motor starter coils, warning beacons, and relays.

Chassis Expansion Configuration:

Can be installed in any available I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.

Visual Fault Inspection:

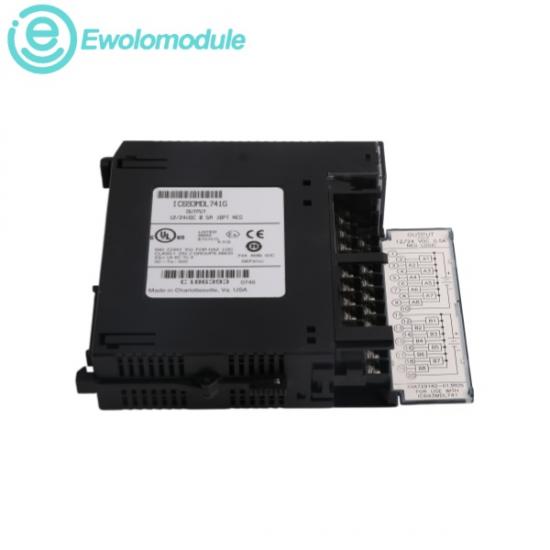

Relies on dual-row LED indicators labeled A1–A8 and B1–B8 to enable field engineers to check discrete channel operations.
