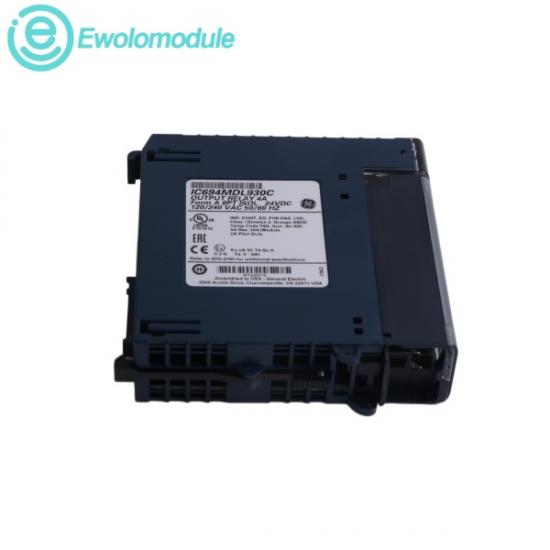

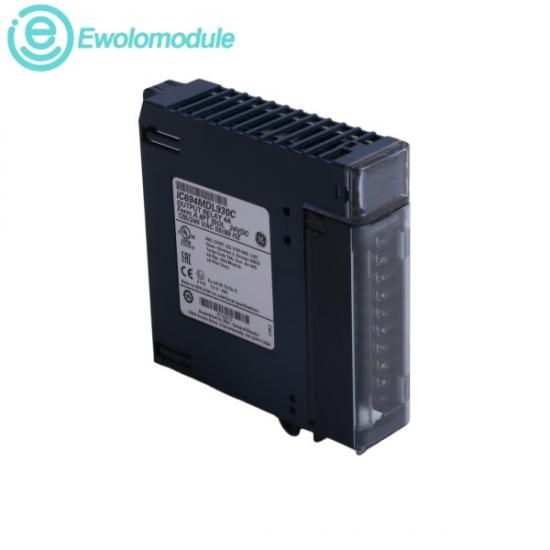

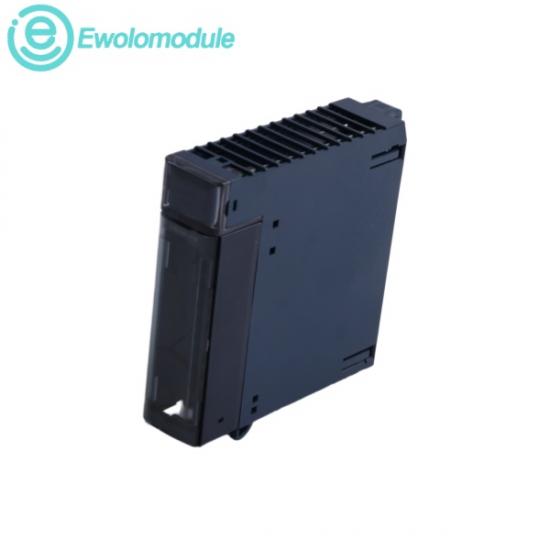

The GE IC694MDL930 is an 8-point, high-capacity isolated discrete relay output module engineered to bridge programmable logic control circuits with heavy industrial field loads. Operating inside the PACSystems RX3i or Series 90-30 backplane carriers, the card features 8 independent Form A mechanical contacts. Because each individual channel is completely point-to-point isolated from the others and contains its own separate common output terminal, it can concurrently switch mixed voltage levels and dissimilar AC or DC power lines safely.

n Nominal Rated Voltage: 24 VDC / 120/240 VAC

n Operational Switching Voltage Range: 5 to 30 VDC / 5 to 250 VAC

n Minimum Permissible Output Load: 10 mA

n Maximum Transient Inrush Current: 5.0 A

n Environmental Operating Temperature: 0°C to +60°C (+32°F to +140°F) continuous slot integration

n Relative Operating Humidity: 5% to 95% (Non-condensing state)

n Internal Backplane Current Draw: 6 mA from the +5 VDC system logic bus (all outputs active)

70 mA from the +24 VDC relay drive bus (all outputs active)

1.

Motor Control & Heavy Coil Switching: Directly drives and switches high-capacity motor starter contactor coils, industrial control relays, and magnetic brakes. It safely sinks high inductive inrush currents up to 5A when cycling heavy motor windings.

2.

Pneumatic & Hydraulic System Actuation: Controls high-voltage solenoid valves and manifold gate operators to manage process fluid routing, adjust physical clamp positions, and run safety cylinder logic blocks.

3.

Factory Floor Indication & Audio Notification: Triggers stack lights, visual status indicators, hazard beacons, and plant alarm sirens across manufacturing cells.

4.

Oil, Gas, & Utilities Infrastructure: Safely isolates the primary control chassis while switching decentralized 240V fuel valves or remote heating elements where high continuous isolation is required.
