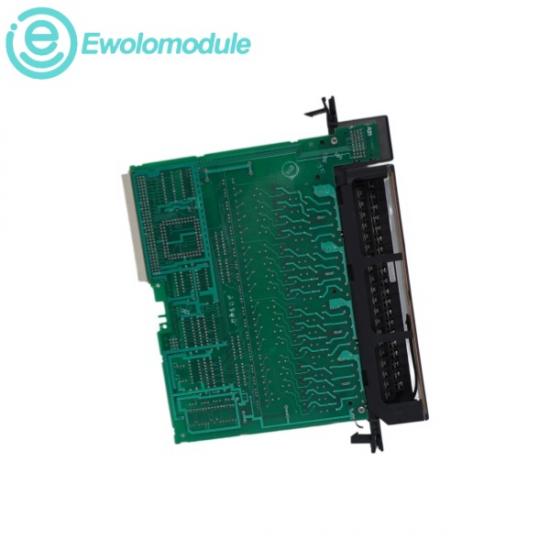

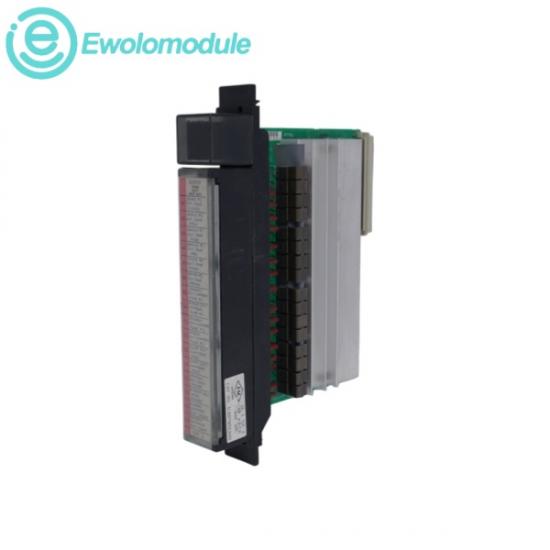

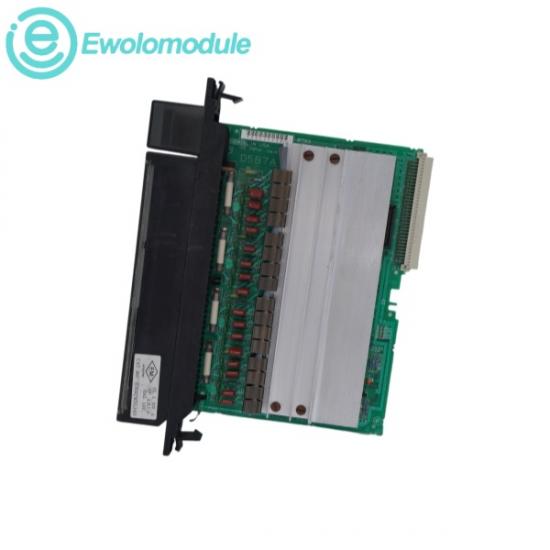

The GE IC697MDL340 is a 120 VAC, 16-point discrete output module for the GE Fanuc Series 90-70 PLC platform. It organizes its 16 outputs into four electrically isolated groups of four points each. This robust module is specifically engineered to handle high inrush currents, delivering up to 10 times its rated current capacity, making it exceptionally well-suited for driving highly inductive and incandescent loads. It features mechanical keying for safe replacement, individual 10-amp fusing per group with front-facing LED indicators for fuse status, and convenient software configuration that completely eliminates the need for manual DIP switches or jumpers.

♦ Rated Voltage: 120 volt AC power supply

♦ Frequency Range: 47 to 63 Hz

♦ Number of Outputs: 16 Outputs configured into 4 isolated groups of 4 points

♦ Output Current: 2 Amps capacity per point, and a maximum of 4 Amps per group

♦ Current Required (from bus): 0.25 Amps internal power consumption

Inductive Load Switching:

Directly driving heavy industrial contactors up to size 4, motor starters, and heavy-duty industrial relays.

High-Inrush Lighting Systems:

Managing high-capacity incandescent lamps and signaling indicators that require a high initial surge current.

Phase-Separated Device Automation:

Controlling multi-phase field hardware by utilizing its four distinct isolated power supply groups.

Solenoid Valve Actuation:

Regulating pneumatic and hydraulic solenoid valves in continuous fluid processing or manufacturing environments.
