GE EX2100 EXCITATION HARDWARE

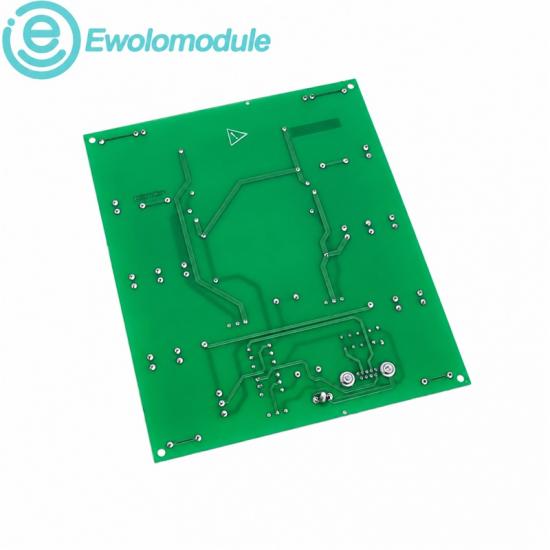

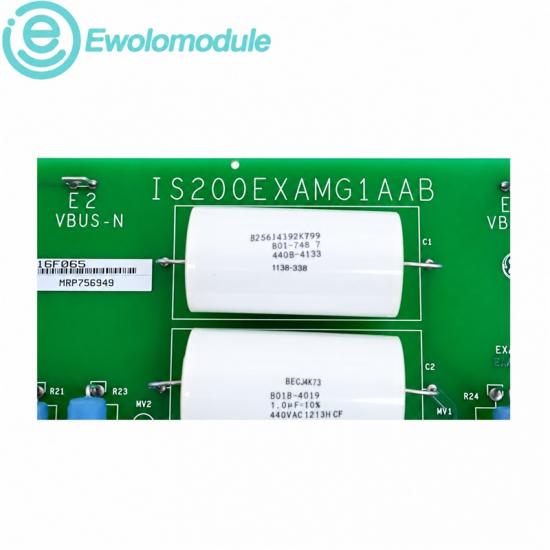

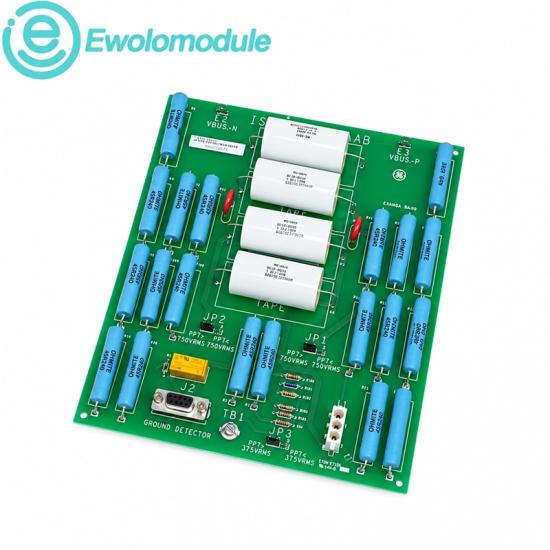

GE IS200EXAMG1AAB EX2100 Exciter Attenuation Module

An exciter attenuation module for scaling and conditioning high-voltage feedback signals in GE EX2100 systems.

SERIES

EX2100

DEVICE CLASS

Exciter attenuation module

FUNCTIONAL ROLE

High-voltage feedback conditioning

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

02SPECIFICATIONS

Email : sales9@apterpower.com

EXCITER FEEDBACK CONDITIONING

Attenuation and selection for EX2100 field measurements

IS200EXAMG1AAB conditions high-voltage exciter feedback through selectable attenuation circuits for the associated control electronics.

Official technical data

Product type

Exciter attenuation module

System family

GE EX2100

Field voltage range

125–1000V DC

PPT input range

120–1300V AC RMS

Input channels

13 channels

Selector settings

8 positions

Relay voltage

24V DC

Operating temperature

0–40°C

Communication & Connectivity

Passes conditioned voltage and status signals to the associated EX2100 control circuitry through defined board connections. Confirm selector positions, cable routing and revision compatibility.

Safety & Compliance

High exciter voltages may be present. Isolate all sources, discharge stored energy and verify absence of voltage before service. Use approved PPE, ESD protection and GE commissioning checks.

03BRAND & APPLICATIONS

Email : sales9@apterpower.com

Brand characteristics

GE EX2100 modules use dedicated measurement conditioning and defined selector ranges to support controlled generator excitation operation.

Measurement scaling

Selectable attenuation matches varied exciter voltage ranges.

System integration

Board connections align with the EX2100 architecture.

Service traceability

Full board codes support exact maintenance records.

Application fields

IS200EXAMG1AAB supports excitation feedback measurement in generator installations using the GE EX2100 platform.

Power generation

Exciter voltage monitoring and conditioning.

Generator service

Board replacement in excitation cabinets.

Modernization support

Maintenance of installed EX2100 systems.
