01 / PRODUCT DETAILSMARK VIe

GE · TURBINE CONTROL

IS220PTCCH1B

Thermocouple Input I/O Pack

High-density thermocouple acquisition for distributed Mark VIe turbine control

PRODUCT ROLE

Conditions, digitizes and reports thermocouple and millivolt measurements.

SYSTEM FIT

Use with the documented PTCC terminal board, IONet topology and hardware revision.

Product overview

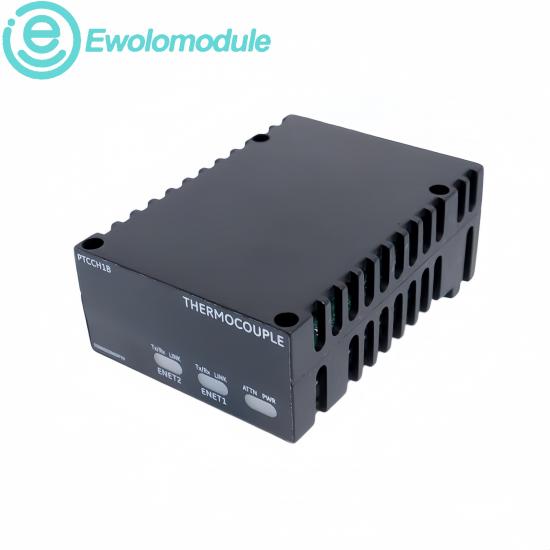

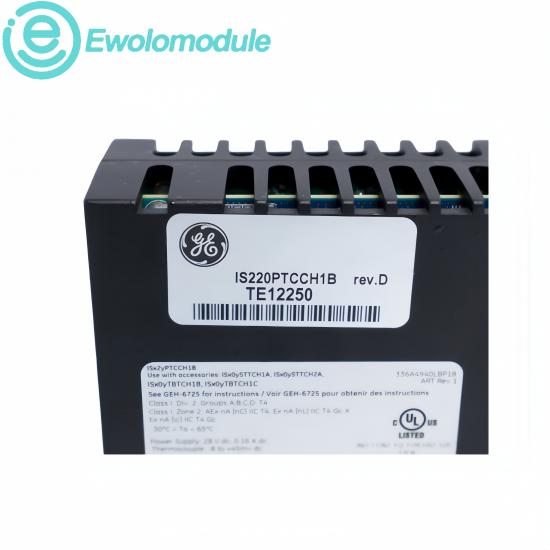

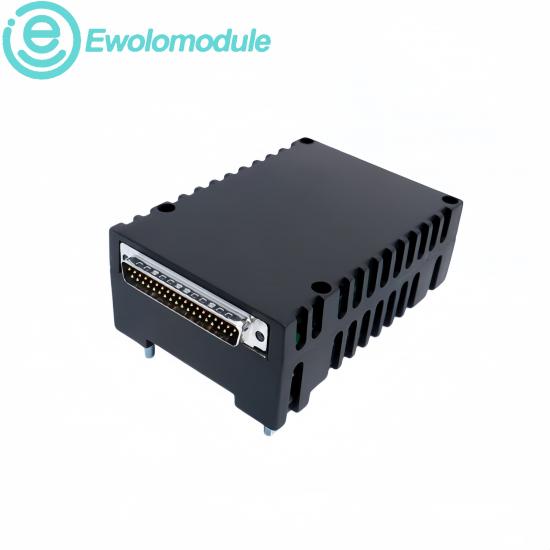

The IS220PTCCH1B connects a compatible thermocouple terminal board to one or two IONet networks and converts twelve temperature channels for the Mark VIe controller.

CONDITIONNew Original

WARRANTYOne year

DIRECT CALL+86 17359287459 EMAILsales9@apterpower.com

Explore other GE products →

02 / PERFORMANCE & USE

Performance & Efficiency

All twelve inputs are sampled at up to 120 times per second per channel through a 16-bit A/D converter. Hardware and firmware filtering provide 110dB common-mode rejection and 80dB normal-mode rejection for stable turbine-temperature measurement.

Application Scenarios

Applied in gas- and steam-turbine control where exhaust, combustion or process temperatures must be acquired close to the terminal board. It supports simplex, dual and TMR arrangements when paired with the specified Mark VIe hardware.

Technical data

Input channels12

Thermocouple typesE / J / K / S / T

Input span-8mV to 45mV

A/D conversion16-bit

Sampling rateUp to 120 samples/s/channel

Common-mode rejection110dB at 50/60Hz

Normal-mode rejection80dB total

Operating range-40°C to +70°C

03 / BRAND & APPLICATIONS

Brand characteristics

Turbine-control expertise

GE Mark VIe hardware is engineered for deterministic power-generation control.

Distributed I/O

Networked packs place signal conditioning close to field terminal boards.

Diagnostic depth

Channel, cold-junction and calibration checks support rapid fault isolation.

Redundant architecture

Simplex, dual and TMR arrangements scale to application criticality.

Application fields

Gas turbines

Combustion and exhaust-temperature acquisition.

Steam turbines

Bearing, casing and process-temperature monitoring.

Power generation

Distributed turbine-control I/O cabinets.

Lifecycle service

Revision-matched replacement during planned outages.

Product references

IC695CPU310

IC695ETM001

IC695CPE330

IC694MDL645

IC694MDL754

IC693CPU374

IC693MDL645

IC693MDL740

IS220PRTDH1B

IS220PTCCH1B

IS220PAOCH1B

IS200ESELH1A

IS200SRLYH2A

DS200SDCCG5A
