01 / PRODUCT DETAILS

MULTILIN 745

GE MULTILIN · TRANSFORMER PROTECTION

SR745-CASE

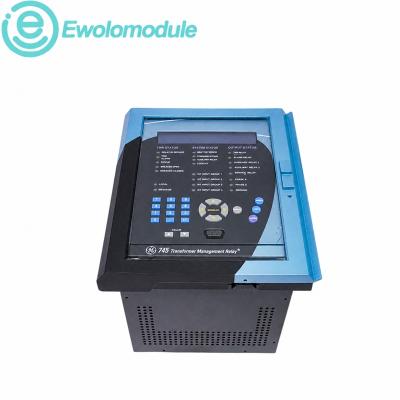

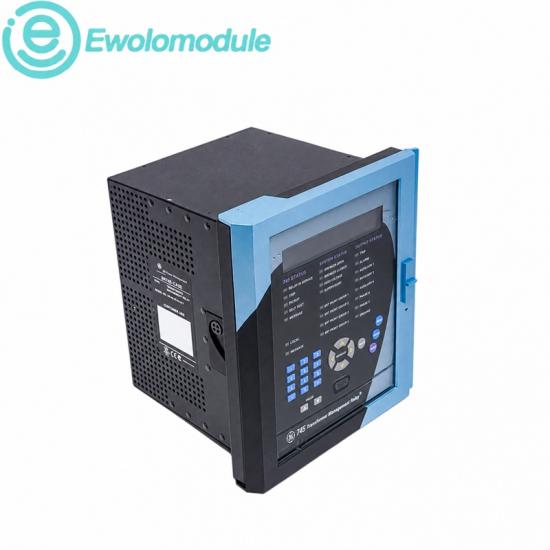

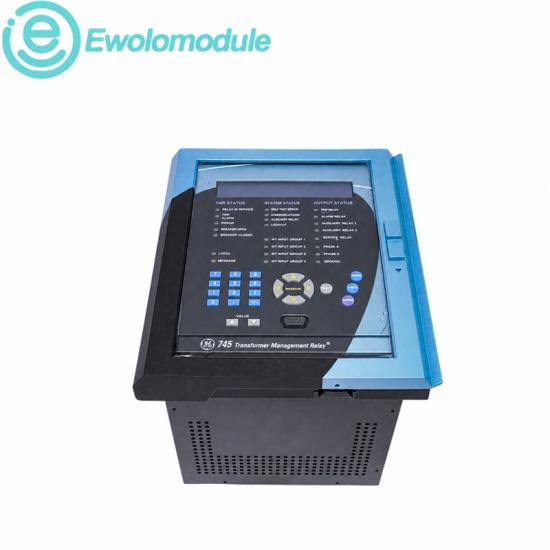

Drawout Transformer Management Relay Assembly

Drawout transformer-protection assembly for established Multilin 745 installations, combining the companion case with the specified relay configuration.

ORDER CONFIGURATION

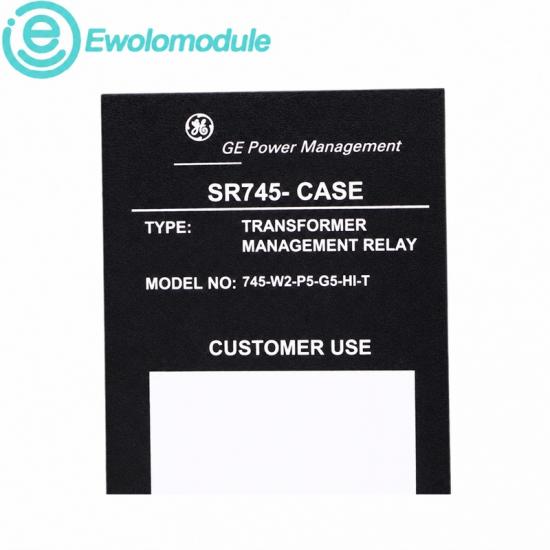

745-W2-P5-G5-HI-T

Match the complete nameplate code and installed case terminal arrangement before replacement.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL+86 17359287459 EMAILsales9@apterpower.com

Explore other GE products →

02 / FIRMWARE & CONFIGURATION

Firmware & Updates

Use the GE EnerVista 745 Setup environment to read the installed relay revision, save settings, retrieve events and review oscillography before service work.

Record the existing firmware and hardware revision first. Apply only a release approved for that exact 745 configuration, then validate protection logic and communications after transfer.

Configuration & Programming

Program transformer ratios and vector compensation, differential slopes, harmonic restraint, backup overcurrent, overexcitation, FlexLogic, port settings and IRIG-B timing from the approved protection study.

Create an offline settings archive, compare it with the commissioned file, and complete controlled secondary-injection testing before returning the relay to service.

Technical data

WINDING INPUTS

2 windings per phase

PHASE CT INPUT

5A nominal

GROUND CT INPUT

5A nominal

CONTROL POWER

90–300VDC / 70–265VAC

SERIAL PROTOCOLS

Modbus RTU / DNP3 Level 2

SERIAL DATA RATE

300–19,200bps

EVENT RECORDS

128 events

WAVEFORM SAMPLING

64 samples/cycle

03 / BRAND & APPLICATIONS

Brand characteristics

Protection heritage

GE Multilin relays are established across utility and industrial transformer-protection systems.

Drawout serviceability

The SR-family case supports relay withdrawal while permanent field wiring remains terminated.

Engineering toolset

EnerVista utilities support settings management, event review and commissioning workflows.

Lifecycle continuity

Documented retrofit paths and installed-base support help plan migration from the legacy 745 platform.

Application fields

Power transformers

Primary and backup protection for two-winding power transformers.

Industrial substations

Transformer management in process plants, metals, mining and large manufacturing sites.

Utility automation

Integration with SCADA through serial or Ethernet communications and time synchronization.

Lifecycle replacement

Like-for-like maintenance where case wiring, CT circuits and approved settings must be preserved.
