PRODUCT DETAILS

GENERAL ELECTRIC · INDUSTRIAL AUTOMATION

MARK V TCPD POWER

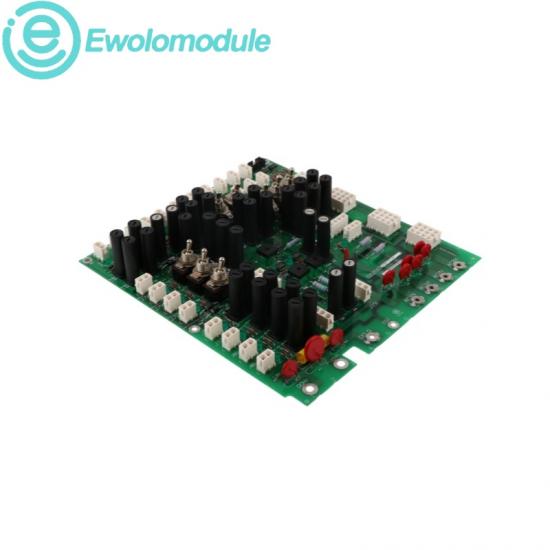

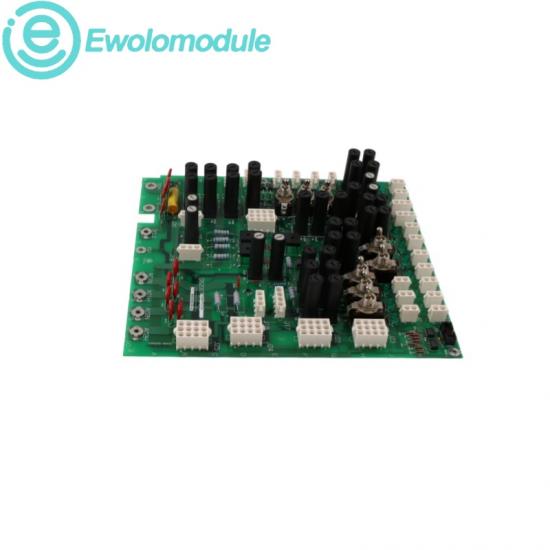

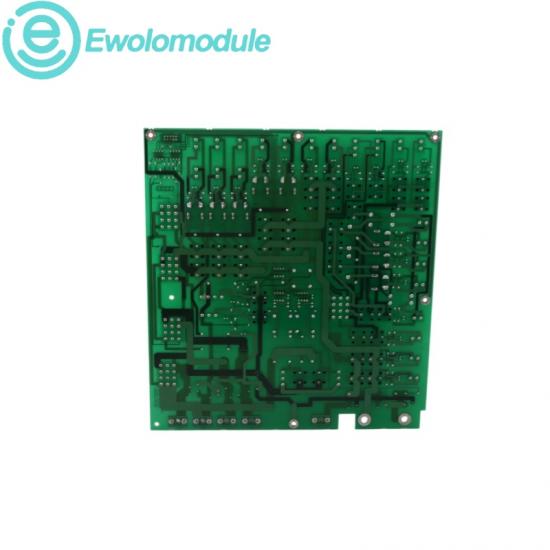

General Electric DS200TCPDG1BEC

Mark V Power Distribution Board

SYSTEM POSITION

Fused DC Power Distribution

Routes cabinet DC power through protected branch circuits while status indicators show fuse integrity across the distribution panel.

Product snapshot

Revised TCPD assembly for established Mark V turbine-control cabinets. Match the complete board suffix, fuse ratings, switch positions, terminal map and jumper configuration before replacement.

CONDITION

New Original

WARRANTY

One year

DIRECT CALL

+86 17359287459

sales9@apterpower.com

Explore other General Electric products →

SAFETY & APPLICATIONS

INSTALLATION PLANNING

Safety & Compliance

Application Scenarios

HIGH-ENERGY ISOLATION

Isolate the cabinet DC supply and verify zero voltage at test points before touching any fuse or terminal.

CABINET POWER ROUTING

Distribute protected DC power to compatible Mark V control and field circuits.

FUSE DISCIPLINE

Replace only with the documented fuse type and investigate the branch fault before re-energizing.

FUSE-STATUS MONITORING

Use individual indicators to locate an open branch or loss of supply.

SWITCH RECORD

Photograph all eight switch positions and the ground-reference jumper before board removal.

TURBINE PANEL SERVICE

Restore a documented power-distribution assembly during planned maintenance.

Technical data

NOMINAL DISTRIBUTION

125VDC

FUSE CIRCUITS

FUSE STATUS INDICATORS

36 green LEDs

TOGGLE SWITCHES

SIGNAL TERMINALS

SYSTEM CONNECTOR

10-pin

BRAND & APPLICATIONS

PRODUCT REFERENCES

Brand characteristics

Application fields

Turbine-control architecture

GE Mark V boards combine documented power, control and protection functions.

Gas turbines

Protected power distribution within legacy Speedtronic control cabinets.

Segmented protection

Individual fused branches limit the effect of localized circuit faults.

Steam turbines

Branch-circuit support for control and protection hardware.

Visible status feedback

Dedicated indicators support rapid fuse-condition checks.

Power plants

Lifecycle maintenance of high-availability turbine automation assets.

Serviceable hardware

Accessible fuse holders and recorded switch positions aid planned maintenance.

Industrial generation

Controlled replacement during scheduled outage work.
