01PRODUCT OVERVIEWFLAME SAFEGUARD / UV
|
HONEYWELL

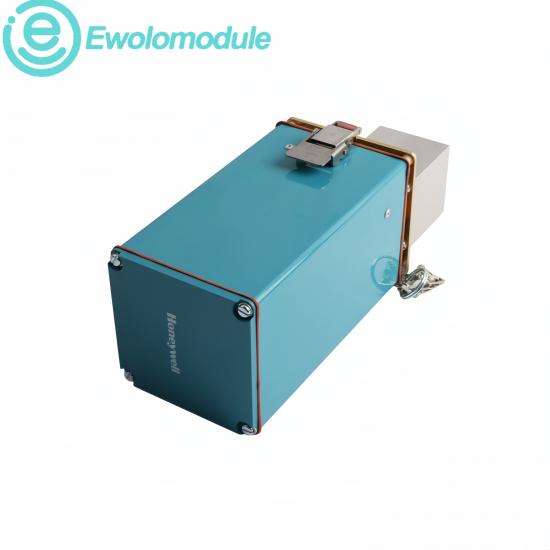

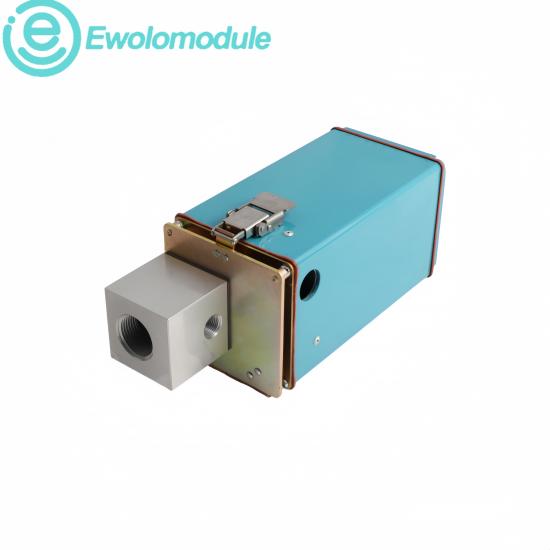

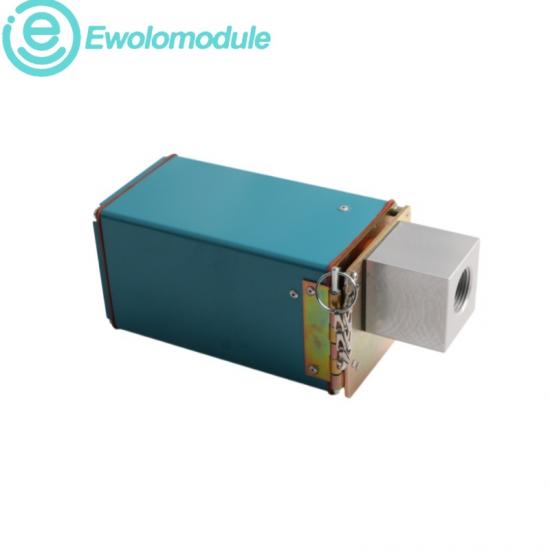

C7076A1015
Dynamic Self-Check UV Flame Detector
|
PRODUCT ROLE
Adjustable ultraviolet flame detector with dynamic self-check
Monitors compatible burner flames and continuously checks the optical sensing path for flame-safeguard applications.
|
02DIAGNOSTICS & DEPLOYMENTPROTECTION / INSTALLATION
Diagnostics & Protection
Use the flame-amplifier indication and five-second self-check cycle to distinguish flame loss, optical blockage, wiring and detector faults.
Shut down and isolate the burner before service. Confirm safe purge, correct grounding and intact conduit seals; never defeat flame safeguards.
|
Installation & Upgrades
Aim through the documented sight pipe, keep the detector viewing the flame base and preserve cooling or purging arrangements where required.
Match the 100 VAC variant, amplifier compatibility and terminal arrangement. Reprove flame failure response after any replacement.
|
Technical data
| Supply voltage |
100 VAC |
Frequency |
50/60 Hz |
| Power consumption |
7 W |
Sensitivity ratio |
Adjustable to 400:1 |
| Self-check cycle |
Every 5 s |
Enclosure |
NEMA 4 |
| Termination |
Terminal block |
Ambient range |
-40°C to +71°C |
Verify the complete order code, installed revision and system documentation before commissioning.
03BRAND & APPLICATIONSSYSTEM CONTEXT
| Brand characteristics |
Application fields |
| Honeywell engineering |
Honeywell industrial hardware supports dependable operation in established automation systems. |
Boilers |
UV flame supervision for industrial boiler burners. |
| Installed-base fit |
Dynamic self-check design supports continuous burner-safety supervision in demanding combustion systems. |
Furnaces |
Combustion monitoring in process heating equipment. |
| Service discipline |
Documented diagnostics, safe handling and configuration checks support controlled fault recovery. |
Power generation |
Burner-management sensing on utility boilers. |
| Lifecycle continuity |
Complete order-code and revision verification helps preserve the installed system architecture. |
Refining |
Flare, heater and process-burner safeguard systems. |
