HONEYWELL · INDUSTRIAL AUTOMATION

CALL +86 17359287459 EMAIL sales9@apterpower.com

ARTICLE NUMBER

MU-TSDM02

OFFICIAL PRODUCT NAME

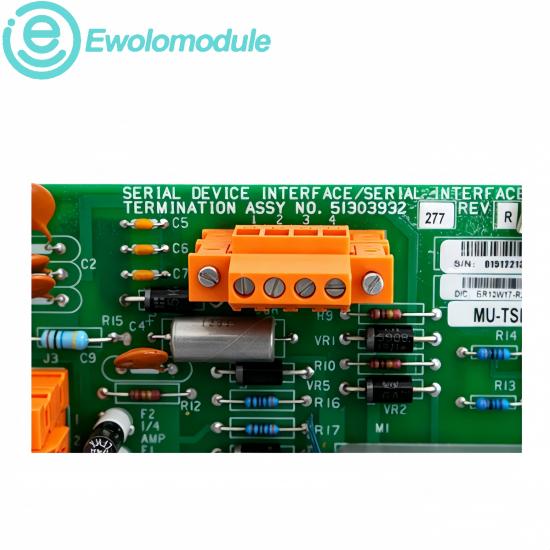

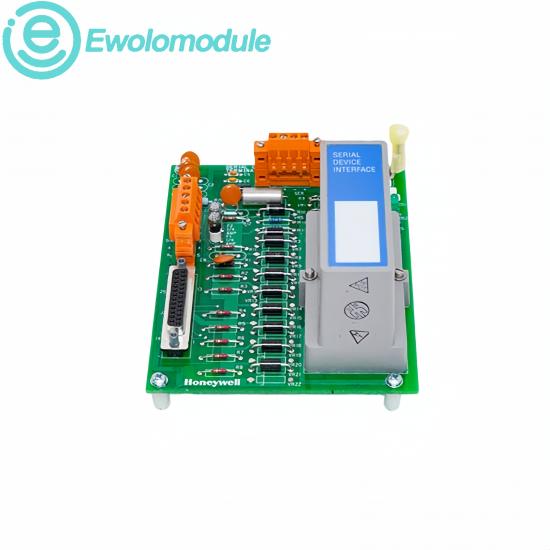

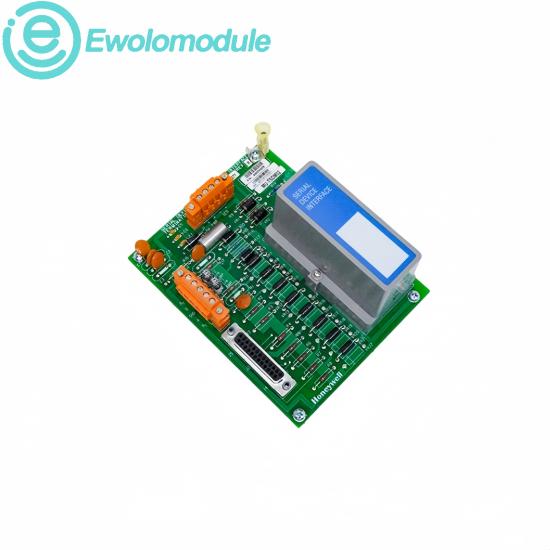

Serial Device Interface Field Termination Assembly

SDI FTA19.2 KBPS4 STATIONS

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

SERIAL LINK

MANUAL AUTO

HPM INTERFACE

LONG DISTANCE

TECHNICAL SPECIFICATIONS

Product characteristics, integration and commissioning reference

CALL +86 17359287459 EMAIL sales9@apterpower.com

Manufacturer

Honeywell

Article number

51303932-277

Type designation

MU-TSDM02

Product type

Serial Device Interface FTA

Device capacity

Up to 4 stations

Serial standard

EIA-422 / EIA-485

Baud rate

19.2 Kbps fixed

Connector

5-terminal compression

Current draw

165 mA at 24 VDC

FTA class

A-size assembly

Associated IOP

MU-PSDX02

Platform

TPS / HPM

INSTALLATION & UPGRADES

Isolate the SDI circuit and verify the MU-TSDM02 FTA, MU-PSDX02 IOP, MU-TLPA02 power adapter and multidrop polarity. Label all station wiring before removal.

POWER ISOLATEPOLARITYSTATION LABEL

CONFIGURATION & PROGRAMMING

Set and verify Manual/Auto Station assignments, Tag IDs and engineering-unit limits in the HPM configuration. Confirm the fixed 19.2 Kbps link and scan each connected station after startup.

TAG DOWNLOAD19.2 KBPSSTATION TEST

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

Honeywell TPS interface hardware supports controlled serial integration, documented station assignments and serviceable FTA architecture for long-life control installations.

TRACEABLEMODULARSERVICEABLE

APPLICATION FIELDS

Used to connect local Manual/Auto Stations in process units, utilities and legacy control cabinets requiring deterministic multidrop serial communication.

LOCAL CONTROLSERIAL I/OHPM SYSTEM
