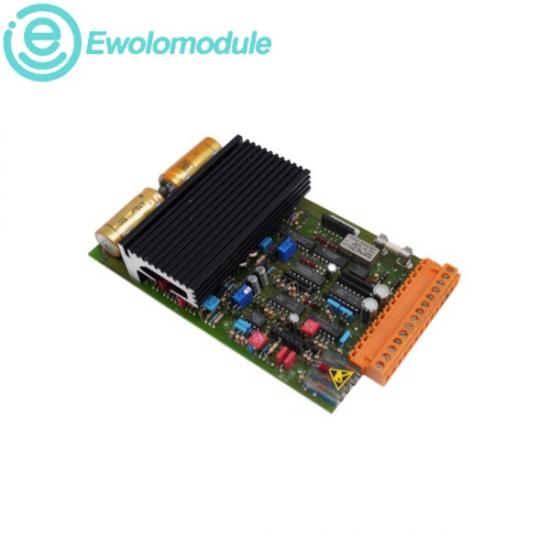

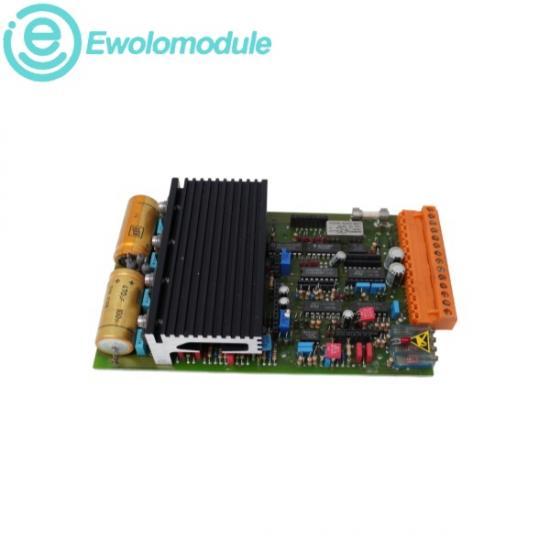

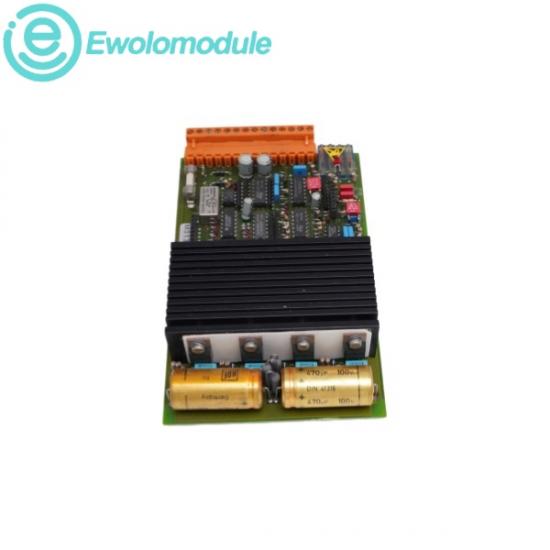

The INFRANOR GMBH MSM0606 is a highly dynamic, 4-quadrant PWM switching servo amplifier card configured in a compact 3U form factor layout. Engineered primarily to manage precise velocity and torque loops for specialized DC motors (such as the Infranor MX series), this drive board operates at a high 16 kHz switching frequency to eliminate audible motor noise and secondary inline filtering needs. It integrates critical safety logic templates directly onto the printed circuit board—including short-circuit defense, thermal monitoring, and overvoltage peak dampening—making it a dependable controller for high-accuracy manufacturing machinery.

Main DC Input Voltage Supply: 10V DC to 65V DC

Nominal Continuous Current: 6 Amperes

Peak Output Current: 12 Amperes

Switching / Chopping Frequency: 16 kHz

Auxiliary Operational Voltage: ±15 VDC

Speed Regulation Range: 1 to 3,000 RPM
