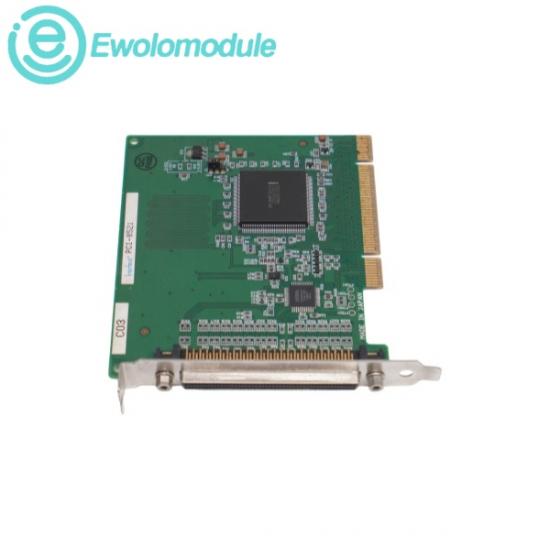

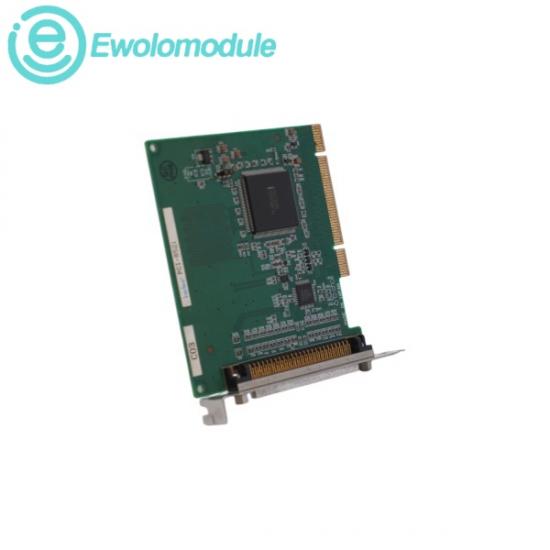

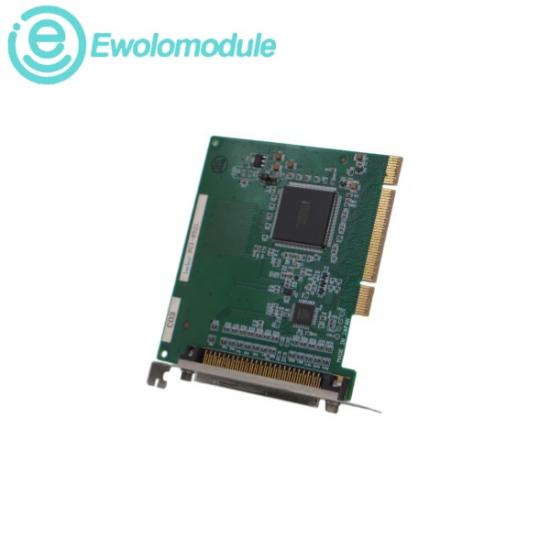

The INTERFACE PCI-8521 is an industrial-grade host-side bus bridge board engineered to facilitate transparent, high-speed data communications between a host computer's standard local PCI bus and external industrial expansion units. By functioning as a dedicated hardware bridge, this module extends system bus signals to remote target backplanes while maintaining protocol continuity with minimal latency. It provides a reliable interface infrastructure for industrial automation racks, data acquisition chassis, and multi-slot expansions, ensuring high signal integrity and robust anti-interference protection in demanding manufacturing floor environments.

Bus Interface Topology: 32-bit PCI local bus

Operating Supply Voltage: +5 VDC / +3.3 VDC

Working Ambient Temperature: 0°C to +50°C

Secondary Logic Line Requirements: +3.3 VDC line

Relative Humidity Operation Ceiling: 5% to 90% RH
