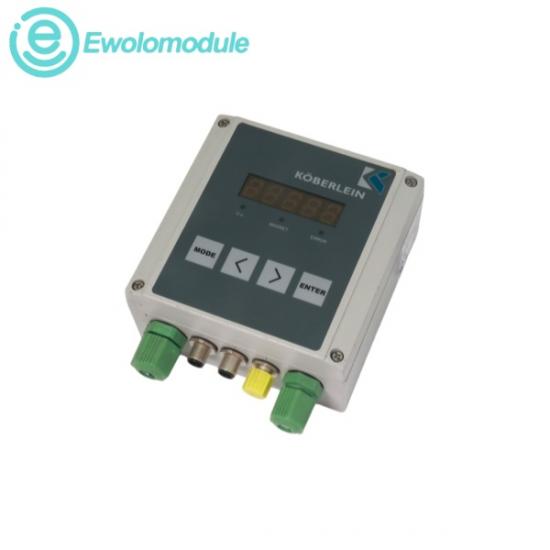

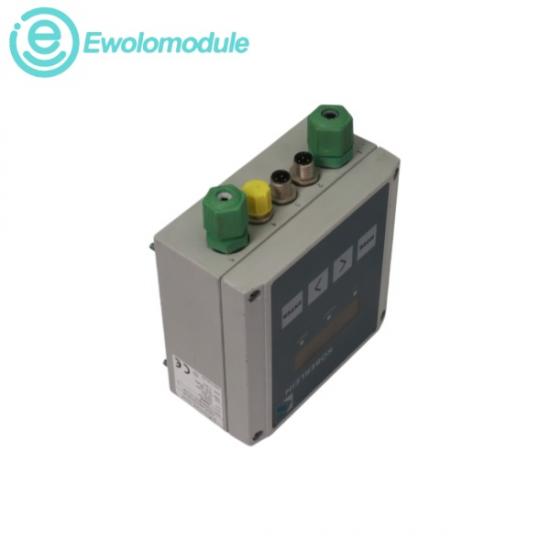

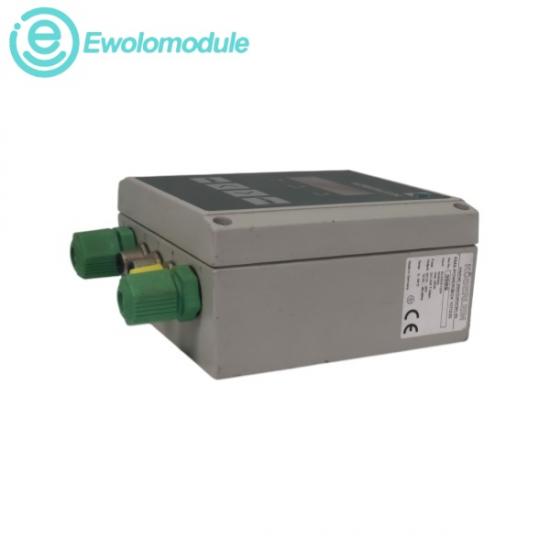

The KOBERLEIN RMA-POWER-BOX 107/230 is a specialized vibration control power box designed to optimize machinery performance by monitoring and managing mechanical vibrations in real-time. It functions by converting input mains power into an adjustable output voltage and frequency tailored to the resonant frequency of the connected drive magnet. It is specifically intended for the control of KOBERLEIN oscillating rails, ensuring smooth operation and reducing wear and tear. The unit features a robust housing for harsh industrial environments and offers multiple operating modes (Auto, Hand, Basic) for flexible control.

Operating Voltage:

115 / 230V AC +/- 10%

Mains Frequency:

50 .... 60Hz

Power Consumption:

max. 60VA

Maximum Connecting Power:

50VA

Operating Ambient Temperature:

0 ... 50°C

Storage temperature:

-25 ... 85°C

Vibratory Feeder Regulation:

Pre-sets and maintains the optimum vibration power (Parameter "u" from 0...100%) for automated parts-feeding bowls or linear tracks.

Resonance Frequency Fine Tuning:

Tunes the magnet voltage frequency (Parameter "f") to precisely match the specific resonance frequency of components like the KOBRATOR.

Mechanical Protection (Soft Start):

Utilizes Parameter "S" to enable a delay time during start-up, preventing the magnet from "bottoming" on the yoke.

Controlled Output Disconnection:

Implements Parameter "d" (Delay) to switch off the magnet only after a timed delay, preventing inadvertent operation from safety control systems.
