Product category: Elektronik-Systeme Lauer PCS Series

Product status: New and Original

Tariff code: 85371091

Product description:

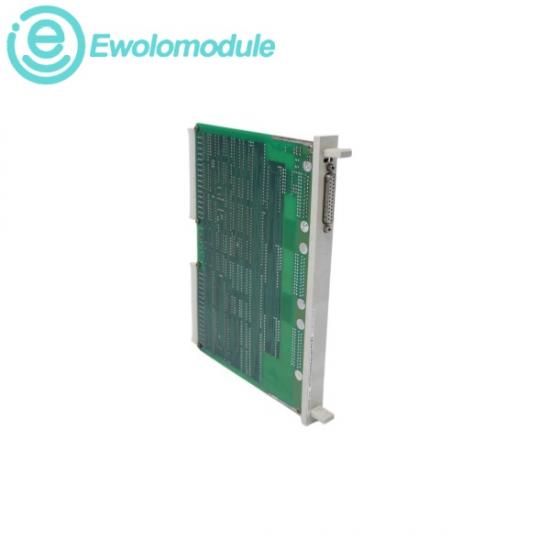

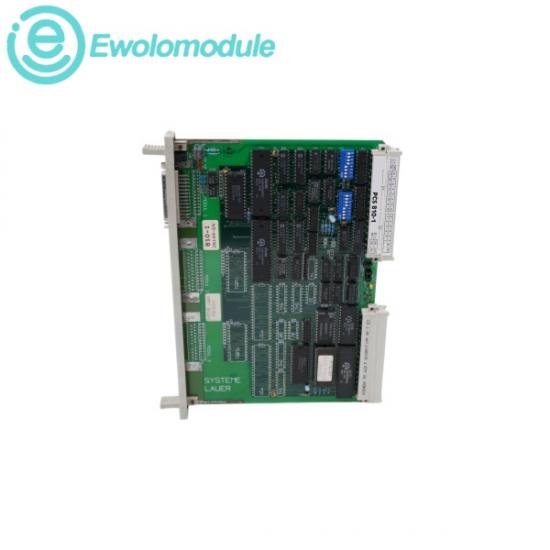

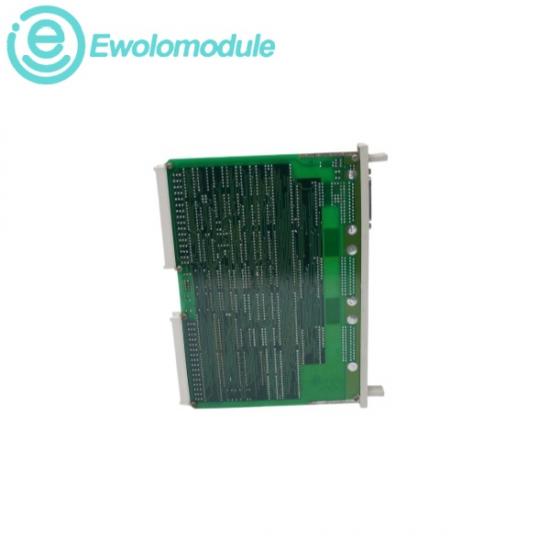

LAUER PCS 810-1 Interface Module

The LAUER PCS 810-1 is a rack-mountable industrial PLC interface card. Connecting text display panels to master racks, this high-performance LAUER PCS 810-1 board handles multi-channel data processing and address mapping efficiently.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Overview

Operating Logic Input Voltage: +5 V DC (±5%)

Auxiliary Signal Line Power: 24 V DC

Continuous System Current Draw: 200 mA and 450 mA

Silicon Component Architecture: 3x ZILOG parallel input/output (PIO) processing chips

Primary Physical Terminal: 1x front-facing 25-pin D-Sub connector

Standard Operating Temperature: 0°C to +50°C

The Lauer PCS 810-1 is a specialized, rack-mountable industrial interface card designed to integrate Lauer human-machine interface (HMI) text panels directly into central programmable logic controllers (PLCs) like Simatic S5 modules. Acting as an intelligent hardware bridge, this communication board handles parallel memory tracking, filters out electromagnetic background noise, and translates real-time signal bits from the PLC rack straight to the operator screen without demanding heavy external field wiring harnesses.

Application

◈Refinery: Controls emergency shutoff valves to prevent fire and explosion.

◈Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

◈Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

◈Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

◈Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
