Quick Details

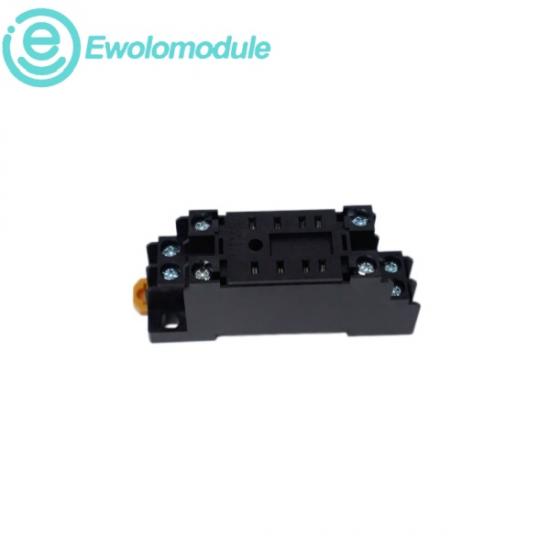

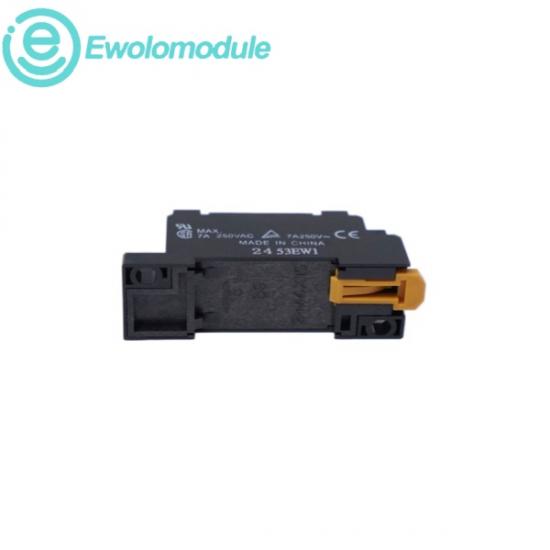

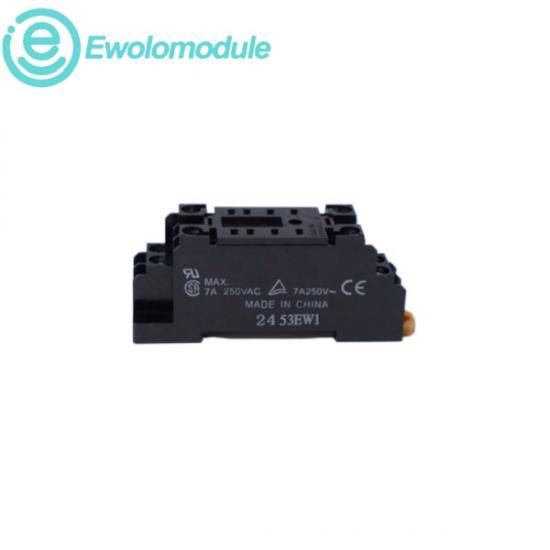

The OMRON PYF08A-E is a front-connecting, 2-pole industrial track-mounted socket base engineered exclusively for housing OMRON MY-family general-purpose relays. This module acts as the physical and electrical interface between the plug-in relay unit and the control cabinet wiring, supporting both standard DIN-rail clipping and direct surface screw mounting. Equipped with eight robust integrated M3 screw terminals, it allows field technicians to safely land sensor and actuator wiring without needing to solder directly to the relay pins. Its slim 23mm profile optimizes space utilization inside dense electrical enclosures while providing reliable wire retention.

ü Carry Current: 7 A

ü Dielectric Withstand Voltage: 2,000 VAC

ü Insulation Resistance: 1,000 MΩ minimum

ü Operating Ambient Temperature: -55 °C to +70 °C

Industrial Applications

(1) Control Panel Power Distribution: Serves as a modular termination block inside automation cabinets to organize logic circuits cleanly along a unified DIN rail track.

(2) Machinery Interface Buffering: Used in industrial environments to securely bridge thin-gauge controller output signal lines to heavy-duty switching circuits through easy-to-replace relays.

(3) Rapid Maintenance Systems: Facilitates "zero-rewiring" fast component swaps in high-uptime production lines, enabling technicians to plug out a failed relay and pop in a replacement without touching field wires.
