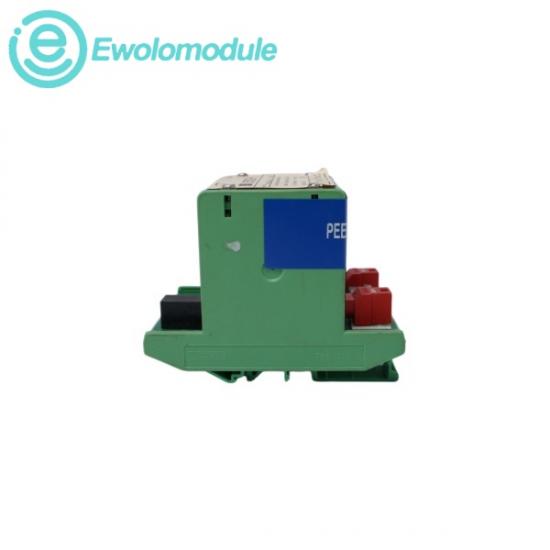

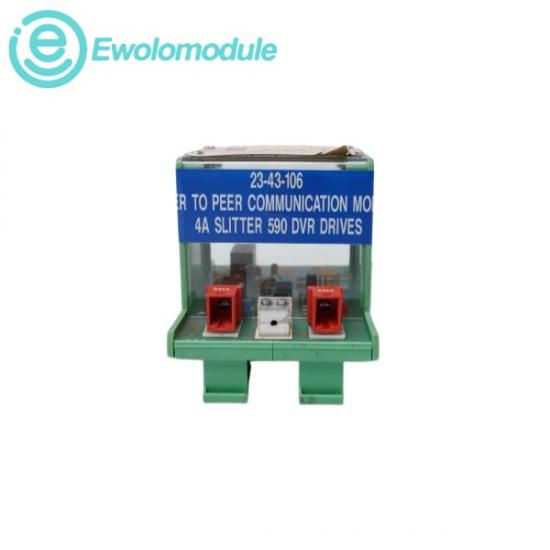

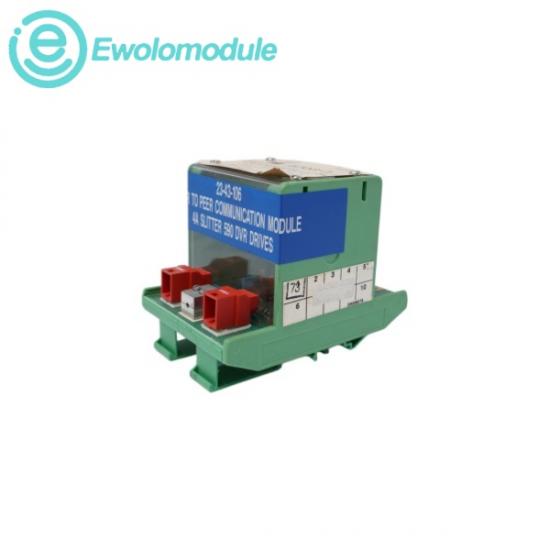

The Parker 5703-1 is a DIN-rail mounted communications converter module designed to copy and synchronize operational setpoints from a reference drive to one or more follower drives. It interfaces directly with a drive's P3 communication port via an included 400mm serial ribbon cable, capturing the RS-232 level data without altering the underlying 16-bit signal. The module converts these electrical signals into high-speed fiber-optic pulses.

u Operating Input Voltage: +24 V DC

u Signal Depth Capacity: 16-bit parallel-to-serial conversion

u Mounting Configuration: DIN Rail mounting

u Operating Ambient Temperature: 0 °C to +55 °C

❖ Multi-Drive Speed Locking: Synchronizing the exact velocities of successive motor drives in web-handling systems, printing presses, and continuous textile lines to prevent material stretching or tearing.

❖ High-Noise Signal Isolation: Running safe, noise-immune communication linkages between motor controllers spanning long physical distances through environments heavily exposed to severe electromagnetic interference (EMI) or radio-frequency interference (RFI).

❖ Setpoint Cascade Routing: Acting as a high-speed data repeater block to distribute a single master velocity configuration simultaneously to massive follower drive banks without introducing propagation lag.
