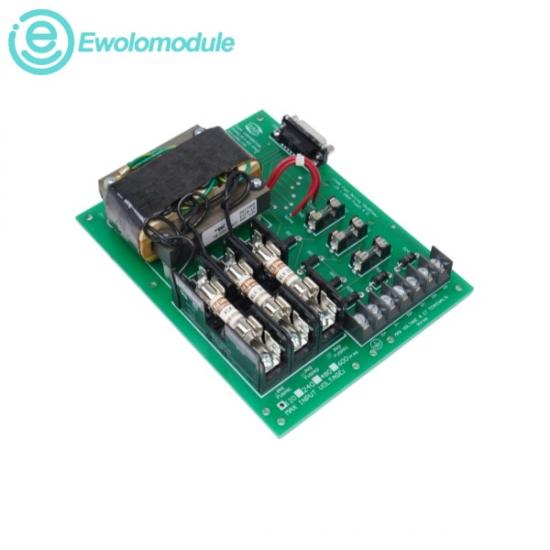

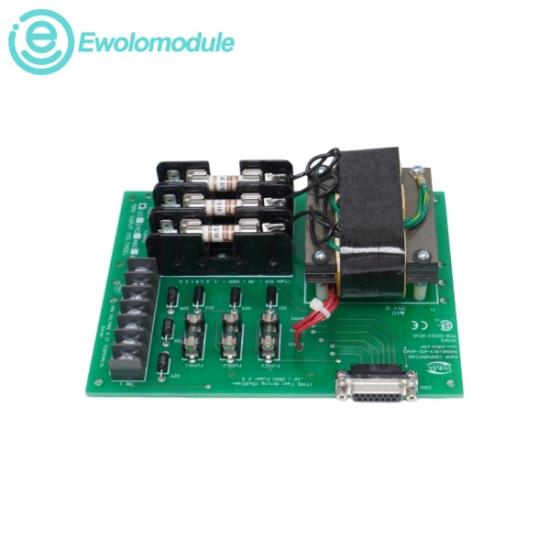

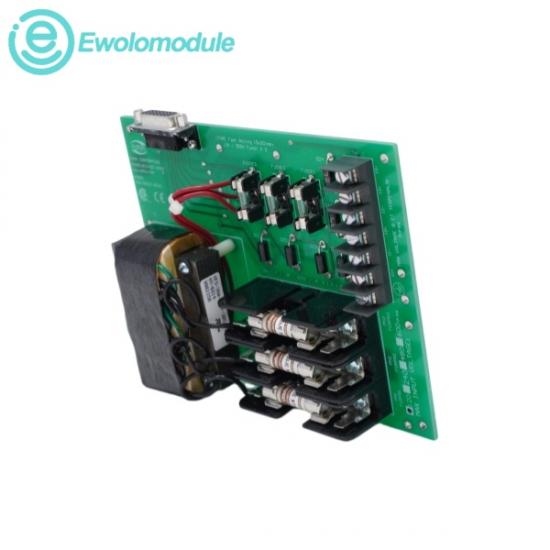

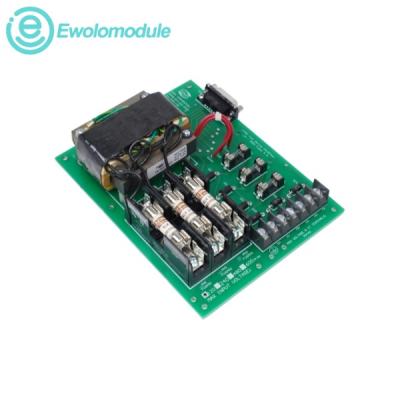

The PDMA MTAP2 PCB-00322-REVD is a printed circuit board assembly for the MTAP2 Motor Test Access Port system, developed for safe, non-intrusive diagnostics of energized AC motors and generators. Functioning as a permanent, safety-centric electrical interface board, this printed circuit assembly acts as a stepped-down signal node that reduces dangerous high-voltage and high-current fields into isolated, low-power monitoring lines. This PCB integrates terminal blocks, isolation circuitry, and signal conditioning hardware to safely extract motor electrical signatures.

Ø Nominal Interface Voltage at Port: 30V RMS nominal, strictly maintaining <50V peak

Ø Current Input Port Specifications: Supporting a 0–3V RMS analog current input range

Ø Transducer Interfacing Input: Looking for an analog voltage signal of 333 mV/amp

Ø Operating Temperature Rating: Rated for continuous operation up to +80 °C (+176 °F)

Ø Relative Humidity Range: Up to 90% non-condensing industrial margin

Motor Control Centers (MCCs): Permanently mounted inside industrial starter buckets to allow fast, routine current and voltage diagnostic checks on continuous equipment without opening energized enclosure frames.

Variable Frequency Drive (VFD) Maintenance: Deployed on either the line-side or load-side of medium-voltage and low-voltage VFD architectures to perform complete motor fault zone analysis while managing harmonic frequencies.

Heavy Process & Manufacturing Facilities: Utilized inside chemical plants, paper mills, and automotive factories to routinely test heavy-duty three-phase induction or synchronous motors. It safely captures power quality, stator health, and rotor anomalies without time-consuming lockout/tag-out procedures.
