Product info
|

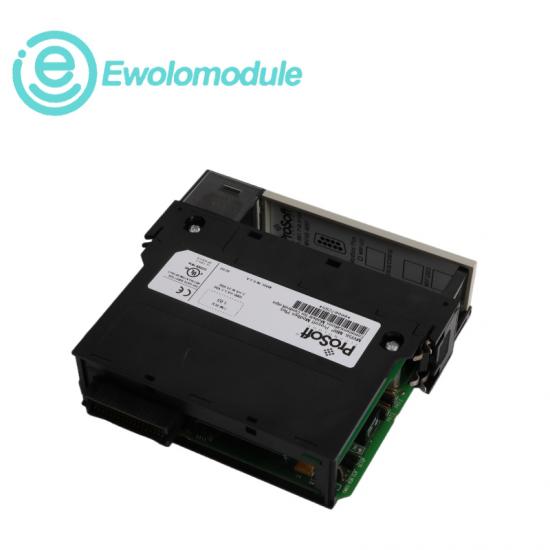

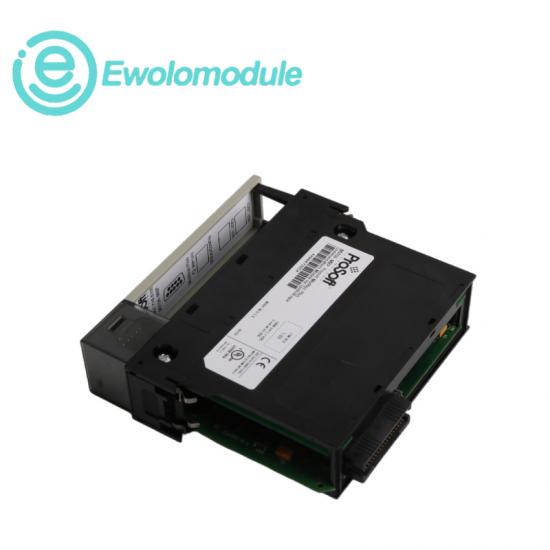

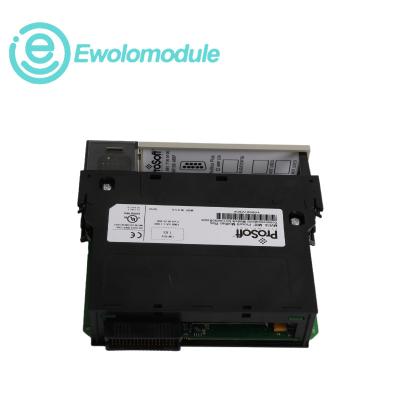

Brand: Prosoft Module: MVI56-MBP Description: Communication Module Origin: USA Packaging: Original packaging Minimum order quantity: 1 piece Quality: 100% original and 100% brand Service: After sales service |
Description
Protocol: Modbus Plus
Ports:
2 x DB9 Modbus Plus communication ports (for redundant operation)
1 x RJ45 serial configuration port
Baud Rate: 57,600 bps (fixed)
Parity: None (fixed)
Stop Bits: 1 (fixed)
Register Space: Up to 4,000 words for data exchange between the ControlLogix processor and the Modbus Plus network
Global Data:
Global Input: 32 words max per node
Global Output: 32 words max
Power Consumption:
800 mA @ 5.1 VDC
3 mA @ 24 VDC
Hot Search
|
900H03-0202 900H32-0302 900K01-0201 900TEK-0200 900TBK-0200 900TER-0200 900TBR-0200 900TCK-0200 |
GE DP320T-EM GE IC752VDS048C GE ICRXICTL000-BD GE F650BABFEG0HIC GE IC754CSX06CTD-AB GE IC754VSF12CTD-FC GE IC755CSS06RDA-AJ GE IC755CSS10CDA-AJ |
ProSoft MVI56-MNETR ProSoft MVI69-MNET ProSoft MVI71-MNET ProSoft MVI46-MNET ProSoft 3150-EMC ProSoft MVI56E-MCMXT ProSoft ILX56-MM ProSoft MVI94-MCM |
Parker PA08T-133 Parker PA10T-135 Parker PA210T-135 Parker XPR206VT-2P3 Parker XPR208VT-2P3 Parker XPR210VT-2P3 Parker IXA-015-3R3-53 Parker EPX08T-XAAA-1 |
What is a Standalone Gateway?
A Standalone Gateway is a type of communication module that is not installed in the main controller slot. It is usually installed on a DIN rail and has independent power supply and configuration. It is widely used to communicate and convert data between different industrial protocols (such as Modbus, DF1, PROFIBUS, HART, EtherNet/IP, etc.).
|
PLX51 Series - Micro Ethernet Protocol Conversion Gateway Compact design, supports communication between EtherNet/IP and a variety of serial/fieldbus protocols. |
PLX31/PLX32 Series - Multi-protocol Configurable Gateway Multi-protocol support, suitable for a variety of network structures such as master-slave, client/server, etc. |
ProLinx 5000 Series (PLX5x) – Universal Industrial Protocol Bridging Gateway Highly configurable medium and large industrial communication conversion platform, suitable for complex scenarios. |
|
Features: Small size, suitable for distribution boxes or field deployment Built-in Web interface configuration and diagnostic functions Supports CIP Messaging, Tag-Based data exchange DIN rail installation |
Features: Support multiple master/slave protocol combinations at the same time Modular configuration, adaptable to various application scenarios Mappable PLC Tags and registers Support remote monitoring and logging |
Features: Industrial-grade reliability Support multiple serial ports and one Ethernet port Support CRC check, master/slave role switching Multiple communication modes (master/slave, client/server, transparent transmission) |
