Product Description

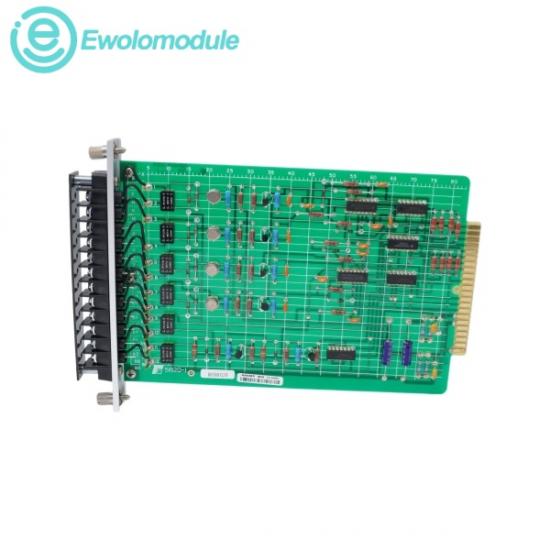

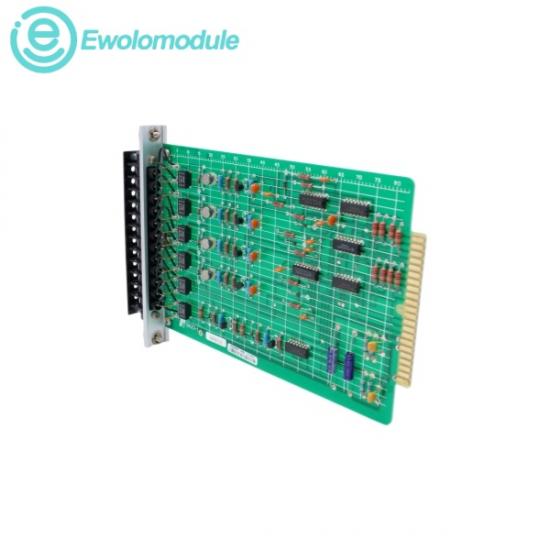

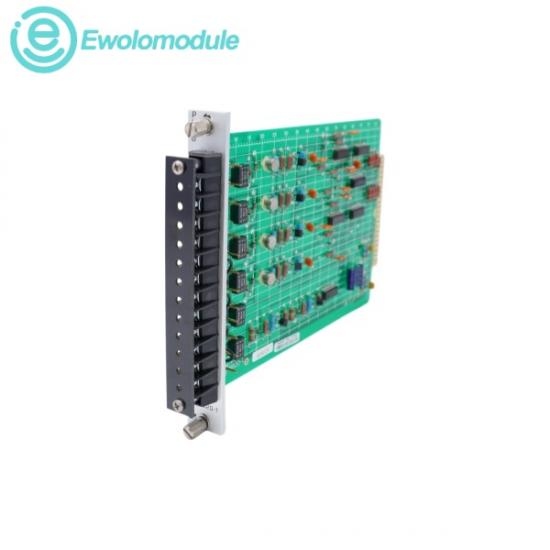

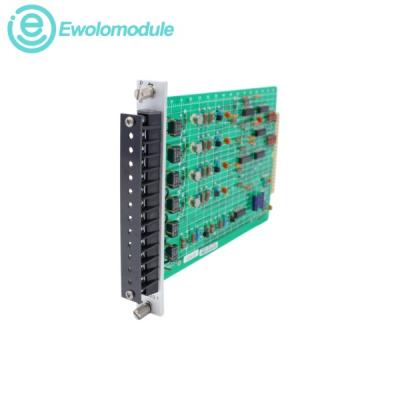

The Reliance Electric 0-51820-1 is an industrial-grade pulse driver and transmitter printed circuit board assembly engineered for heavy-duty motor control systems. This high-frequency pulse synchronization enables seamless speed and torque regulation of large industrial DC or AC motors. Equipped with robust galvanic isolation, on-board noise suppression filters, and diagnostic test points, this module shields sensitive internal control logic networks from devastating back-EMF spikes and severe electromagnetic interference (EMI) typical of raw plant floor environments. It is a critical component designed for advanced industrial control systems, ensuring seamless integration and enhanced operational efficiency.

1) Logic-Side Input Voltage: +5 VDC (±5%) and +15 VDC derived from the system rack backplane

2) Gate Drive Output Channel Current: Peak firing current up to 1.5 A to 2.0 A

3) Pulse Output Voltage Profile: High-amplitude pulse train output, typically scalable from 10 V to 24 V

4) Signal Isolation: Optical and transformer-coupled isolation rated up to 1500 VAC RMS

5) Operating Temperature: 0 °C to +55 °C (32 °F to 131 °F) ambient cabinet deployment temperature

6) Storage Temperature: -40 °C to +85 °C (-40 °F to 185 °F)

7) Relative Humidity: 5% to 95% non-condensing

Real-World Applications

n Metal Processing and Rolling Mills: Used in large steel and aluminum mills to synchronize pulse firing sequences for high-horsepower motors, ensuring precise tension control on continuous metal sheeting lines.

n Industrial Automation & Motor Drives: Deployed within heavy-duty manufacturing facilities to manage variable speed and soft-start operations for automated industrial machinery.

n Power Equipment Control: Implemented in heavy power conversion setups and electrical substations to regulate high-current SCR rectifiers and high-capacity industrial power supplies safely.

n Environmental & Waste Management Machinery: Used to govern large, high-torque exhaust fans, industrial air scrubbers, and heavy-duty water treatment pumping grids requiring steady motor speeds.

Our Advantage

☆ ABB (PM645,PM865,DSQC, AC800M,OCS 07KT97/07AI/07DI,etc)

☆ BENTLY (3500,3300 system sereis)

☆ HONEYWELL (DC 2000, TDC3000, TPS, security systems)

☆ SCHNEIDER (Quantum 140 series: CPU processor, communication module)

☆ FOXBORO (FBM203/204/217,FCP240/270)

☆ EMERSON (DeltaV systems, / O unit, Analog AI module, Analog AO module)

☆ Motorola (VME 162, MVME 167, MVME1772, MVME177)

☆ YOKOGAWA (CS3000 system CPU controller module, analog module)

☆ EPRO (MMS6210/621,PR6423/003-031)

You May Need

FAQ

Q1: What is the earliest time when you can make delivery?

A: We will make delivery once received your payment.

Q2: Do you have branches in foreign countries?

A: No, but we sell to all over the world.

Q3: Are you manufactory or trading company?

A: Trading company.

Q4: Can you offer Technical Support?

A: No, we sell hardware, not include the technical support.

Q5: Can you supply Datasheets/Literature/Technical Literature?

A: The datasheet will be shipped together with the goods.
