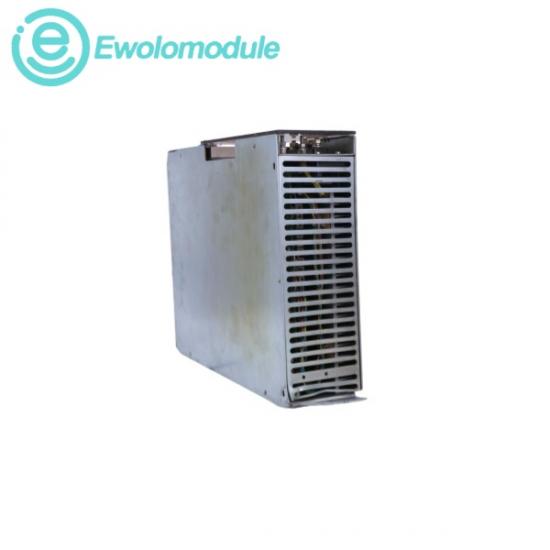

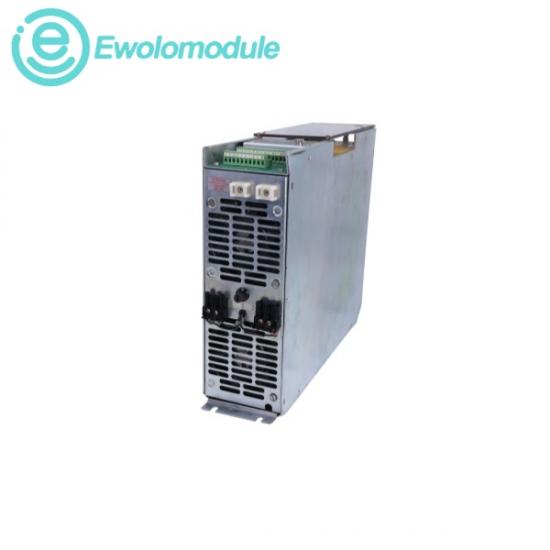

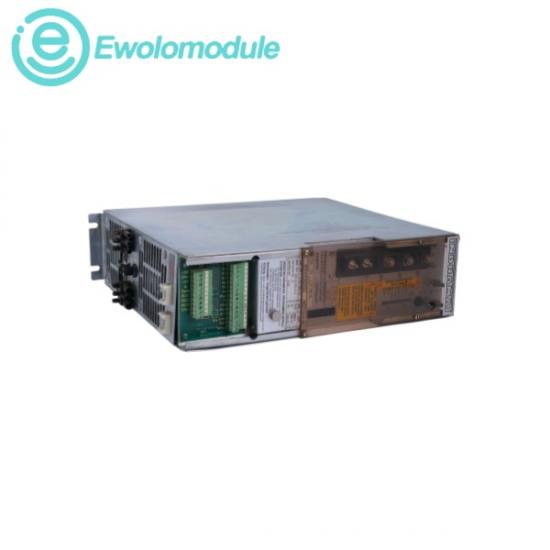

The REXROTH TDM1.2-30-300-W1 is a high-performance modular AC servo drive controller designed to drive and monitor Indramat MAC series synchronous servo motors. Functioning as a high-density axis module within a centralized multi-axis rack system, it shares common intermediate DC-bus pipelines generated by a central power supply module (such as the TVM or KDV families). The module relies on a pluggable, application-specific MOD card that houses pre-optimized motor tuning profiles, delivering microscopic closed-loop speed tracking and extreme short-term torque acceleration without requiring end-user manual calibration.

Type Current / Peak Rating:

30 Amps

Continuous Output Current:

Rated at 25 Amps

Nominal DC Bus Voltage:

300 V DC

Continuous Power Output:

9 kW

Maximum Power Loss:

160 Watts

Operating Ambient Temperature:

+5°C to +45°C
