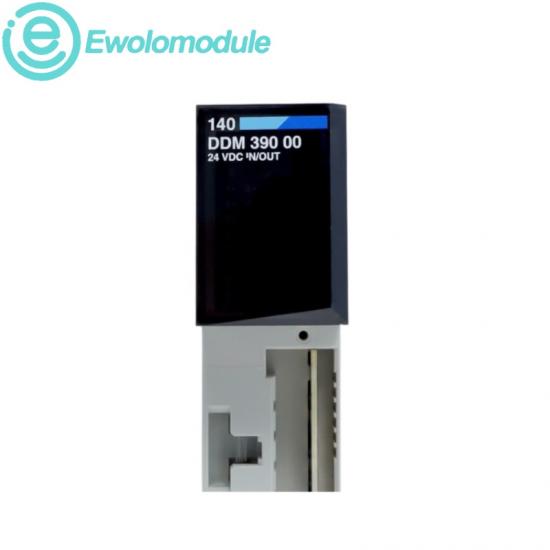

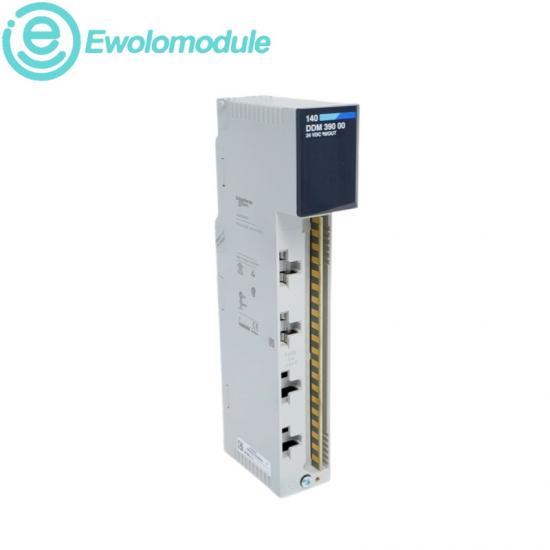

Schneider Electric 140DDM39000
Modicon Quantum
Mixed Discrete I/O Module
|
I/O ROLE
16 inputs / 8 outputs
Combines 24 V DC sink inputs with solid-state outputs for compact field-signal handling in an installed Quantum rack.
|
Product snapshot
Mixed discrete I/O module for established Modicon Quantum systems. Match the exact reference, rack slot, field supply, fuse arrangement and terminal mapping before commissioning.
Explore other Schneider Electric products →
| 02 · DIAGNOSTICS & CHANGEOVER |
PROTECTION SERVICE |
| Diagnostics & Protection |
Installation & Upgrades |
|
STATUS AND FUSE REVIEW
Read Active and fault LEDs, then check group fuses and field-power presence before replacing the module.
|
EXACT REFERENCE MATCH
Retain 140DDM39000 and its Quantum rack assignment; visually similar I/O modules can use different channel logic.
|
|
CHANNEL ISOLATION
Separate field wiring from the module and test input and output groups against the documented circuit map.
|
TERMINAL PRESERVATION
Label removable terminal connections and capture polarity, commons and group supply wiring before removal.
|
|
POINT-BY-POINT TEST
Prove each commanded output and observed input with controlled loads after the rack is re-energized.
|
RETURN TO SERVICE
Verify I/O addressing, PLC configuration, fuse health and final machine interlocks before release.
|
Technical data
|
INPUT CHANNELS
16, two groups of 8
|
OUTPUT CHANNELS
8 solid-state, two groups of 4
|
FIELD VOLTAGE
24 V DC
|
|
OUTPUT LOAD
0.5 A per point
|
BUS CURRENT
330 mA
|
OPERATING RANGE
0 to 60 °C
|
| 03 · BRAND & APPLICATIONS |
PRODUCT REFERENCES |
| Brand characteristics |
Application fields |
|
Quantum lifecycle support
Schneider Electric documentation supports disciplined service of installed Modicon Quantum I/O assets.
|
Process automation
Mixed input and output handling for established PLC-controlled production equipment.
|
|
Grouped field protection
Channel grouping and fuse indication help technicians isolate field-power and load faults.
|
Utilities and infrastructure
Remote and centralized I/O service in water, energy and material-handling systems.
|
|
Deterministic I/O response
Solid-state outputs and defined addressing support predictable control-cycle behavior.
|
Machine modernization
Like-for-like maintenance while migration to Modicon X80 or M580 is planned.
|
|
Traceable module identity
The complete order code keeps rack configuration and spare selection tied to project records.
|
Panel maintenance
Replacement of mixed I/O hardware during scheduled cabinet and rack outages.
|
Product references
| Schneider Electric |
| 140CPU65150 |
140CPU67160 |
140CRA93200 |
140CRP93200 |
| 140DDI35300 |
140DDO35300 |
140ACI04000 |
140ACO02000 |
| 140ARI03010 |
140AVI03000 |
140DAO84000 |
140DAI74000 |
| 140NOE77101 |
140NOC78000 |
140XBP01000 |
140XTS00200 |
| BMXP342020 |
BMXAMI0410 |
BMXDDI1602 |
BMXDDO1602 |
| Bachmann |
| MX213 |
MX220 |
MC210 |
MC212 |
| DI232 |
DO232 |
AI204 |
AI208 |
| AO202 |
DIO248 |
NT255 |
FS212 |
| PTAI216 |
AIO288 |
CNT204 |
RS204 |
| EM213 |
MIO106 |
MPC270 |
SCT202 |
| 04 · SERVICE & POLICY |
QUOTATION SUPPORT |
| Quote |
Disclaimer |
|
IDENTIFY
Provide 140DDM39000, the Quantum rack reference and required quantity. Include a clear nameplate photo, slot position, removable terminal style and current field-wiring record so the exact execution can be checked before quotation.
|
INDEPENDENT SUPPLY
This website is not affiliated with, endorsed by, or authorized by any of the listed manufacturers or trademarks. Ewolomodule is not an authorized distributor, dealer, or representative of the products displayed on this website.
|
|
VERIFY
Confirm the module reference, rack compatibility, I/O addressing, field voltage, fuse arrangement, terminal mapping and current hardware condition before replacement planning.
|
TRADEMARK OWNERSHIP
All product names, trademarks, brands, and logos used on this website are the property of their respective owners.
|
|
QUOTE & DELIVERY
State the delivery destination, required date and preferred transport method. Availability, condition, warranty, lead time, protective packing and shipping terms will be checked before quotation, together with any documentation required for the maintenance outage.
|
IDENTIFICATION PURPOSE
The description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder.
|
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
