OFFICIAL PRODUCT NAME

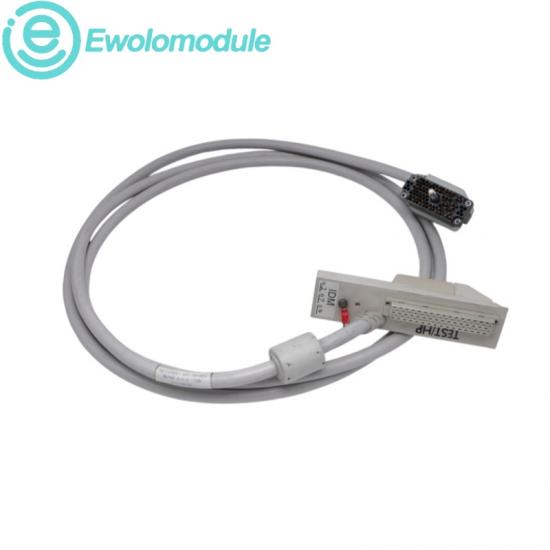

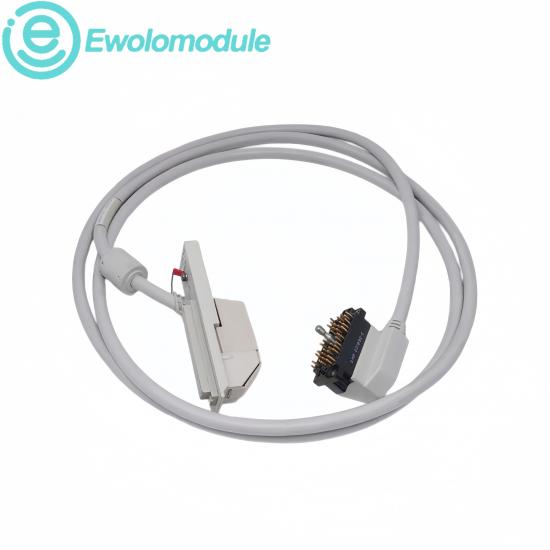

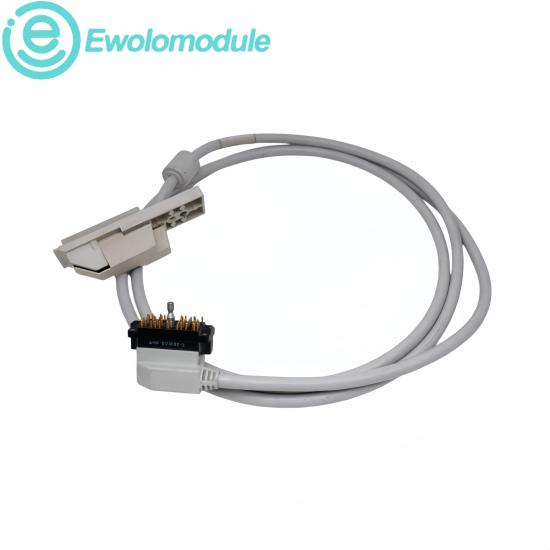

SDM Interconnect I/O Cable Assembly

MODULE-TO-MTA SIGNAL CONNECTION

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

SIEMENS 16137-114|Documented interconnect cabling for APACS+ and QUADLOG

DIAGNOSTIC & CONTROL MATRIX

CALL +86 17359287459 EMAIL sales9@apterpower.com

Siemens 16137-114 is a 3 m marshalled interconnect I/O cable assembly used between APACS+ or QUADLOG modules and termination assemblies.

TECHNICAL SPECIFICATIONS

Manufacturer	Siemens	Part number	16137-114
Assembly type	Marshalled I/O cable	Cable length	3 m / 9.8 ft
Voltage rating	600 V AC	Control systems	APACS+ / QUADLOG
Connection role	Module-to-MTA link	Construction	Shielded cable assembly

DIAGNOSTICS & PROTECTION

Inspect connector keying, shell condition, shielding and end-to-end continuity before installation. Isolate the cabinet and replace damaged cable assemblies rather than repairing molded terminations.

KEYING CHECK

SHIELD TEST

CONTINUITY

MONITORING & CONTROL

Confirm stable field-signal transfer, correct channel mapping and noise-free operation after connection. Compare module indications with the marshalled termination drawings during commissioning.

CHANNEL MAP

SIGNAL PATH

NOISE CHECK

BRAND & APPLICATION COMPASS

BRAND CHARACTERISTICS

Siemens process-control hardware uses documented part numbers, engineered termination schemes and coordinated system components for traceable long-term maintenance.

DOCUMENTED

SYSTEM MATCH

SERVICEABLE

APPLICATION FIELDS

Used in process-control cabinets, marshalled I/O assemblies and field-signal interconnections for APACS+ and QUADLOG installations.

PROCESS I/O

MARSHALLING

FIELD SIGNALS
