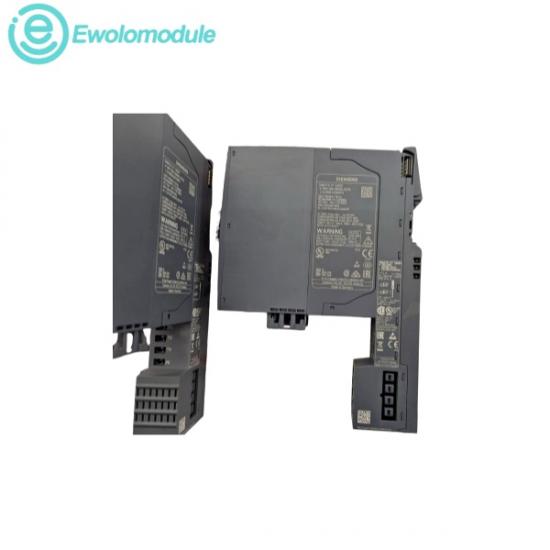

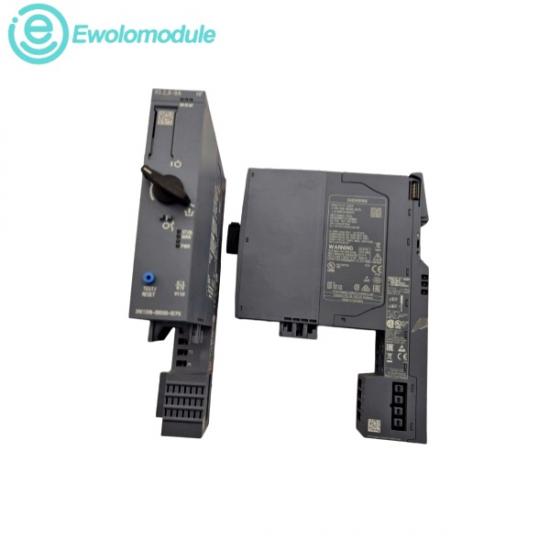

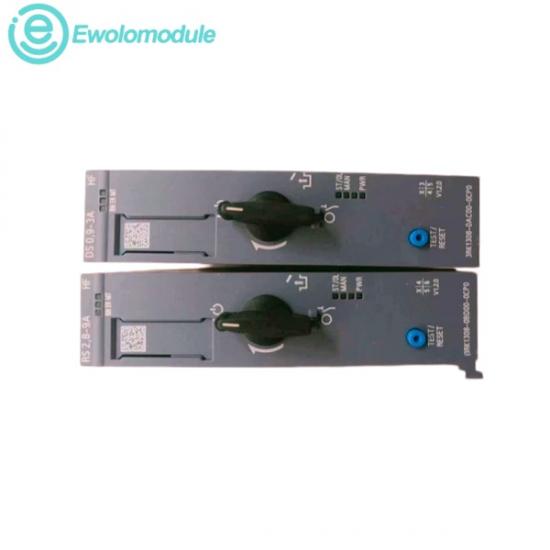

Siemens 3RK1308-0BD00-0CP0 is a High Feature reversing starter for ET 200SP distributed I/O stations. It combines electronic switching, solid-state overload protection, fuse-based short-circuit protection, direct and reverse operation, and bus diagnostics. The 3RK1308-0BD00-0CP0 provides compact motor-feeder control for automated equipment.
The Siemens 3RK1308-0BD00-0CP0 is an ET 200SP High Feature reversing motor starter designed for three-phase loads up to 4 kW at 400 V. It provides direct and reverse starting, hybrid electronic switching, solid-state overload protection, fuse-based short-circuit protection, intrinsic device protection, and optional 3DI/LC expansion. The 3RK1308-0BD00-0CP0 supports PROFIBUS DP, PROFINET and PROFIenergy measured-value and shutdown functions, with a 4-byte input and 2-byte output address space for integrated diagnostics and energy management.
| Motor power at 400 V | 4 kW max | Maximum current consumption | 180 mA |
|---|---|---|---|
| Overload adjustment range | 2.8–9 A | Power loss per pole | 1.7 W |
| Rated insulation voltage | 500 V | Breaking capacity at 400 V | 55 kA |
| Rated surge withstand | 6 kV | Operating temperature | −25 to +60 °C |
| Maximum operating frequency | 1 operation/s | Storage temperature | −40 to +70 °C |
Provides forward and reverse control, overload protection and short-circuit coordination for three-phase conveyor motors.
Controls compact bidirectional motor feeders within ET 200SP stations used for automated positioning and transfer mechanisms.
Operates reversible agitators, feeders and handling equipment with bus diagnostics and electronic motor protection.
Uses PROFIenergy measured values and shutdown functions to support diagnostics and controlled energy reduction in automated production cells.
