SIEMENS • PRODUCT DETAILS

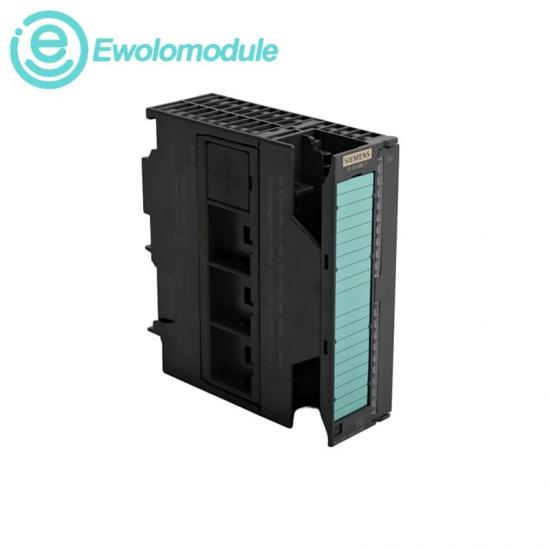

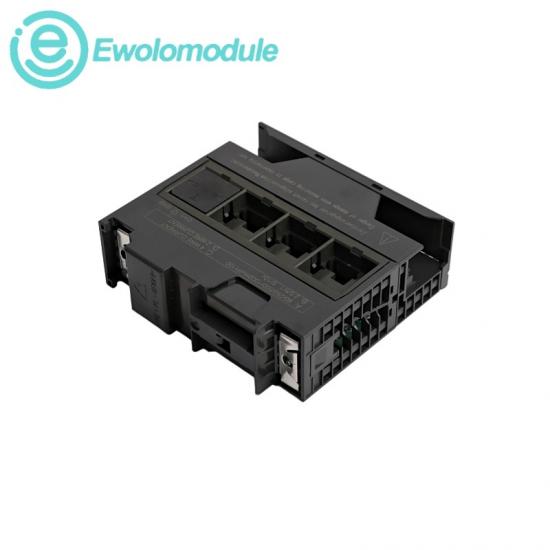

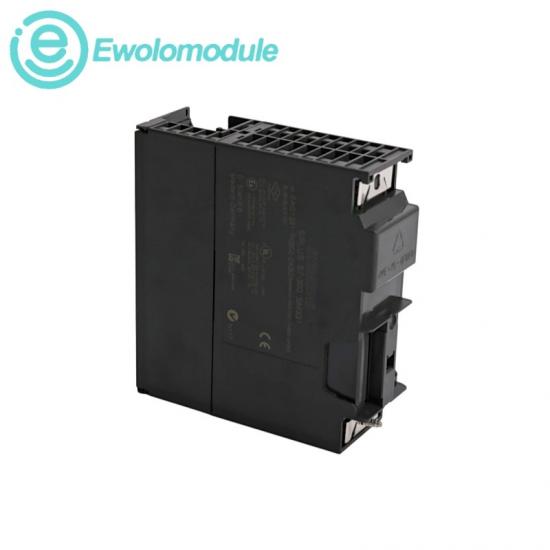

SIPLUS S7-300 SM 331 8AI Thermocouple Analog Input Module

6AG1331-7PF11-4AB0

PRODUCT IDENTITY

A conformal-coated SIPLUS S7-300 eight-channel analog input module for thermocouple measurement with 16-bit conversion and diagnostics.

☎+86 17359287459 ✉sales9@apterpower.com

SPECIFICATIONS • OFFICIAL PRODUCT DATA

Communication, connectivity and configuration

COMMUNICATION & CONNECTIVITY

Eight isolated analog input channels for thermocouple signals

Uses one 40-pole front connector and the SIMATIC S7-300 backplane bus

Supports thermocouple types B, E, J, K, L, N, R, S, T and TXK variants

CONFIGURATION & PROGRAMMING

Select thermocouple type, measuring range and interference suppression in STEP 7

Configure 16-bit conversion with a typical 50 ms channel processing time

Enable diagnostics and wire-break monitoring for the installed sensor circuits

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

SIPLUS S7-300 SM 331

BASE MODULE

6ES7331-7PF11-0AB0

ANALOG INPUTS

8 channels

SENSOR TYPE

Thermocouples

RESOLUTION

16 bit

CONVERSION TIME

50 ms

FRONT CONNECTOR

1 x 40-pole

POWER SUPPLY

24 V DC

RECOMMEND • APPLICATION CONTEXT

Industry relevance and application scope

RELATED INDUSTRIES

Metals, furnaces, energy, chemical processing, food production and harsh-environment temperature measurement.

APPLICATION SCOPE

Multi-channel thermocouple acquisition, process-temperature monitoring and S7-300 analog signal integration.
