01 / PRODUCT DETAILS

SIMATIC HMI / TEXT DISPLAY

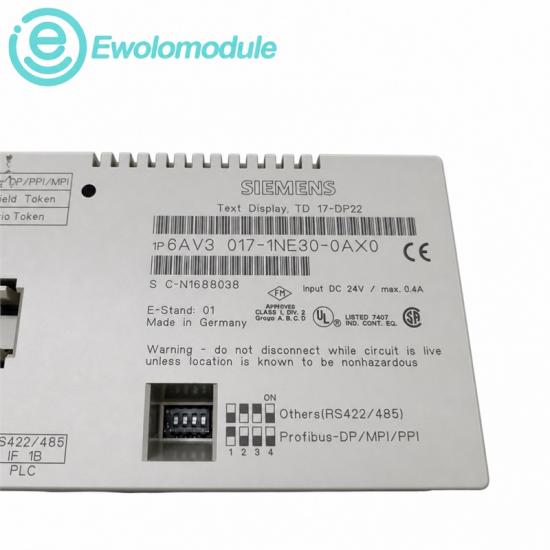

6AV3017-1NE30-0AX0

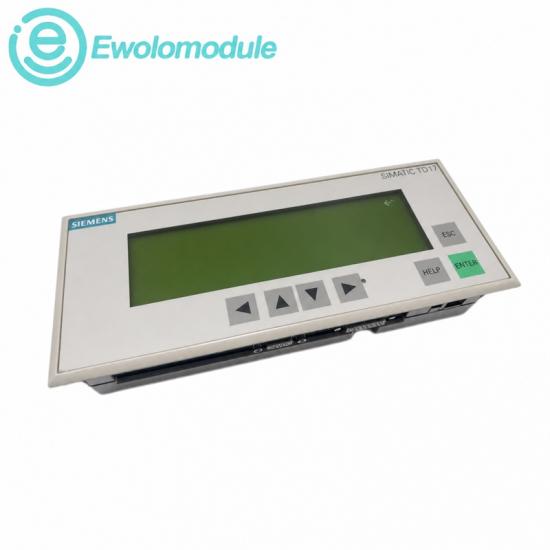

SIMATIC HMI TD17 Text Display

LED-backlit text display with 8 lines of 40 characters for SIMATIC controller communication over PROFIBUS DP.

BRAND

Siemens

PRODUCT SERIES

SIMATIC HMI TD17

OFFICIAL NAME

TD17 Text Display

OFFICIAL SOURCE

Siemens technical datasheet

CONDITION

New Original

WARRANTY

One year

IN STOCK

2 pcs

02 / SYSTEM POSITION

Operator text visualization for SIMATIC systems

PRODUCT DESCRIPTION

A compact text interface for machine operation

The TD17 provides an LED-backlit monochrome display, membrane-key operation and serial or PROFIBUS communication for SIMATIC automation systems.

PRODUCT TYPE

TD17

ORDERING CODE

The complete Siemens article number identifies this TD17 hardware configuration; no separate suffix decoding is published.

OFFICIAL TECHNICAL DATA

Verified operating profile

Article number

6AV3017-1NE30-0AX0

Display

SCALANCE TD17

Text capacity

8 lines × 40 characters

Interfaces

24 V DC

Rated current

0.34 A

Active power

8.4 W typical

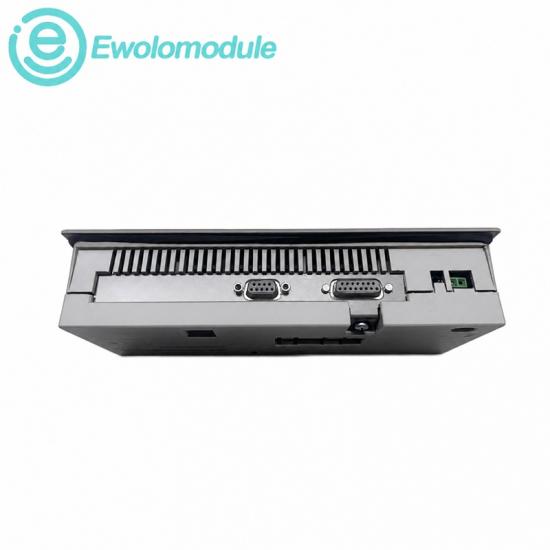

Interfaces

TTY, RS232, RS422 and RS485

Protocols

PROFIBUS and MPI

Protection

IP65 front / IP20 rear

Configuration

ProTool / Lite V2.51 or higher

SYSTEM CONNECTION

SIMATIC controller

PROFIBUS DP

TD17

Operator messages

Readable status

LED-backlit 8-line text display.

Flexible links

Serial interfaces plus PROFIBUS and MPI.

Panel protection

IP65 protection at the operator front.

03A / APPLICATION

Text-based machine operation

Operator messages

Clear status and alarm text at the machine.

Controller connection

PROFIBUS and MPI links to SIMATIC systems.

Retrofit panels

Compact HMI replacement for installed equipment.
