SIEMENS ARTICLE NUMBER 6AV3505-1FB12	PRODUCT DETAILS

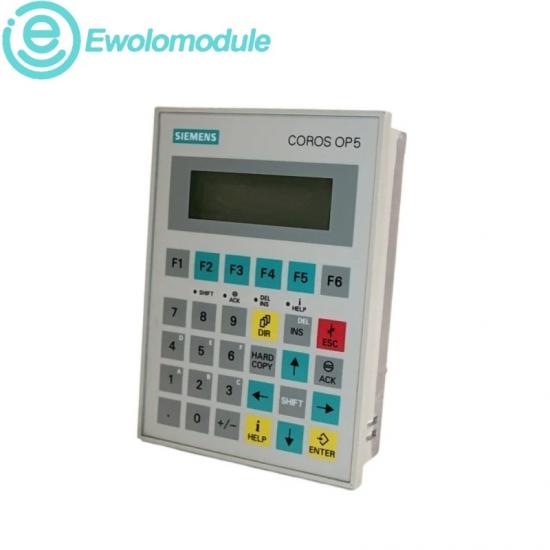

	OFFICIAL PRODUCT NAME SIMATIC OP5/A2 Operator Panel Compact OP5/A2 operator panel with a four-line display, 20 characters per line and industrial serial, MPI, PPI and PROFIBUS communication options.

Warranty
One year

Availability
In stock

Tel
+86 17359287459

Email
sales9@apterpower.com

TECHNICAL DATA

PERFORMANCE & FIRMWARE

PANEL TYPE OP5/A2	DISPLAY 4 lines	CHARACTERS 20 per line	INTERFACE 1 TTY or V.24
INTERFACE 2 RS422 or RS485	PLC LINKS MPI PPI PROFIBUS DP	SUPPLY VOLTAGE 24 V DC	MOUNTING Panel mounting

PERFORMANCE & EFFICIENCY

The four-line, 20-character display provides clear local status and operator prompts with low control-cabinet overhead. Multiple serial and fieldbus interfaces support integration with legacy SIMATIC installations.

FIRMWARE & UPDATES

This legacy panel has no current firmware-update path. Retain the original configuration project, transfer cable details, character sets and PLC communication parameters before replacement or repair.

BRAND & APPLICATIONS

BRAND CHARACTERISTICS

Siemens SIMATIC legacy HMI platform; compact keypad operation; flexible serial and SIMATIC controller communication interfaces.

APPLICATION FIELDS

Legacy S5 and S7 machine interfaces; local operator stations; retrofit projects; maintenance of production lines using OP5 configuration assets.
