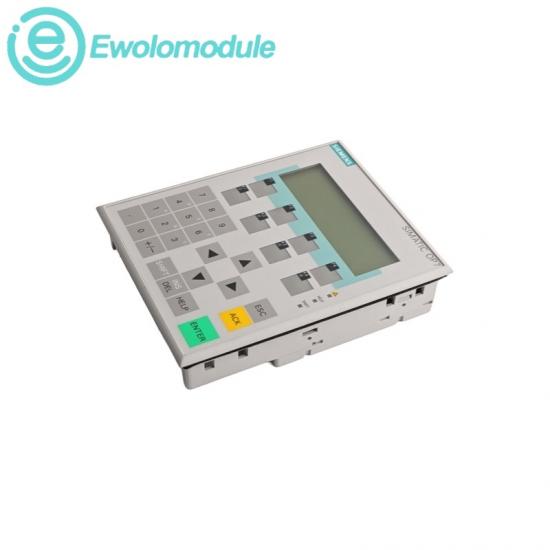

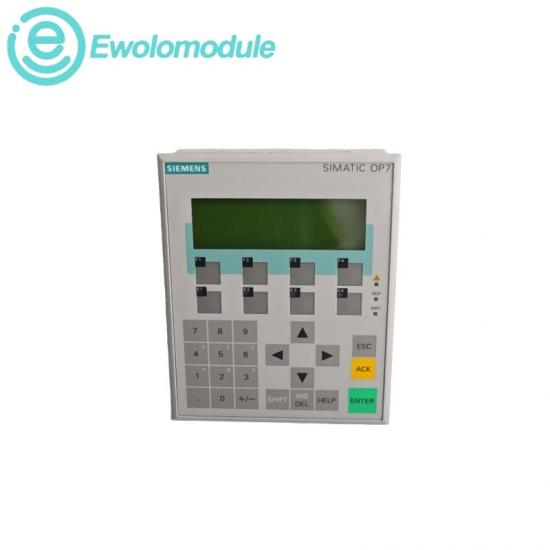

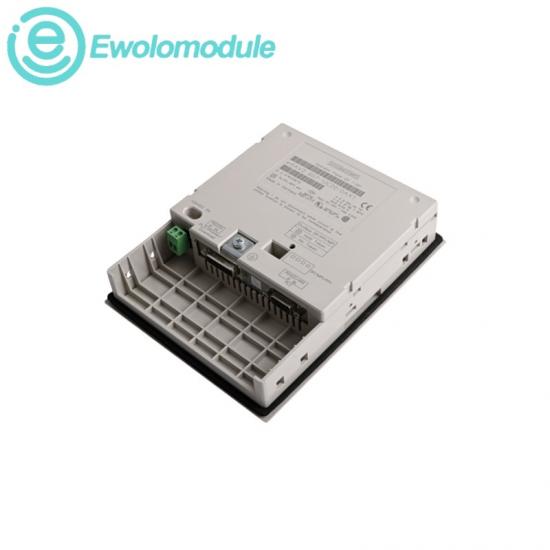

SIEMENSSIMATIC HMI / OP7

01 / PRODUCT DETAILS

6AV3607-1JC00-0AX1

OP7/PP Operator Panel

A local operator interface for established machine installations.

ConditionNew Original

WarrantyOne year

In stock1

Official data sourcesSiemens product record · OP7 / OP17 Equipment Manual, 04/99

Technical record

02 / SPECIFICATIONS

Product position

Configured screens display PLC values and accept operator entries at the machine.

Interaction & interface

DisplayBacklit LCD · 4 lines × 20 characters

Keyboard8 function keys + 22 system keys

Configuration memory128 KB Flash

Serial interfacesIF1A: RS232 / TTY
IF1B: RS422 / RS485

Electrical & environmental

Rated supply24 V DC · permitted 18–30 V DC

Maximum current240 mA at 24 V DC

Enclosure protectionFront IP65 · rear IP20

Operating temperature0–50°C, vertical installation

Ordering code note

The complete article identifies the PP communication version. Match the full code; OP7/DP and DP-12 are different variants.

System connection

Compatible with SIMATIC S5 using AS511/FAP and SIMATIC 500/505 using the configured serial driver. Select the matching project and cable. This PP version has no MPI or PROFIBUS-DP connection.

Message handling

Event and alarm buffers.

Recipe handling

Grouped PLC data transfer.

Operator guidance

Context-specific help texts.
