PRODUCT DOSSIER

OP7

SIEMENS · SIMATIC HMI OP7 · VERIFIED IDENTITY

6AV3607-1JC20-0AX1

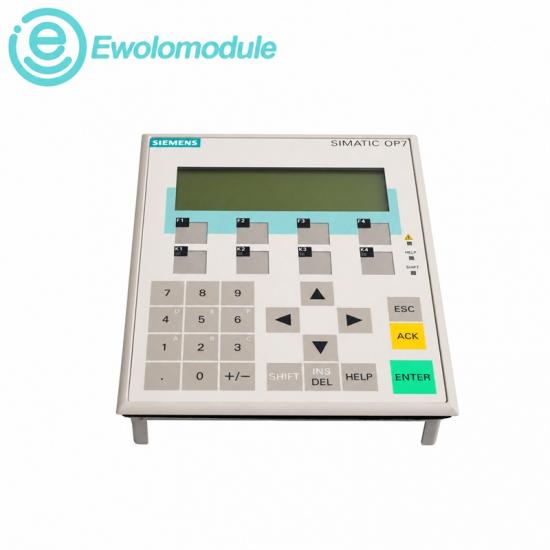

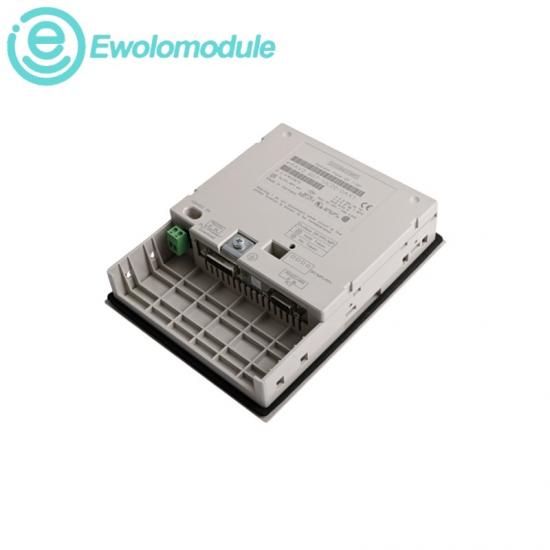

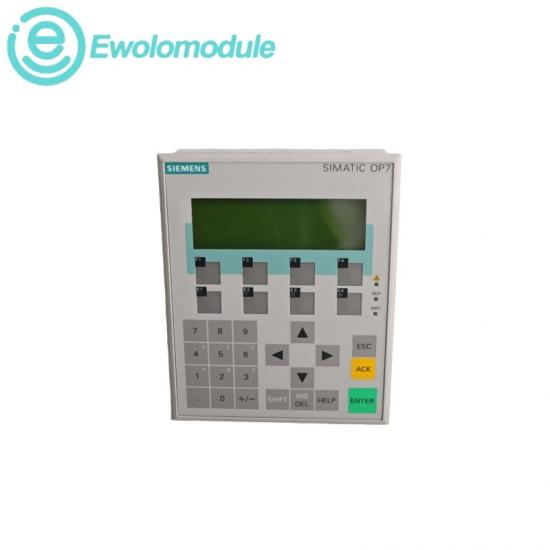

OP7/DP Operator Panel

A compact operator panel for text-based monitoring and control in established industrial machines.

BRANDSiemens

PRODUCT SERIESSIMATIC HMI OP7

OFFICIAL NAMEOP7/DP Operator Panel

PRODUCT ROLEText-based PROFIBUS operator panel

CONDITIONNew
Original

WARRANTYOne year

IN STOCK1

OFFICIAL DATA SOURCE◆Siemens product data search — 6AV3607-1JC20-0AX1

SYSTEM POSITION

Compact text HMI for established PROFIBUS machines

PRODUCT DESCRIPTION

Presents alarms, values and operator prompts through a durable membrane-key interface where graphical touch operation is unnecessary.

POSITIONINGCompact text-based machine operation

ORDERING CODE6AV3607-1JC20-0AX1 · retain as one complete identifier

OFFICIAL TECHNICAL DATA · 08 SIGNAL POINTS

DISPLAY TYPEMonochrome LC line display

DISPLAY FORMAT4 lines x 20 characters

BACKLIGHTINGLED; approx. 100,000 h MTBF

OPERATING METHODMembrane keys

CENTRAL NODEOP7/DPText HMI

FUNCTION KEYS8; 4 with LEDs

USER MEMORY128 KB Flash / RAM

SUPPLY VOLTAGE24 V DC

INTERFACESRS232, RS422 and RS485 up to 1.5 Mbit/s

SYSTEM CONNECTIONSerial link + 24 V DC

Clear text operationFour-line display supports concise messages and values.

Tactile controlDedicated function and system keys suit gloved operation.

PROFIBUS accessOP7/DP communicates with SIMATIC S7 and M7 systems.

ORDERING NOTEThe 1JC20 version is the OP7/DP PROFIBUS model with a 1.5 Mbit/s bus interface. Match it separately from other OP7 communication variants.

APPLICATION
CONSTELLATION

Where this product fits

Machine panelsLocal start, status and alarm interaction.

Packaging equipmentCompact text prompts for repetitive processes.

Legacy cellsReplacement in installed OP7/DP projects.

Utility skidsSimple value display and keyed commands.
