01PRODUCT DETAILS · OFFICIAL IDENTITY

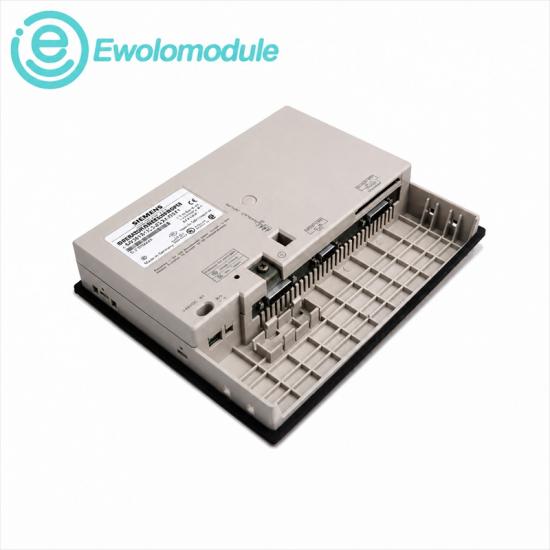

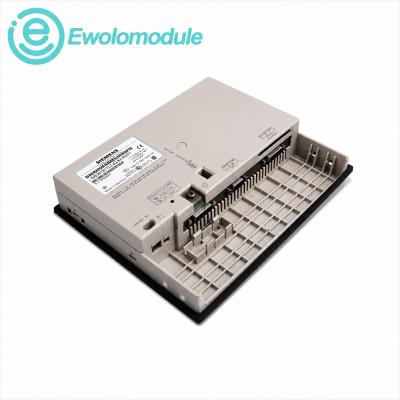

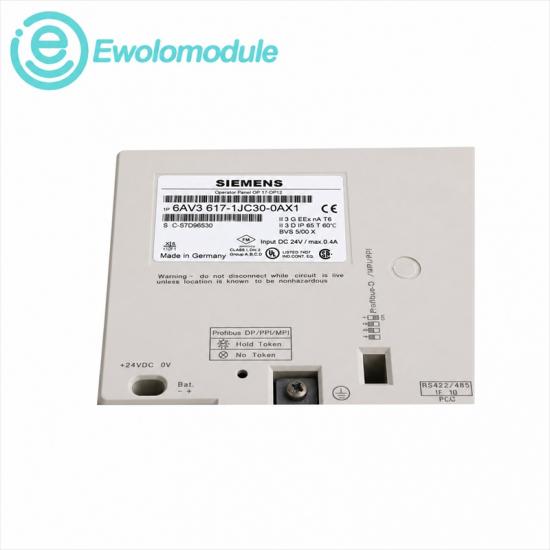

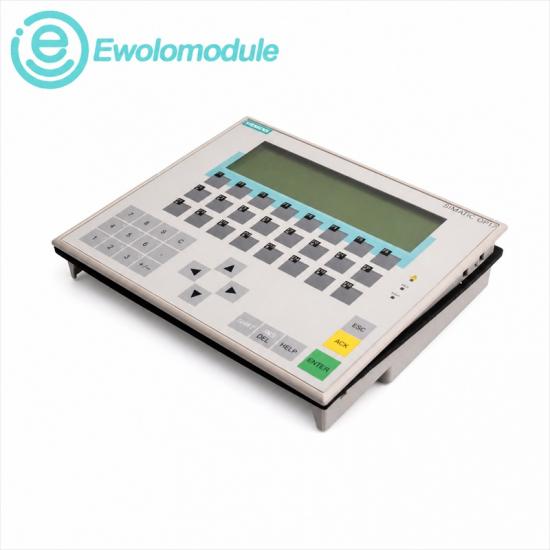

Siemens 6AV3617-1JC30-0AX1 SIMATIC HMI OP17/DP12 Operator Panel

SIMATIC operator panel for local machine interaction in established automation installations.

BRANDSiemens

MODEL6AV3617-1JC30-0AX1

SERIESSIMATIC HMI OP17

CONDITIONNew Original

WARRANTYOne year

IN STOCK1 pc

Official data source: Siemens SIMATIC HMI OP7/OP17 equipment documentation and official product record.

SPECIFICATIONS

Functional configuration and verified technical data

SIMATIC HMI OP17 · complete article number 6AV3617-1JC30-0AX1

PRODUCT DESCRIPTIONA SIMATIC operator panel with an LED-backlit LC display, keyboard operation and PROFIBUS DP communication up to 12 Mbaud for established automation systems.

ManufacturerSiemensArticle number6AV3617-1JC30-0AX1Product typeSIMATIC HMI OP17/DP12DisplayLED-backlit LC displayDisplay format4x20 / 8x40 lines and charactersOperationMembrane-key operator panelNetworkPROFIBUS DPTransfer rateUp to 12 MbaudController supportSIMATIC S5, 505, S7 and M7ApprovalsUL and CSA

POSITIONING
Text-based operator control for installed SIMATIC and PROFIBUS systems.

SUFFIX IDENTITY
The complete Siemens article number identifies this exact configuration.

SYSTEM CONNECTION
PROFIBUS DP connection to supported SIMATIC and 505 controllers.

Text-based operation
Backlit display for process messages and values.

Keyboard control
Dedicated operator keys for machine functions.

PROFIBUS integration
Communication at rates up to 12 Mbaud.

03 · RECOMMAND

Applications and two-brand model reference

Machine operation
Text-based control and monitoring.

Process indication
Display of messages and process values.

PROFIBUS systems
Operator access on DP networks.

Lifecycle support
Exact OP17/DP12 replacement.
