PRODUCT DETAILSSIEMENS

ARTICLE NUMBER

6AV6542-0BB15-2AX0

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

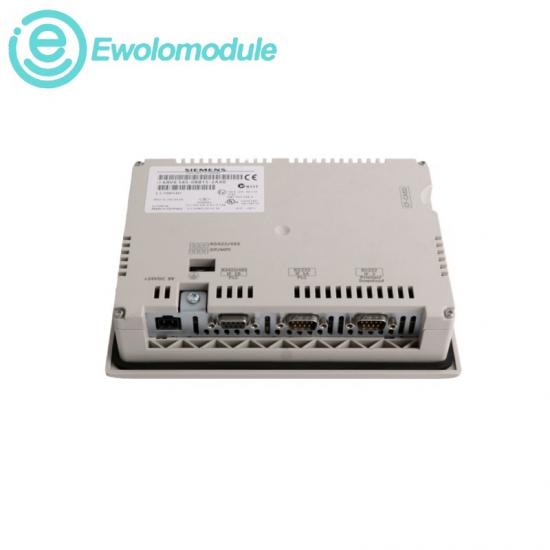

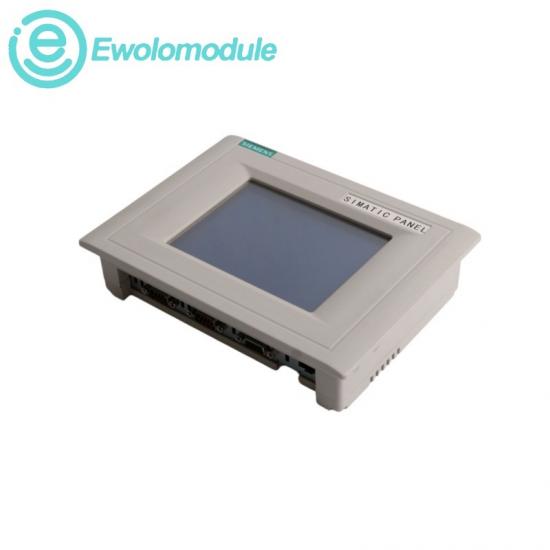

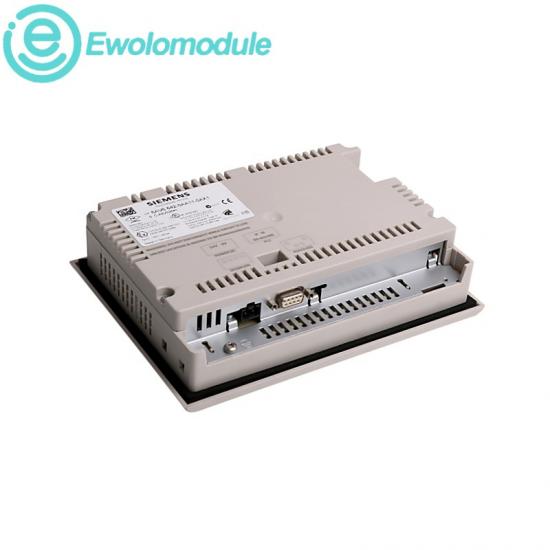

SIMATIC Panel OP 170B Operator Panel

SIMATIC HMI / OP 170B

Description: Provides local operator control through a blue-mode STN display with MPI/PROFIBUS DP communication and removable CF storage.

Tel : +86 17359287459Email : sales9@apterpower.com

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

6AV6542-0BB15-2AX0 FUNCTIONAL PROFILE

The OP 170B is a SIMATIC operator panel with a blue-mode STN display for machine visualization and control. It provides MPI/PROFIBUS DP communication, printer connectivity and a CompactFlash card slot.

OFFICIAL TECHNICAL DATA

Article number

6AV6542-0BB15-2AX0

Product type

KEY-PLUG XM-400 Layer 3 Routing

Compatible platform

SCALANCE XM-400

Storage medium

KEY-PLUG

Storage capacity

256 MiB

Layer 3 activation

Supported

Configuration storage

Supported

Device replacement support

Supported

Degree of protection

IP20

Lifecycle status

Phase-out since 01.10.2025

OPERATING ENVIRONMENT

Install in a suitable operator enclosure and maintain the ambient and ingress-protection conditions specified for the OP 170B; the rear of the panel is rated IP20.

INSTALLATION & UPGRADE

Mount in the documented panel cutout, connect the supply and MPI/PROFIBUS DP wiring, then restore the verified ProTool project and CF data. Validate PLC address and baud rate before switchover.

RECOMMAND

SAFETY & COMPLIANCE

Siemens documentation lists CE, FM Class I Division 2, UL and CSA approvals. Maintain the specified enclosure, grounding and separation requirements for the rear IP20 area.

PERFORMANCE EFFICIENCY

A single operator panel combines visualization, serial/fieldbus communication, printer support and CF storage, simplifying legacy-machine operation and project restoration.
