PRODUCT DETAILS

6AV6542-0CA10-0AX0

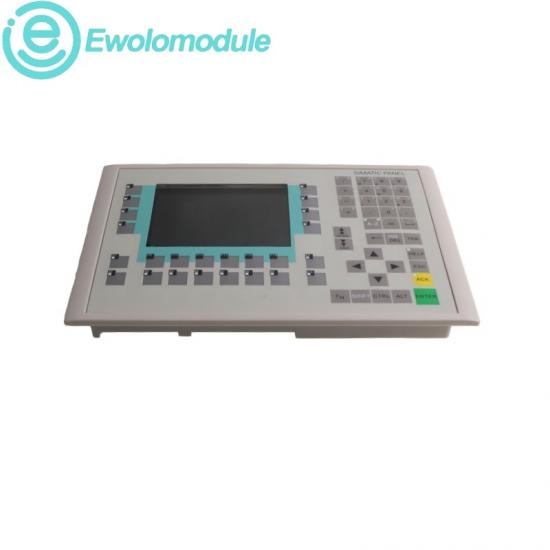

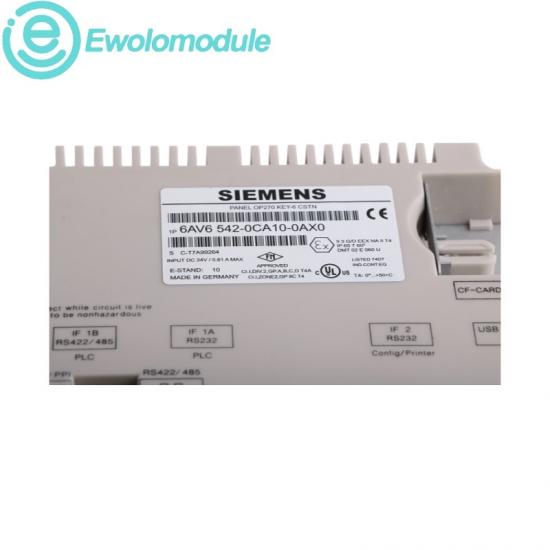

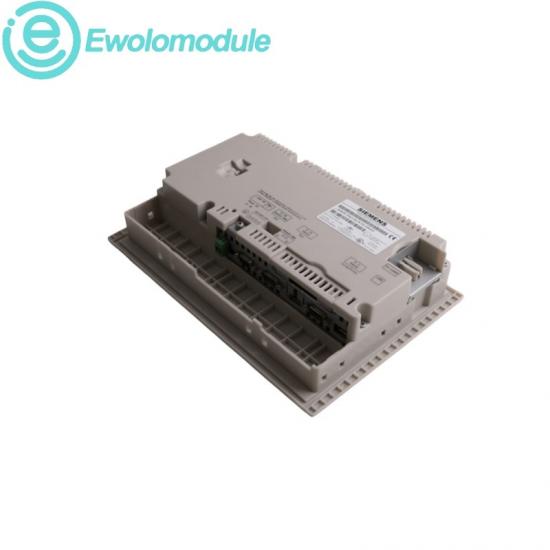

SIMATIC OP 270 6-inch Operator Panel

PRODUCT IDENTITY

Siemens 6AV6542-0CA10-0AX0 SIMATIC OP 270 6-inch Operator Panel

A key-operated HMI with a 5.7-inch CSTN color display, 2 MB configuration memory and MPI/PROFIBUS DP communication for legacy machine operation.

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Standards, system fit and core data

CERTIFICATIONS & STANDARDS

◆CE conformity documented for the OP 270 6-inch MLFB family

◆UL and cUL declarations listed for 6AV6542-0CA10-0AX.

◆UL Recognition to UL 508; unit nameplate confirms the supplied approval status

◆EMC testing includes EN 61000-4 series; radio interference to EN 55011 Class A

COMPATIBILITY & INTEROPERABILITY

◆SIMATIC S7 communication through MPI or PROFIBUS DP

◆SIMATIC S5 communication through AS511 or PROFIBUS DP

◆SIMATIC 505 support through RS232 or RS422/RS485

◆Other supported PLCs connect through RS232 or RS422/RS485 drivers

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

SIMATIC OP 270 6-inch

DISPLAY

5.7-inch CSTN color LCD

RESOLUTION / COLORS

320 × 240 pixels / 256 colors

CONFIGURATION MEMORY

2 MB

OPERATING SYSTEM

MS Windows CE

RATED SUPPLY

24 V DC

PERMISSIBLE RANGE

18 to 30 V DC

POWER CONSUMPTION

Approx. 0.6 A typical; 0.9 A max.

KEYBOARD

36 system keys; 24 configurable function keys

DEGREE OF PROTECTION

Front IP65 / rear IP20

RECOMMAND

Firmware, configuration and related models

FIRMWARE UPDATE

CONFIGURATION & PROGRAMMING

◆Synchronize the panel operating system with the ProTool CS version when a compatibility conflict is reported

◆Configure the OP 270 with SIMATIC ProTool CS from version V6.0

◆Use Siemens PTUpdate and the correct OP/TP270/MP270B image file

◆Transfer projects through the configured serial, MPI or PROFIBUS DP connection

◆Operating-system updates use the IF2 serial interface and a zero-modem cable; back up data before updating

◆Match the ProTool project, selected device and operating-system image before commissioning

6AV6542-0CA10-0AX0 Operator Panel

Operator Panel Datasheet

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Siemens 6AV6542-0CA10-0AX0 SIMATIC OP 270 6-inch Operator Panel

Submit
