SIMATIC TP 270 Six-Inch Color Touch Operator Panel
Product SeriesSiemens SIMATIC TP 270 Touch Panel Series
Product Summary
Verified IdentityLifecycle SourcingBuyer-Ready Data

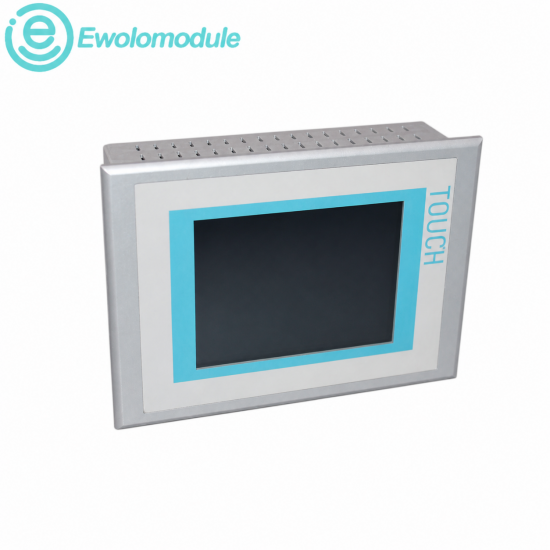

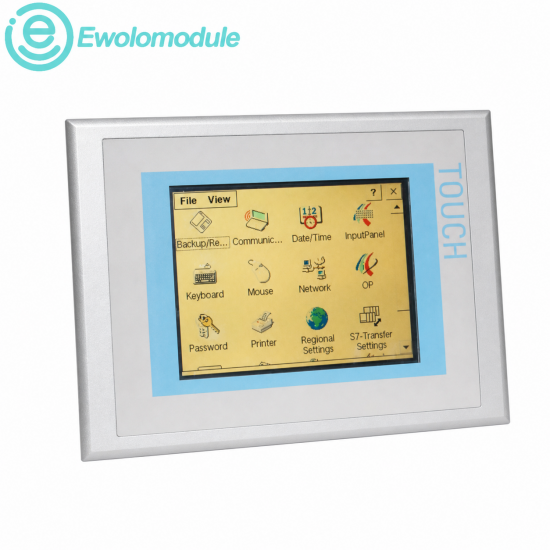

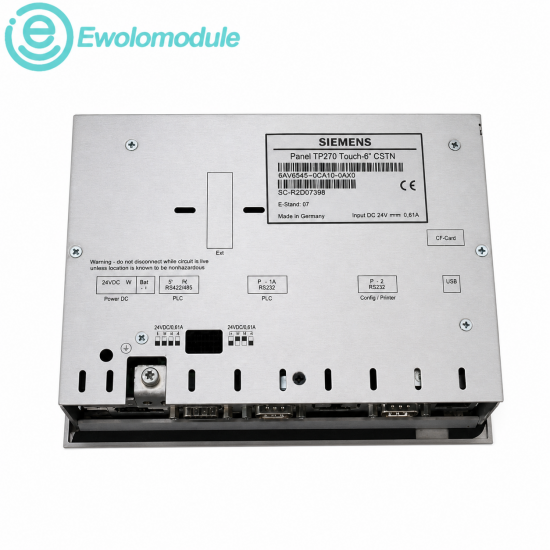

Siemens 6AV6545-0CA10-0AX0 is a SIMATIC TP 270 touch panel with a 5.7-inch color display. 6AV6545-0CA10-0AX0 provides 320 × 240 visualization, 256 colors, 2 MB configuration memory, 24 V operation, alarm handling, recipes, and legacy ProTool compatibility.
Exact-Model ReviewConfirm complete model and product series.
Cross-Brand SourcingAccess current and discontinued inventory.
Secure PreparationPrepare stock in 1–3 working days.
Worldwide SupportProtective packing, delivery, and warranty.
02
Product Specifications & Technical Data
Official product description and buyer-focused operating values
Technical product dossier
Product Description
Siemens 6AV6545-0CA10-0AX0 is a SIMATIC TP 270 operator panel with a 5.7-inch STN color touchscreen, 320 × 240 pixel resolution, 256 colors, 2 MB configuration memory, 24 V DC operation, and engineering support from ProTool V6.0. It provides local visualization, alarms, recipes, diagnostics, and machine-control functions for established automation systems.
Rated supply voltage24 V DC
Rated current consumption0.6 A
Typical active power15 W
Display diagonal5.7 inches
Display technologySTN color
Display resolution320 × 240 pixels
Display colors256
Configuration memory2 MB
03
Industrial Applications & Use Cases
Specific equipment, industries, and practical operating functions
Buyer application guide
Packaging
Legacy Machine HMI
Operate recipes, counts, alarms, setpoints, manual functions, and diagnostics on established packaging equipment.
Automotive
Production Cell Operation
Display equipment status, faults, tooling controls, and operator prompts in installed assembly cells.
Food Processing
Batch and Line Visualization
Present temperatures, steps, recipes, alarms, and cleaning status for mixers, fillers, and process machinery.
Water
Pump and Valve Control
Operate pumps, valves, setpoints, trends, and alarm acknowledgement in local treatment panels.
Material Handling
Conveyor Supervision
Control conveyors, transfers, sorters, and fault-recovery workflows through the existing touch interface.
