Product Details · System Passport◆ ◇ ◆

Siemens · SIMATIC HMI 170 / TP177B

Compact touch operation across PROFINET and PROFIBUS

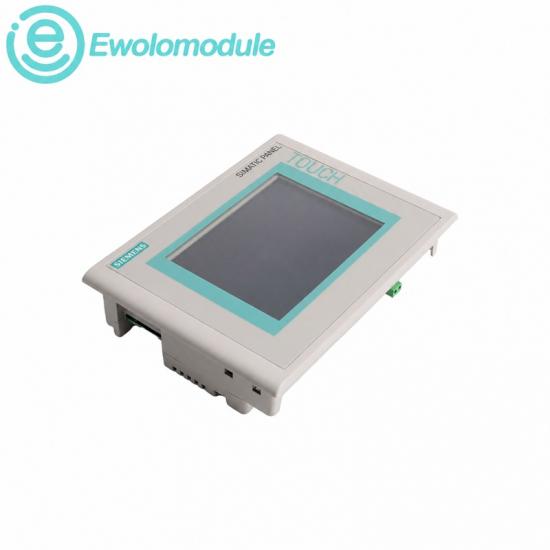

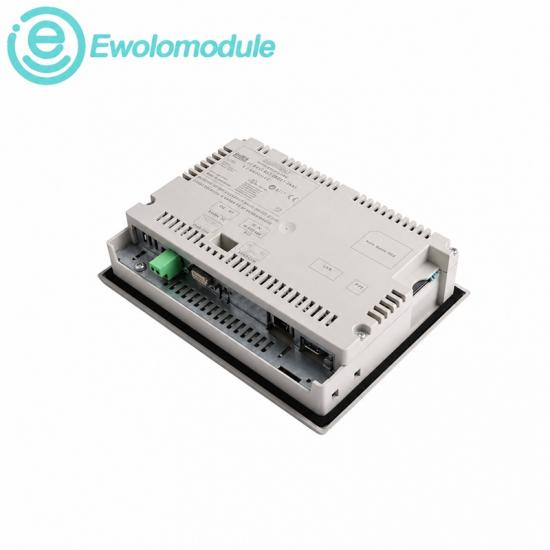

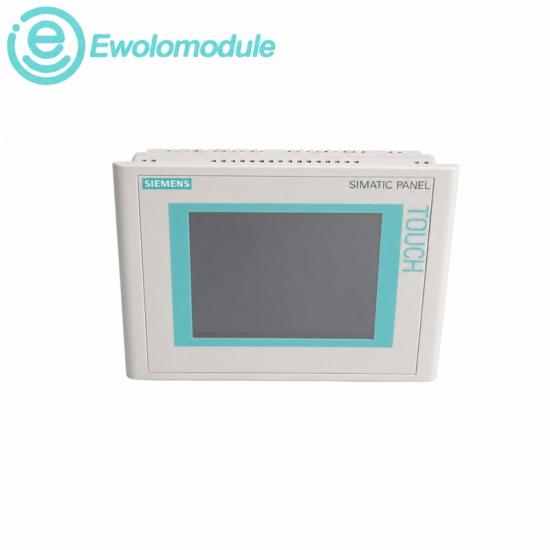

Siemens 6AV6642-0BA01-1AX1 is a SIMATIC touch panel for local machine visualization and operator interaction.

6-inchTouch display

256 colorsSTN visualization

PN / DPAutomation networks

Complete Article Number

6AV6642-0BA01-1AX1

Official Product Identity

SIMATIC TP177B 6-inch PN/DP Touch Panel

BrandSiemens

SeriesSIMATIC HMI 170 / TP177B

ConditionNew Original

WarrantyOne year

In stock2 pc

Official data source: Siemens Industry Mall official product data for 6AV6642-0BA01-1AX1

Specifications · Official Technical Register

Signal path and verified engineering data

Product description

The Siemens 6AV6642-0BA01-1AX1 is a 6-inch SIMATIC touch panel with a 256-color STN display and integrated PN/DP communication for machine-level visualization.

PositioningCompact operator interface for local machine visualization, operation and alarm handling.Suffix identity0BA01-1AX1 identifies the official TP177B 6-inch PN/DP panel version.System linkConnects to automation systems through PROFINET Ethernet, MPI or PROFIBUS DP and is configured with WinCC flexible.

◇6-inchTouch display

◎256 colorsSTN visualization

◇PN / DPAutomation networks

Functional signal path

Machine process
Live operating data

→

Touch operation
Local HMI control

→

Panel network
PN, MPI or DP

→

Controller
Automation data exchange

Article number6AV6642-0BA01-1AX1

Panel typeTP177B PN/DP

Display6-inch STN touch

Color depth256 colors

Ethernet10/100 Mbit/s

Serial interfaceRS485 / RS422

USB interfaceAvailable

EngineeringWinCC flexible 2005
