PRODUCT DETAILSSIEMENS

ARTICLE NUMBER

6AV6647-0AA11-3AX1

Warranty: One year
Availability: In stock

OFFICIAL PRODUCT NAME

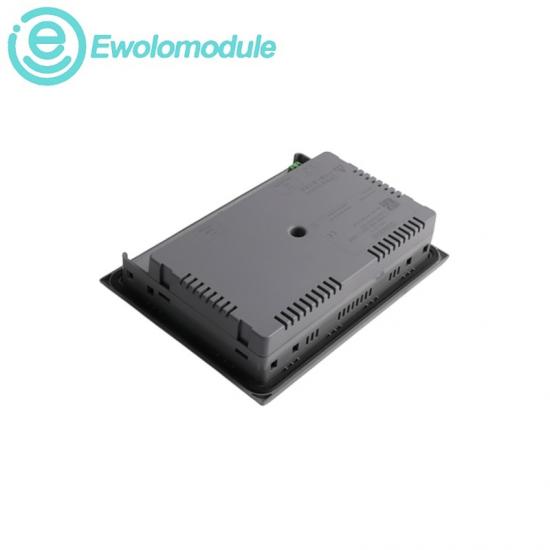

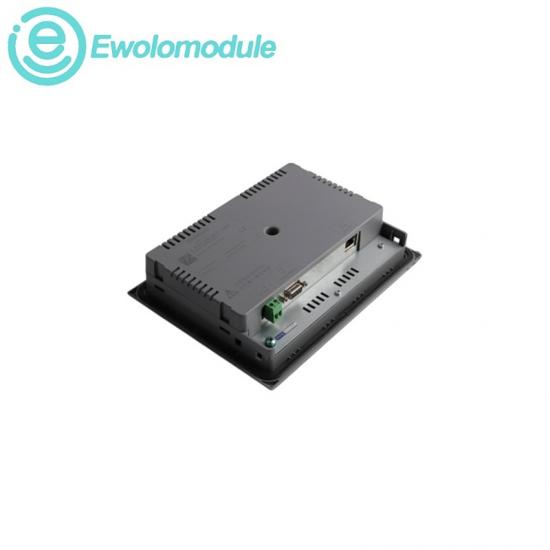

SIMATIC HMI KTP400 Basic Mono PN

Compact key-and-touch operator panel with a 4-inch monochrome STN display and PROFINET interface for machine-level visualization and control.

Tel : +86 17359287459

Email : sales9@apterpower.com

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

The KTP400 Basic mono PN combines key and touch operation with a 4-inch monochrome STN display and one Industrial Ethernet interface. Lifecycle notice: Siemens lists 6AV2123-2DB03-0AX0 as the official successor.

OFFICIAL TECHNICAL DATA

Article number	6AV6647-0AA11-3AX1	Product type	KTP400 Basic mono PN
Display	4-inch STN; 4 gray levels	Resolution	320 × 240 pixels
Operation	Key and touch control	Industrial Ethernet	1 interface; PROFINET
Supply voltage	24 V DC	Protection rating	Front IP65; rear IP20
Configuration	WinCC flexible 2008 SP2 Compact / WinCC Basic V10.5	Operating temperature	0 °C to +50 °C vertical

Certifications & standards	Official Siemens data lists CE, cULus, RCM and KC approvals; listed maritime approvals apply where stated on the device nameplate.
Safety & compliance	The front is rated IP65 and NEMA Type 4/4X, with IP20 at the rear. Use indoors within the documented mounting angle and temperature limits, and verify approvals on the installed unit nameplate.

RECOMMAND

RELATED INDUSTRIES

Machine building, packaging, material handling, food and beverage, process support and general manufacturing.

APPLICATION SCOPE

Local operator control and visualization for compact PROFINET-connected machines, panels and indoor production equipment.
