6AV6648-0CE11-3AX0

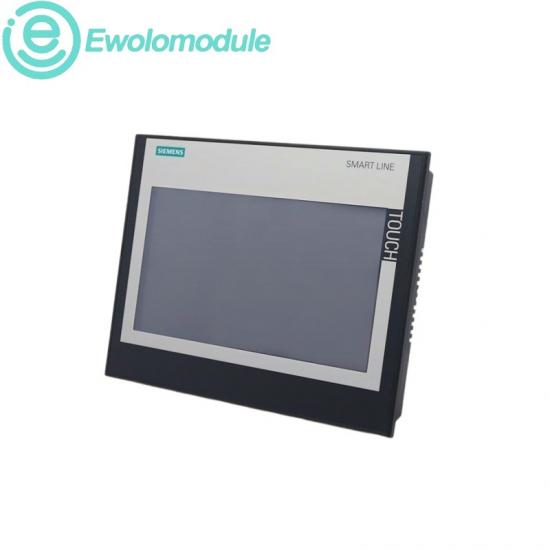

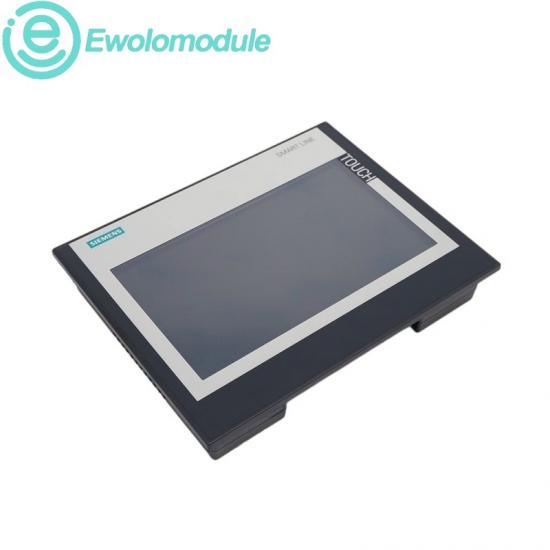

SIMATIC HMI SMART 1000 IE V3 Touch Panel

Series: SIMATIC HMI SMART Line

PRODUCT SNAPSHOT

A 10.1-inch widescreen industrial touch panel with 1024×600 resolution, Ethernet, RS-422/485 and USB connectivity for machine visualization and operation.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

RELATED MODELS

CONNECTION · COMPLIANCE

Interface fit and documented conformity

COMMUNICATION & CONNECTION

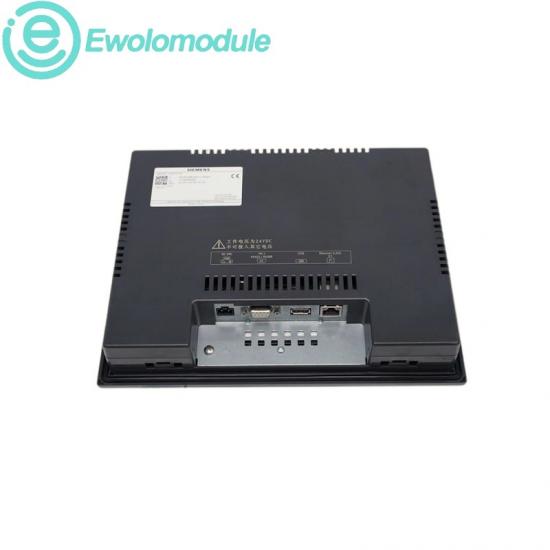

◆ Provides one Industrial Ethernet RJ45 interface for controller communication.

◆ Includes one combined RS-422/485 serial interface and one USB host port.

◆ Supports TCP/IP, EtherNet/IP and MODBUS communication according to the device data sheet.

◆ Configure projects with WinCC flexible SMART and verify controller-driver compatibility.

CERTIFICATION & STANDARDS

◆ CE marking is listed for this SMART Panel variant.

◆ Front protection is IP65 and rear protection is IP20 when correctly installed.

◆ EMC emission performance is specified for EN 55011 Class A industrial environments.

◆ Operate from the documented 24 V DC supply range and approved mounting conditions.

TECHNICAL DATA

Display
10.1-inch TFT

Resolution
1024×600 pixels

Colors
65,536

BRAND PROFILE · APPLICATION MAP

Industrial value and practical use

BRAND CHARACTERISTICS

◆ Purpose-built Siemens HMI for compact machine visualization.

◆ Widescreen touch operation combines alarms, recipes and status displays.

◆ Integrated Ethernet and serial communication support common controller architectures.

◆ Documented engineering software enables repeatable project maintenance.

APPLICATION FIELDS

◆ Packaging and material-handling machines.

◆ Pump, water-treatment and HVAC panels.

◆ Small production cells and operator stations.

◆ SMART Panel replacement and machine modernization.
