Product Details / Official Identity

SiemensSIMADYN D / ITDC

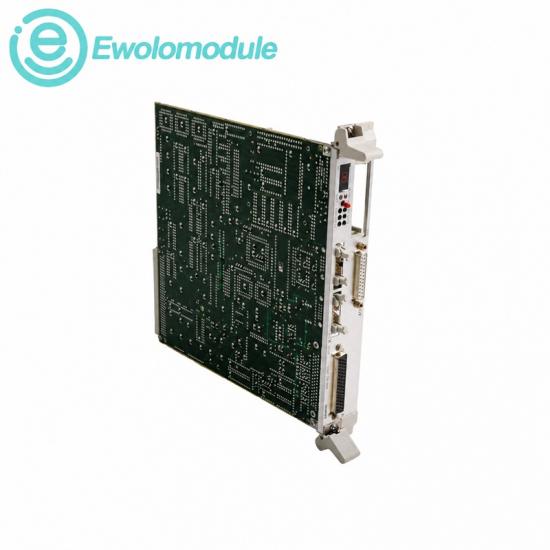

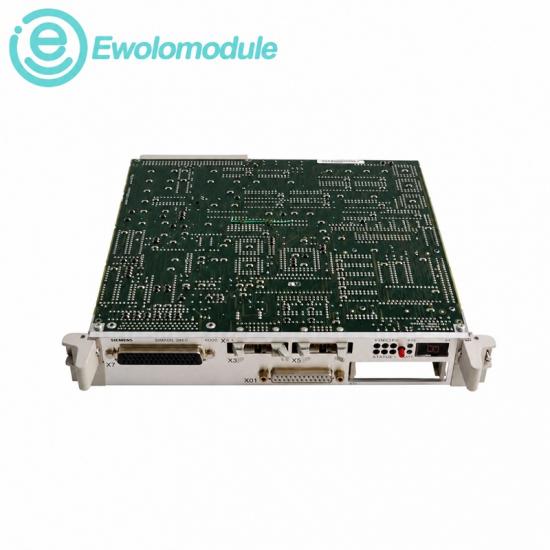

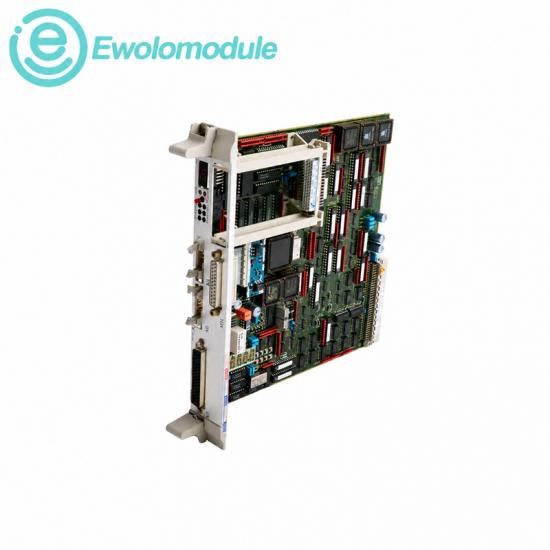

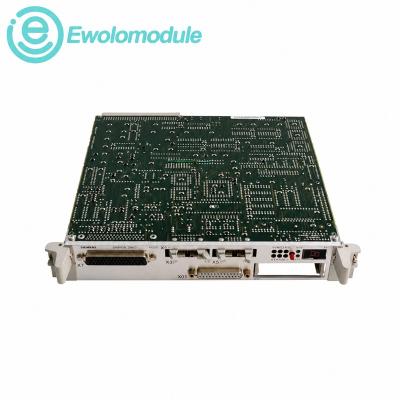

6DD1601-0AH0 ITDC Converter Control Expansion Module

Siemens 6DD1601-0AH0 is a SIMADYN D ITDC expansion module for controlling line-commutated six-pulse converters, especially SITOR power sections.

Product description & official identityITDC Converter Control Expansion Module

Converter control, current regulation and firing-pulse control for established SIMADYN D drive systems.

Article number: 6DD1601-0AH0

BrandSiemens

SeriesSIMADYN D / ITDC

ConditionNew Original

WarrantyOne year

In stock1 pc

Official data source: Siemens SIMADYN D Hardware Manual, section 5.5, Edition 12.2004

Specifications / Official Register

ITDC Converter Control Expansion Module system role and balanced technical data

Product description

Siemens 6DD1601-0AH0 is a SIMADYN D ITDC expansion module for controlling line-commutated six-pulse converters, especially SITOR power sections.

Product positioningConverter control, current regulation and firing-pulse control for established SIMADYN D drive systems.

Suffix identity0AH0 identifies the ITDC converter-control expansion module listed in the official SIMADYN D hardware manual.

System connectionPlugs onto a PM5 or PM6 CPU module through the local expansion bus; one ITDC occupies one additional slot.

6-pulseConverter control

400 HzMaximum firing frequency

1 MHzEncoder input limit

System signal route

Stage 1PM5 / PM6CPU host

Stage 2Local busExpansion link

Stage 3ITDCCurrent control

Stage 4SITORPower section

Official technical register / 8 parameters

Article number6DD1601-0AH0

Converter typeLine-commutated, 6-pulse

Control frequencyUp to 400 Hz

SITOR interface1 interface

Analog outputs2

Digital I/O4 inputs + 4 outputs

Encoder input5 V / 15 V, max. 1 MHz

Ambient operation0°C to +55°C with fan
