Product Details / Official Identity

SiemensSIMADYN D / CS14

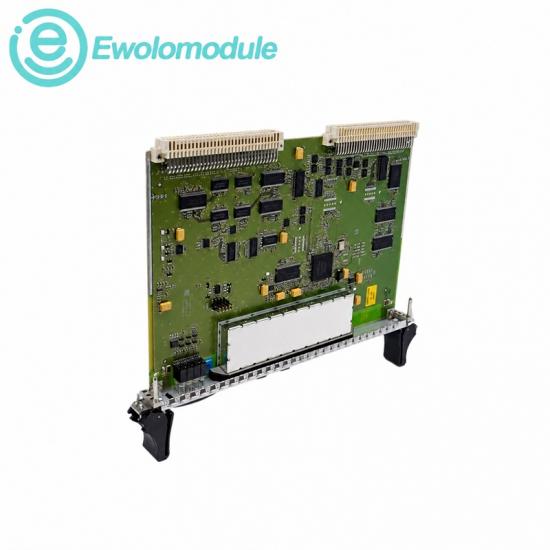

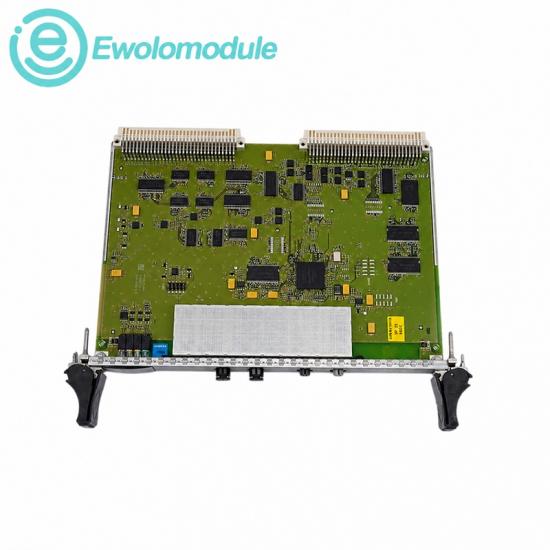

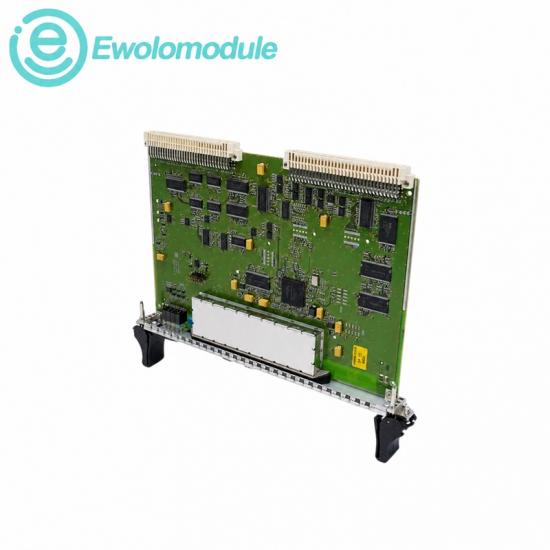

6DD1660-0BA0 SIMADYN D CS14 Fiber-Optic Subrack Coupling Module

Siemens 6DD1660-0BA0 is a CS14 master coupling module for high-speed fiber-optic links between SIMADYN D subracks.

Product description & official identitySIMADYN D CS14 Fiber-Optic Subrack Coupling Module

Backplane-bus extension across multiple SIMADYN D subracks using fiber-optic connections.

Article number: 6DD1660-0BA0

BrandSiemens

SeriesSIMADYN D / CS14

ConditionNew Original

WarrantyOne year

In stock1 pc

Official data source: Siemens SIMADYN D Hardware Manual, section 6.3, Edition 12.2004

Specifications / Official Register

SIMADYN D CS14 Fiber-Optic Subrack Coupling Module system role and balanced technical data

Product description

Siemens 6DD1660-0BA0 is a CS14 master coupling module for high-speed fiber-optic links between SIMADYN D subracks.

Product positioningBackplane-bus extension across multiple SIMADYN D subracks using fiber-optic connections.

Suffix identity0BA0 identifies the CS14 master module with two ICS1 sections for up to eight slave links.

System connectionWorks with CS22 slave modules; one master links up to eight slave subracks over fiber.

8 slavesMaximum links

200 mFiber reach

128 KBCoupling RAM

System signal route

Stage 1Master rackCS14 module

Stage 2Fiber linkBus extension

Stage 3CS22Slave coupling

Stage 4Remote rackShared data

Official technical register / 8 parameters

Article number6DD1660-0BA0

Module typeCS14 fiber-optic master

Slave capacityMaximum 8 CS22 modules

Point-to-point lengthMaximum 200 m

Transfer timeApprox. 5 µs per 16-bit value

Coupling memory128 KB RAM

Backplane busesL bus and C bus

Rack width3 module slots
