SIEMENS • PRODUCT DETAILS

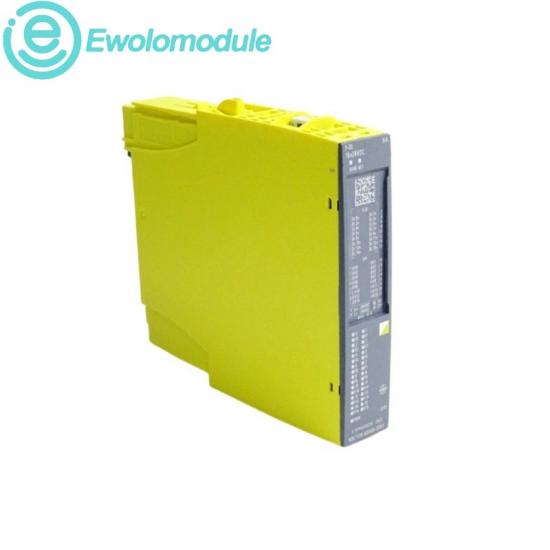

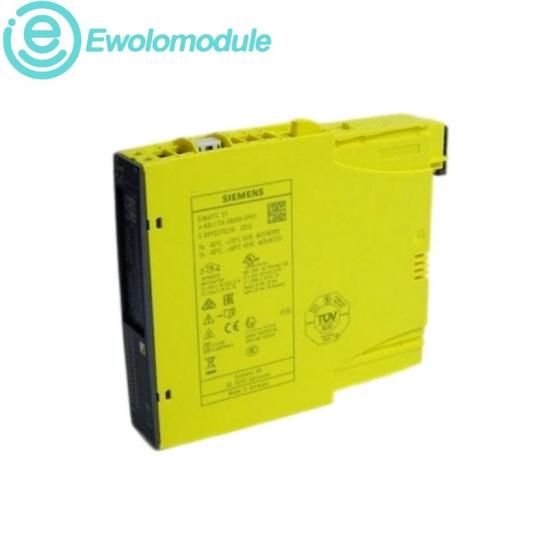

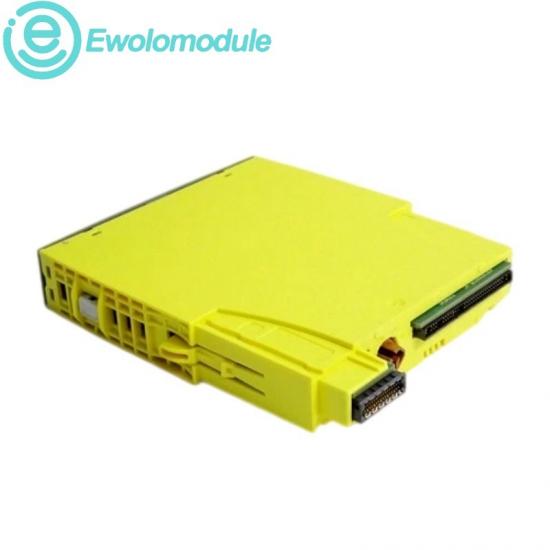

SIMATIC ET 200SP HA DI 32x24VDC HA Digital Input Module

6DL1131-6BL00-0PH1

PRODUCT IDENTITY

A 32-channel 24 V DC digital input module for high-availability SIMATIC ET 200SP HA distributed I/O stations.

☎+86 17359287459 ✉sales9@apterpower.com

SPECIFICATIONS • OFFICIAL PRODUCT DATA

Diagnostics, protection and installation

DIAGNOSTIC & PROTECTION

Channel-level diagnostics support rapid localization of field-side input faults

Module and channel status information is available to the ET 200SP HA station

High-availability architecture supports reliable process signal acquisition

INSTALLATION & UPGRADE

Install on the specified H1/P0 terminal block within a SIMATIC ET 200SP HA station

Wire thirty-two 24 V DC digital input channels according to the station documentation

Commission and parameterize the module through the engineering system

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

DI 32x24VDC HA

SYSTEM

SIMATIC ET 200SP HA

INPUTS

32 digital inputs

INPUT VOLTAGE

24 V DC

TERMINAL BLOCK

H1/P0

CONFORMANCE CLASS

CC00

DIAGNOSTICS

Channel diagnostics

APPLICATION

High-availability distributed I/O

RECOMMAND • APPLICATION CONTEXT

Industry relevance and application scope

RELATED INDUSTRIES

Chemical processing, oil and gas, power generation, water treatment and other high-availability process plants.

APPLICATION SCOPE

Reliable acquisition of 24 V DC digital field signals in SIMATIC ET 200SP HA distributed I/O systems.
