SIEMENS ARTICLE NUMBER 6DL1132-6BH00-0PH1	PRODUCT DETAILS

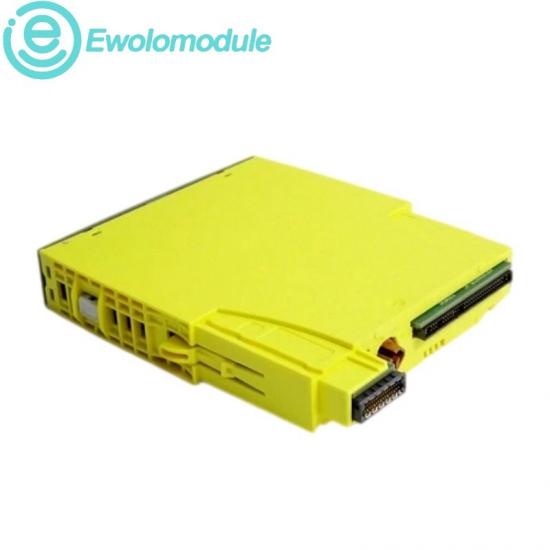

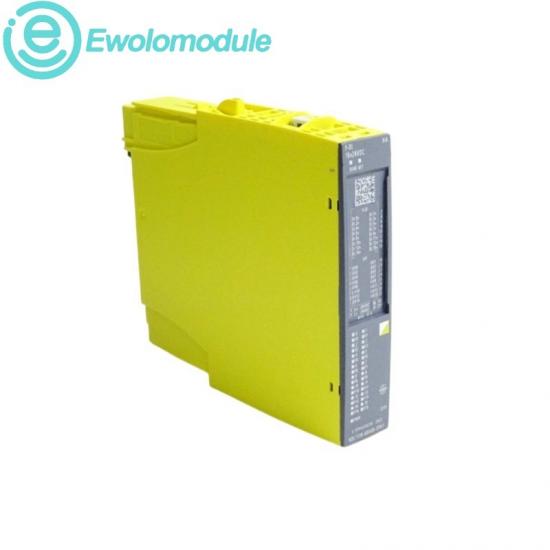

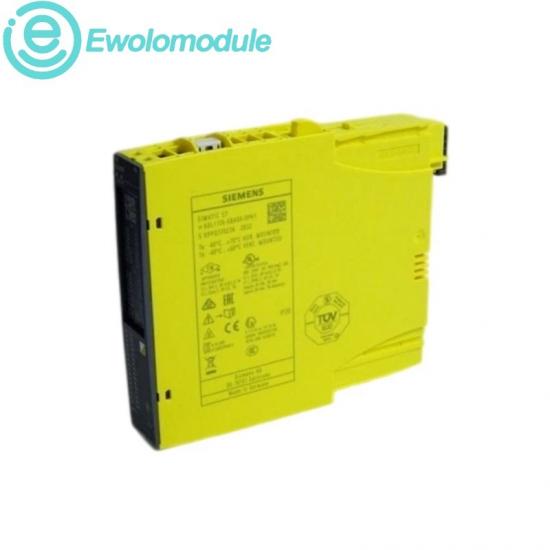

	OFFICIAL PRODUCT NAME SIMATIC ET 200SP HA DQ 16x24 V DC Output Module High-availability digital output module with 16 source outputs at 24 V DC and 0.5 A per channel, including channel diagnostics and redundancy support.

Warranty
One year

Availability
In stock

Tel
+86 17359287459

Email
sales9@apterpower.com

TECHNICAL DATA

PERFORMANCE & FIRMWARE

DIGITAL OUTPUTS 16 source outputs	MODULE CURRENT Up to 8 A	CHANNEL CURRENT 0.5 A	SUPPLY VOLTAGE 24 V DC
OUTPUT DELAY 50 µs on	SHORT CIRCUIT Protected	REDUNDANCY With M1 terminal block	OPERATING TEMPERATURE -40 to +70 °C

PERFORMANCE & EFFICIENCY

Sixteen 0.5 A source outputs deliver dense field control with fast switching and channel-level diagnostics. Redundant operation and substitute values support controlled behavior in high-availability process systems.

FIRMWARE & UPDATES

Firmware updates are supported for the documented V1.0 module platform. Use compatible ET 200SP HA device files and preserve PCS 7 or TIA Portal channel diagnostics, substitute values and redundancy parameters before service.

BRAND & APPLICATIONS

BRAND CHARACTERISTICS

Siemens high-availability ET 200SP HA digital I/O; channel diagnostics and short-circuit protection; redundant process-control integration.

APPLICATION FIELDS

Process valves and solenoids; chemical and energy plants; water-treatment outputs; high-availability PCS 7 field-control cabinets.
