PRODUCT DETAILS / OFFICIAL IDENTITY

SiemensSIMATIC ET 200SP HA

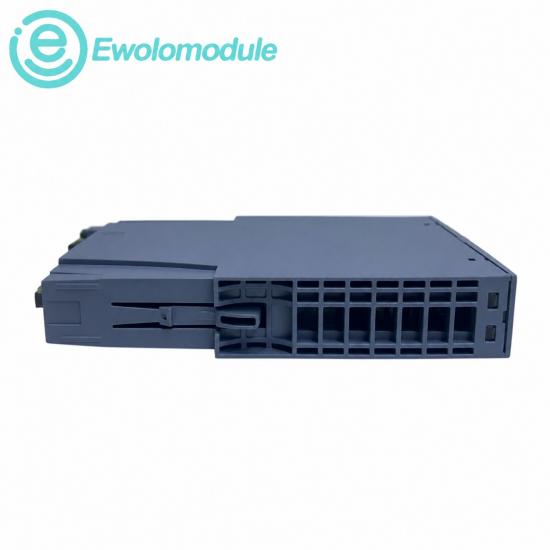

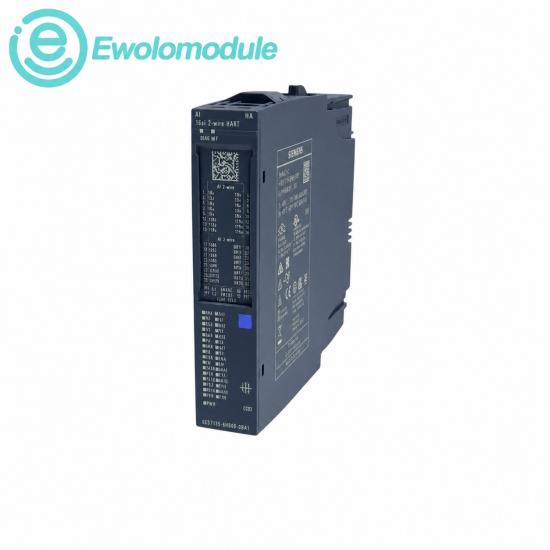

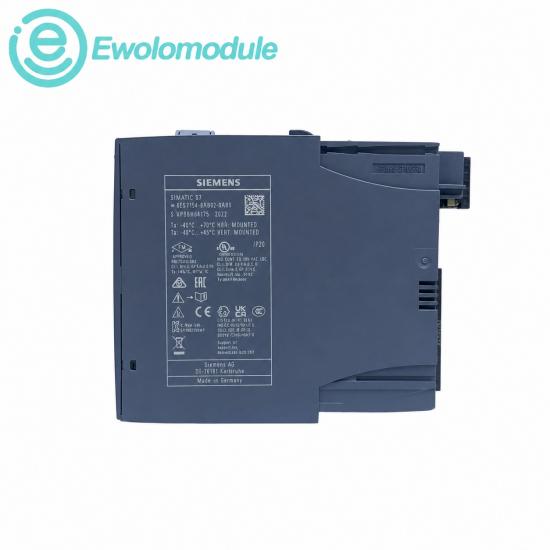

6DL1134-6TH00-0PH1 SIMATIC ET 200SP HA AI 16xI 2-Wire HART Analog Input Module

Siemens 6DL1134-6TH00-0PH1 is an ET 200SP HA module for acquiring analog process-instrument signals.

BRANDSiemens

SERIESSIMATIC ET 200SP HA

CONDITIONNew Original

WARRANTYOne year

IN STOCK4 pcs

Official data source: Siemens ET 200SP HA AI 16xI 2-wire HART HA Equipment Manual and official product data

02 / SPECIFICATIONS

Verified configuration and system role

OFFICIAL TECHNICAL DATA

Manufacturer	Siemens	Article number	6DL1134-6TH00-0PH1
Product designation	AI 16xI 2-wire HART HA	Analog inputs	16
Signal type	4–20 mA, 2-wire HART	Resolution / accuracy	16 bit / ±0.1%
Rated supply	24 V DC	Operating range	-40 to +70°C horizontal

PRODUCT DESCRIPTION

Siemens 6DL1134-6TH00-0PH1 is a high-availability ET 200SP HA analog input module with sixteen 4–20 mA two-wire HART channels for process instrumentation.

Product positioning	High-density HART analog input acquisition for distributed process-control systems.
Suffix meaning	6TH00 identifies the 16-channel two-wire HART input function; 0PH1 is the documented delivery version.
System connection	Installs on ET 200SP HA terminal blocks and integrates through SIMATIC PCS 7, PCS neo, or TIA Portal.

THREE PRODUCT FEATURES

Sixteen HART inputsAcquires sixteen 4–20 mA two-wire process signals with HART.

Process-system integrationSupports ET 200SP HA engineering in Siemens process platforms.

Channel diagnosticsProvides channel-level monitoring for plant maintenance.
